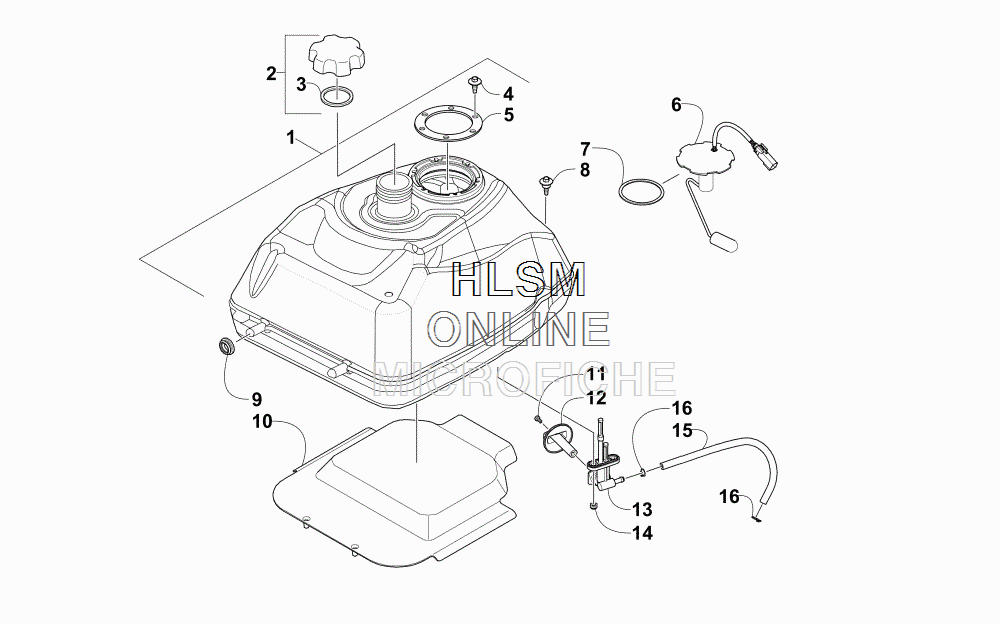

GAS TANK ASSEMBLY для Arctic Cat ALTERRA 400 RED [A2016KAG4BUSR] - 2016 года выпуска
-
№АртикулНазвание
-
13306-406 TANK, FUEL - ASSEMBLY (INC. 2-5)TANK, FUEL - ASSEMBLY (INC. 2-5)
-
23306-297 ...CAP, GAS TANK (INC. 3)...CAP, GAS TANK (INC. 3)
-
33306-298 ......GASKET, GAS TANK CAP......GASKET, GAS TANK CAP
-
43306-300 ...BOLT, WASHER - 5 X 16...BOLT, WASHER - 5 X 16
-
53306-299 ...PLATE, RETAINING...PLATE, RETAINING
-
63313-852 SENSOR, FUEL LEVELSENSOR, FUEL LEVEL
-
73313-845 SEALSEAL
-
80423-732 SCREW, SHOULDERSCREW, SHOULDER
-
90423-460 GROMMETGROMMET
-
103313-833 SHIELD, HEATSHIELD, HEAT
-
113307-151 SCREW, PANSCREW, PAN
-
123307-150 KNOB, GAS TANK VALVEKNOB, GAS TANK VALVE
-
133307-149 VALVE, FUELVALVE, FUEL
-
143304-431 NUT, LOCKNUT, LOCK
-
153313-288 HOSE, GASLINE (INC. 16)HOSE, GASLINE (INC. 16)
-
163313-684 ...CLAMP, HOSE...CLAMP, HOSE
