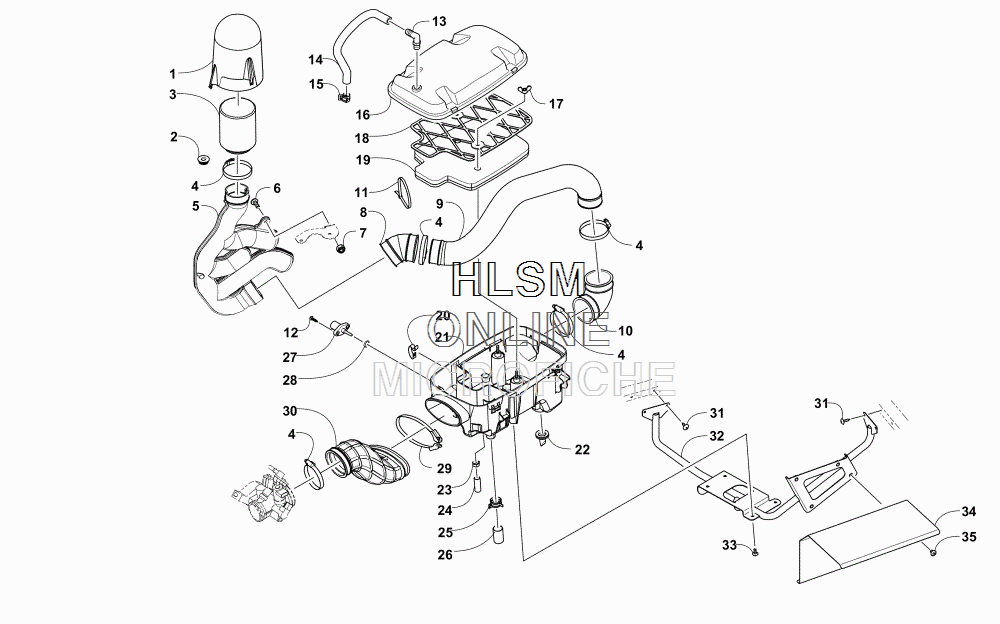

AIR INTAKE ASSEMBLY для Arctic Cat HDX 700 XT INTERNATIONAL CAMO [U2016R6T1POSH] - 2016 года выпуска
-
№АртикулНазвание
-
11470-022 FILTER COVERFILTER COVER
-
20423-678 GROMMETGROMMET
-
30470-834 FILTER, INTAKEFILTER, INTAKE
-
40423-019 CLAMPCLAMP
-
50513-058 DUCT, INTAKEDUCT, INTAKE
-
68476-825 SCREW, MACHINESCREW, MACHINE
-
78427-802 NUT, LOCKNUT, LOCK
-
80413-324 BOOT, INTAKEBOOT, INTAKE
-
91470-017 DUCT, INTAKEDUCT, INTAKE
-
100413-098 BOOT, AIR-INBOOT, AIR-IN
-
110123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
-
120423-342 SCREW, SELF-TAPPING - .1875 X .75SCREW, SELF-TAPPING - .1875 X .75
-
130470-881 FITTING, ELBOWFITTING, ELBOW
-
140410-226 HOSE, VENTHOSE, VENT
-
151623-281 CLAMP, HOSECLAMP, HOSE
-
160470-861 COVER, AIR INTAKECOVER, AIR INTAKE
-
172623-153 NUT, WINGNUT, WING
-
181470-030 SCREEN, AIR FILTERSCREEN, AIR FILTER
-
191470-029 FILTER, AIRFILTER, AIR
-
200423-455 CLIP, SPRINGCLIP, SPRING
-
210570-395 HOUSING, AIR INTAKEHOUSING, AIR INTAKE
-
220470-442 VALVE, AIR CLEANERVALVE, AIR CLEANER
-
230610-563 CLAMP, HOSECLAMP, HOSE
-
240470-863 CAP, DRAINCAP, DRAIN
-
251623-287 CLAMP, HOSECLAMP, HOSE
-
260423-766 CAP, DRAINCAP, DRAIN
-
270430-055 SENSOR, AIR TEMPERATURE (INC. 28)SENSOR, AIR TEMPERATURE (INC. 28)
-
285507-224 ...O-RING...O-RING
-
291423-074 CLAMPCLAMP
-
301470-036 BOOT, INTAKEBOOT, INTAKE
-
310623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
322516-706 MOUNT, AIR BOX - PAINTED (BLACK)MOUNT, AIR BOX - PAINTED (BLACK)
-
338468-612 SCREW, MACHINESCREW, MACHINE
-
340470-908 SHIELD, HEATSHIELD, HEAT
-
358477-610 SCREW, MACHINESCREW, MACHINE
