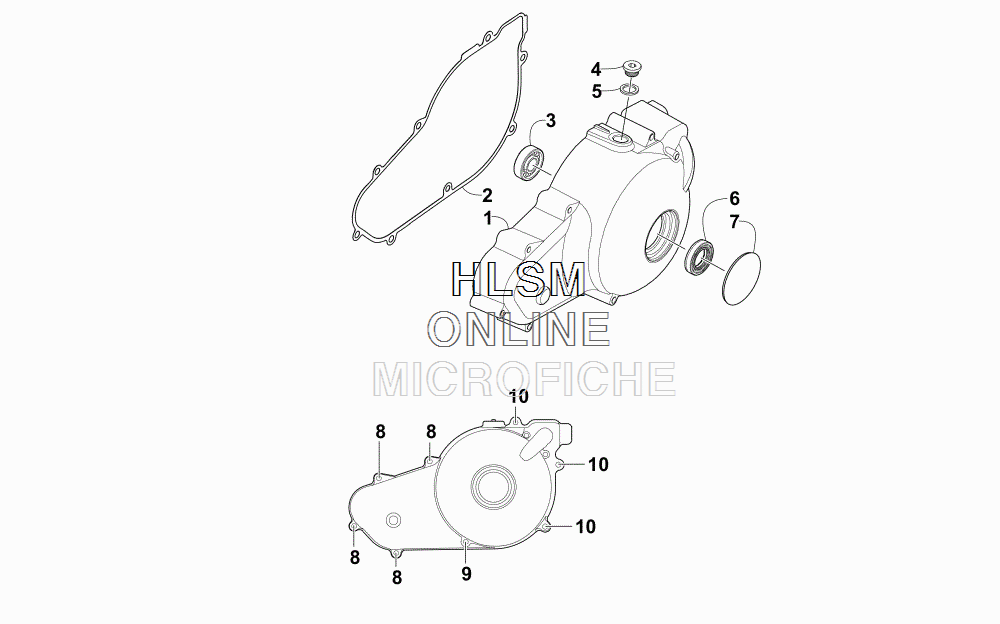

MAGNETO SIDE ENGINE COVERS для Arctic Cat PROWLER 1000 XT BLACK/GREEN INTERNATIONAL [U2016R2W1POSP] - 2016 года выпуска
-
№АртикулНазвание
-
10806-151 COVER, MAGNETOCOVER, MAGNETO
-
20830-132 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
30832-010 BEARINGBEARING
-
40826-155 PLUGPLUG
-
50830-015 WASHER, CRUSHWASHER, CRUSH
-
60830-176 SEAL, CAN - 47 X 16 X 5.5SEAL, CAN - 47 X 16 X 5.5
-
70806-066 CAP, MAGNETO COVERCAP, MAGNETO COVER
-
88468-650 SCREW, MACHINESCREW, MACHINE
-
98468-695 SCREW, MACHINESCREW, MACHINE
-
108468-665 SCREW, MACHINESCREW, MACHINE
