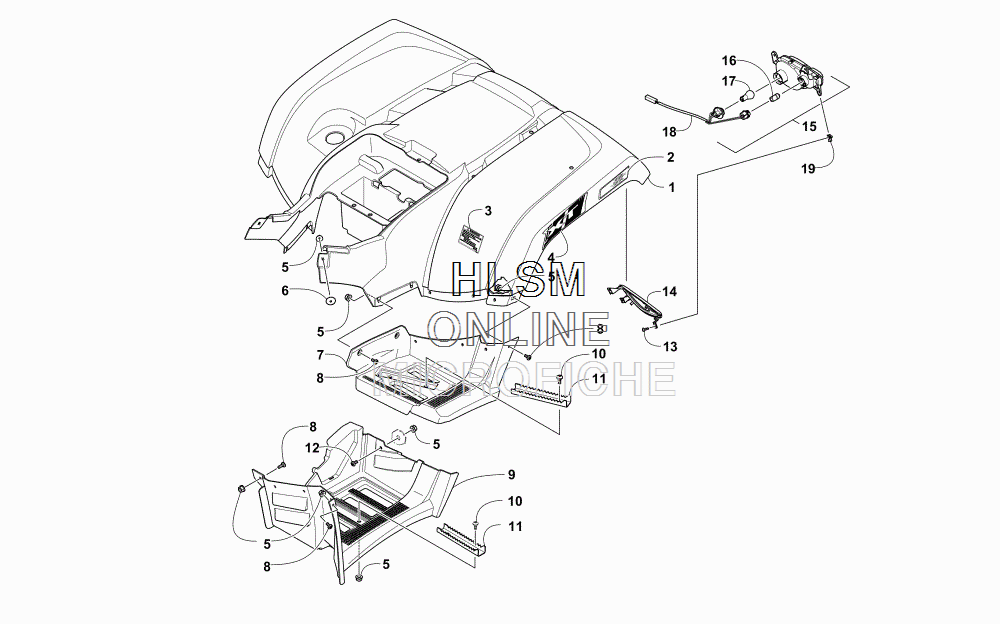

REAR BODY PANEL AND FOOTWELL ASSEMBLIES для Arctic Cat TRV 1000 XT L7E RED [A2016TGW1P7EE] - 2016 года выпуска
-
№АртикулНазвание
-
14506-956 FENDER, REAR - ASSEMBLY - RED (INC. 14)FENDER, REAR - ASSEMBLY - RED (INC. 14)
-
21411-592 DECAL, REFLECTOR - RIGHTDECAL, REFLECTOR - RIGHT
-
21411-593 DECAL, REFLECTOR - LEFTDECAL, REFLECTOR - LEFT
-
32411-830 DECAL, WARNING - TIRE PRESSUREDECAL, WARNING - TIRE PRESSURE
-
45411-414 DECAL, "XT"DECAL, "XT"
-
45411-415 DECAL, "XT"DECAL, "XT"
-
58427-602 NUT, LOCKNUT, LOCK
-
60423-101 SCREW, SHOULDERSCREW, SHOULDER
-
72406-042 FOOTWELL, REAR - RIGHTFOOTWELL, REAR - RIGHT
-
72406-043 FOOTWELL, REAR - LEFTFOOTWELL, REAR - LEFT
-
80423-419 SCREW, MACHINESCREW, MACHINE
-
92506-856 FOOTWELL - RIGHTFOOTWELL - RIGHT
-
92506-857 FOOTWELL - LEFTFOOTWELL - LEFT
-
100423-355 SCREW, SHOULDERSCREW, SHOULDER
-
115506-497 FOOTPEG - BLACKFOOTPEG - BLACK
-
128477-620 SCREW, MACHINESCREW, MACHINE
-
138476-516 SCREW, MACHINESCREW, MACHINE
-
140409-112 BEZEL, TAILLIGHT - RIGHTBEZEL, TAILLIGHT - RIGHT
-
140409-113 BEZEL, TAILLIGHT - LEFTBEZEL, TAILLIGHT - LEFT
-
153313-392 TAILLIGHT ASSEMBLY - RIGHT (INC. ONE NO. 16-17 AND 18)TAILLIGHT ASSEMBLY - RIGHT (INC. ONE NO. 16-17 AND 18)
-
153313-393 TAILLIGHT ASSEMBLY - LEFT (INC. ONE NO. 16-17 AND 18)TAILLIGHT ASSEMBLY - LEFT (INC. ONE NO. 16-17 AND 18)
-
163313-506 ...BULB, TURN SIGNAL...BULB, TURN SIGNAL
-
173303-849 ...BULB, TAILLIGHT...BULB, TAILLIGHT
-
193304-061 NUT CLIP 5 MMNUT CLIP 5 MM
