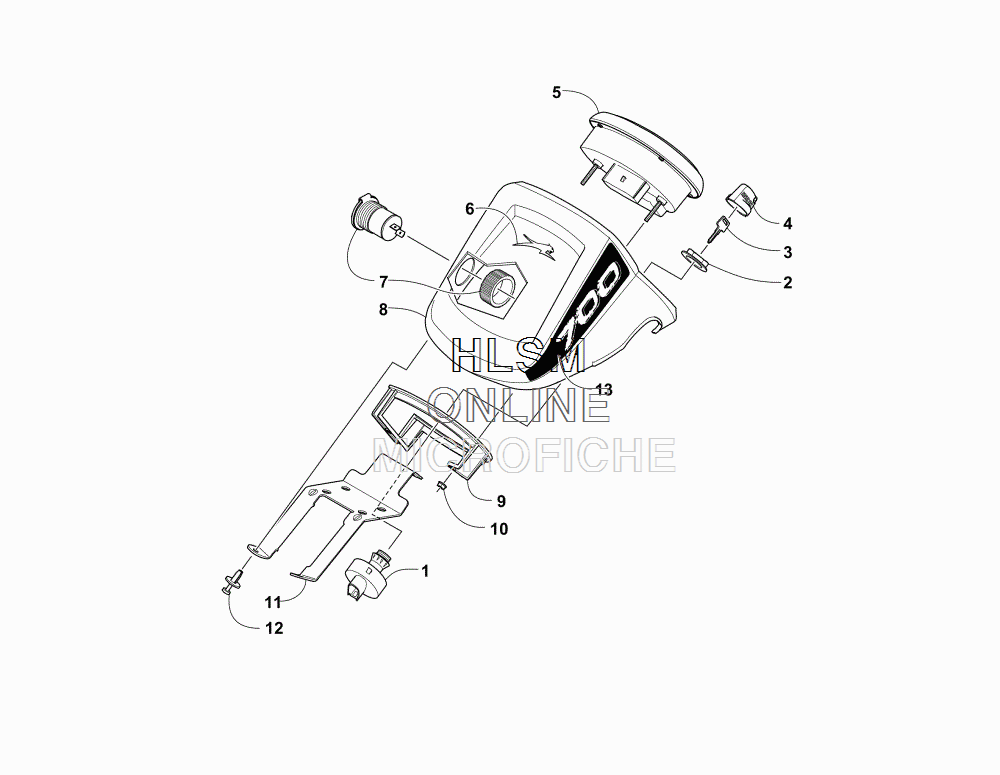

INSTRUMENT POD ASSEMBLY для Arctic Cat TRV 700 EPS SE BLACK INTERNATIONAL [A2016TCT1POSH] - 2016 года выпуска
-
№АртикулНазвание
-
10430-090 SWITCH, IGNITION - ASSEMBLY (INC. 2-4)SWITCH, IGNITION - ASSEMBLY (INC. 2-4)
-
20430-050 ...NUT, RETAINING...NUT, RETAINING
-
30430-042 ...KEY, IGNITION - Y...KEY, IGNITION - Y
-
30430-043 ...KEY, IGNITION - Z...KEY, IGNITION - Z
-
40430-054 ...COVER, KEY...COVER, KEY
-
50520-231 GAUGE, LCDGAUGE, LCD
-
64411-479 DECAL, AIRCATDECAL, AIRCAT
-
70641-897 OUTLET, ACCESSORY - 12VOUTLET, ACCESSORY - 12V
-
80505-590 POD, INSTRUMENT - (BLACK/BLACK)POD, INSTRUMENT - (BLACK/BLACK)
-
90420-065 BRACKET, RETAININGBRACKET, RETAINING
-
100423-493 NUT W/WASHERNUT W/WASHER
-
112506-470 BRACKET, MOUNTING - INSTRUMENT PODBRACKET, MOUNTING - INSTRUMENT POD
-
120423-535 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
135411-418 DECAL, "700" - RIGHT - (BLACK)DECAL, "700" - RIGHT - (BLACK)
-
135411-419 DECAL, "700" - LEFT - (BLACK)DECAL, "700" - LEFT - (BLACK)
