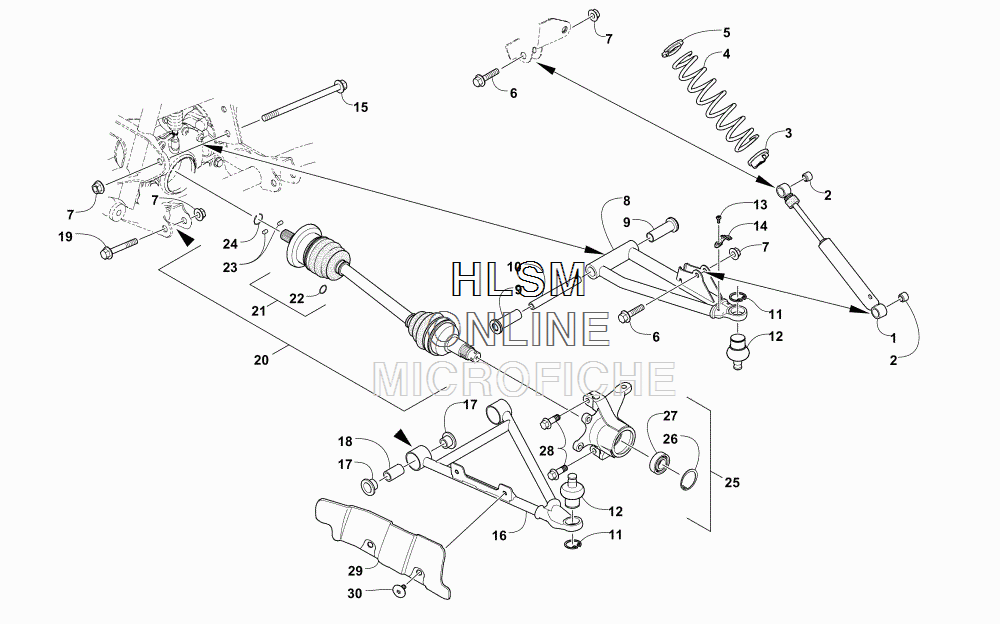

FRONT SUSPENSION ASSEMBLY для Arctic Cat TRV 700 EPS SE L7E BLACK [A2016TCT1P7EP] - 2016 года выпуска
-
№АртикулНазвание
-
10403-209 SHOCK ABSORBER (INC. 2)SHOCK ABSORBER (INC. 2)
-
20403-182 ...BUSHING...BUSHING
-
30403-395 CAM, ADJUSTER - SPRINGCAM, ADJUSTER - SPRING
-
41503-054 SPRING, SUSPENSION - TEAM ARCTIC GREENSPRING, SUSPENSION - TEAM ARCTIC GREEN
-
51603-889 RETAINER, SPRINGRETAINER, SPRING
-
68409-040 SCREW, CAPSCREW, CAP
-
70423-744 NUT, LOCKNUT, LOCK
-
80503-416 A-ARM, FRONT UPPER - RIGHT - BLACK - ASSEMBLY (INC. 9-12)A-ARM, FRONT UPPER - RIGHT - BLACK - ASSEMBLY (INC. 9-12)
-
80503-417 A-ARM, FRONT UPPER - LEFT - BLACK - ASSEMBLY (INC. 9-12)A-ARM, FRONT UPPER - LEFT - BLACK - ASSEMBLY (INC. 9-12)
-
90403-289 ...BUSHING, UPPER A-ARM SUSPENSION...BUSHING, UPPER A-ARM SUSPENSION
-
100403-439 ...AXLE...AXLE
-
110423-009 ...CLIP, BALL JOINT...CLIP, BALL JOINT
-
120405-483 ...BALL JOINT...BALL JOINT
-
130423-946 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
141502-594 CLAMP, ROUTINGCLAMP, ROUTING
-
150423-334 SCREW, CAPSCREW, CAP
-
160503-376 A-ARM, FRONT LOWER - RIGHT - ASSEMBLY (BLACK) (INC. 17-18 AND TWO NO. 11-12)A-ARM, FRONT LOWER - RIGHT - ASSEMBLY (BLACK) (INC. 17-18 AND TWO NO. 11-12)
-
160503-377 A-ARM, FRONT LOWER - LEFT - ASSEMBLY (BLACK) (INC. 17-18 AND TWO NO. 11-12)A-ARM, FRONT LOWER - LEFT - ASSEMBLY (BLACK) (INC. 17-18 AND TWO NO. 11-12)
-
170403-409 ...BUSHING...BUSHING
-
180403-438 ...COLLAR...COLLAR
-
198409-075 SCREW, CAPSCREW, CAP
-
202502-352 KIT, HALFSHAFT (INC. 21-24)KIT, HALFSHAFT (INC. 21-24)
-
212436-111 ...REPAIR KIT, BOOT (INC. 22)...REPAIR KIT, BOOT (INC. 22)
-
221441-988 ......CLIP, RETAINING......CLIP, RETAINING
-
231402-885 ...PIN, DETENT...PIN, DETENT
-
241402-889 ...CLIP, RETAINING...CLIP, RETAINING
-
250505-576 KNUCKLE, STEERING - RIGHT - ASSEMBLY (INC. 26-27)KNUCKLE, STEERING - RIGHT - ASSEMBLY (INC. 26-27)
-
250505-577 KNUCKLE, STEERING - LEFT - ASSEMBLY (INC. 26-27)KNUCKLE, STEERING - LEFT - ASSEMBLY (INC. 26-27)
-
260423-423 ...RING, RETAINING...RING, RETAINING
-
271402-809 ...BEARING...BEARING
-
280423-998 SCREW, SHOULDERSCREW, SHOULDER
-
291406-034 GUARD, BOOT - AXLE - RIGHTGUARD, BOOT - AXLE - RIGHT
-
291406-035 GUARD, BOOT - AXLE - LEFTGUARD, BOOT - AXLE - LEFT
-
300423-545 SCREW, SHOULDERSCREW, SHOULDER
