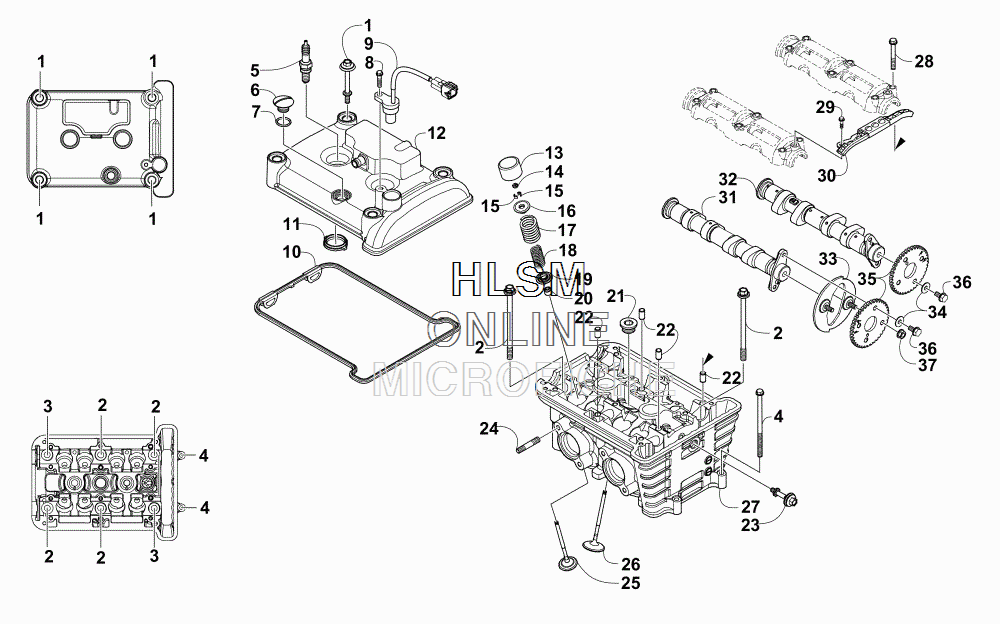

CYLINDER HEAD AND CAMSHAFT/VALVE ASSEMBLY для Arctic Cat WILDCAT SPORT RED [U2016W6T4COSR] - 2016 года выпуска
-
№АртикулНазвание
-
13306-983 BOLT ASSY HEAD COVERBOLT ASSY HEAD COVER
-
23306-981 BOLT WASHER 10X160BOLT WASHER 10X160
-
33306-982 BOLT WASHER 10X170BOLT WASHER 10X170
-
43306-988 BOLT FLANGE 6X120BOLT FLANGE 6X120
-
50217-813 PLUG, SPARK - CR8EBPLUG, SPARK - CR8EB
-
63304-012 CAPCAP
-
73304-099 O-RINGO-RING
-
83303-382 BOLT, FLANGEBOLT, FLANGE
-
93306-821 SENSORSENSOR
-
103306-930 SEALSEAL
-
113307-082 SEALSEAL
-
123306-978 COVERCOVER
-
133306-938 LIFTER, VALVELIFTER, VALVE
-
143306-942 SHIM T= 1.80SHIM T= 1.80
-
143306-943 SHIM T= 1.85SHIM T= 1.85
-
143306-944 SHIM T= 1.90SHIM T= 1.90
-
143306-945 SHIM T= 1.95SHIM T= 1.95
-
143306-946 SHIM T= 2.00SHIM T= 2.00
-
143306-947 SHIM T= 2.05SHIM T= 2.05
-
143306-948 SHIM T= 2.10SHIM T= 2.10
-
143306-949 SHIM T= 2.15SHIM T= 2.15
-
143306-950 SHIM T= 2.20SHIM T= 2.20
-
143306-951 SHIM T= 2.25SHIM T= 2.25
-
143306-952 SHIM T= 2.30SHIM T= 2.30
-
143306-953 SHIM T= 2.35SHIM T= 2.35
-
143306-954 SHIM T= 2.40SHIM T= 2.40
-
143306-955 SHIM T= 2.45SHIM T= 2.45
-
143306-956 SHIM T= 2.50SHIM T= 2.50
-
143306-957 SHIM T= 2.55SHIM T= 2.55
-
143306-958 SHIM T= 2.60SHIM T= 2.60
-
143306-959 SHIM T= 2.65SHIM T= 2.65
-
143306-960 SHIM T= 2.70SHIM T= 2.70
-
143306-961 SHIM T= 2.75SHIM T= 2.75
-
143306-962 SHIM T= 2.80SHIM T= 2.80
-
143306-963 SHIM T= 2.85SHIM T= 2.85
-
143306-964 SHIM T= 2.90SHIM T= 2.90
-
143306-965 SHIM T= 2.95SHIM T= 2.95
-
143306-966 SHIM T= 3.00SHIM T= 3.00
-
153306-980 COTTER VALVECOTTER VALVE
-
163306-941 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
173306-939 SPRING, VALVE - OUTERSPRING, VALVE - OUTER
-
183306-940 SPRING, VALVE - INNERSPRING, VALVE - INNER
-
193306-979 SEAT, VALVE - SPRINGSEAT, VALVE - SPRING
-
203306-968 SEAL, VALVE STEMSEAL, VALVE STEM
-
213306-986 BOLT SEALING 18MMBOLT SEALING 18MM
-
223303-341 PIN, DOWELPIN, DOWEL
-
233306-984 BOLT ASSY HEAD COVERBOLT ASSY HEAD COVER
-
243306-987 BOLT, STUDBOLT, STUD
-
253306-937 VALVE, EXHAUSTVALVE, EXHAUST
-
263306-936 VALVE, INTAKEVALVE, INTAKE
-
273306-928 HEAD, CYLINDERHEAD, CYLINDER
-
283303-387 BOLT FLANGE SH 6X45BOLT FLANGE SH 6X45
-
293303-381 BOLT FLANGE SH 6X12BOLT FLANGE SH 6X12
-
303306-935 GUIDE, TENSIONER - UPPERGUIDE, TENSIONER - UPPER
-
313306-932 SHAFT, CAM - EXHAUSTSHAFT, CAM - EXHAUST
-
323306-931 SHAFT, CAM - INTAKESHAFT, CAM - INTAKE
-
333306-934 ENCODER PHASE PLATEENCODER PHASE PLATE
-
340828-083 WASHERWASHER
-
353306-933 SPROCKET, CAM SHAFTSPROCKET, CAM SHAFT
-
363306-985 BOLT, KNOCKBOLT, KNOCK
-
373304-654 NUT, FLANGE - 6 MMNUT, FLANGE - 6 MM
