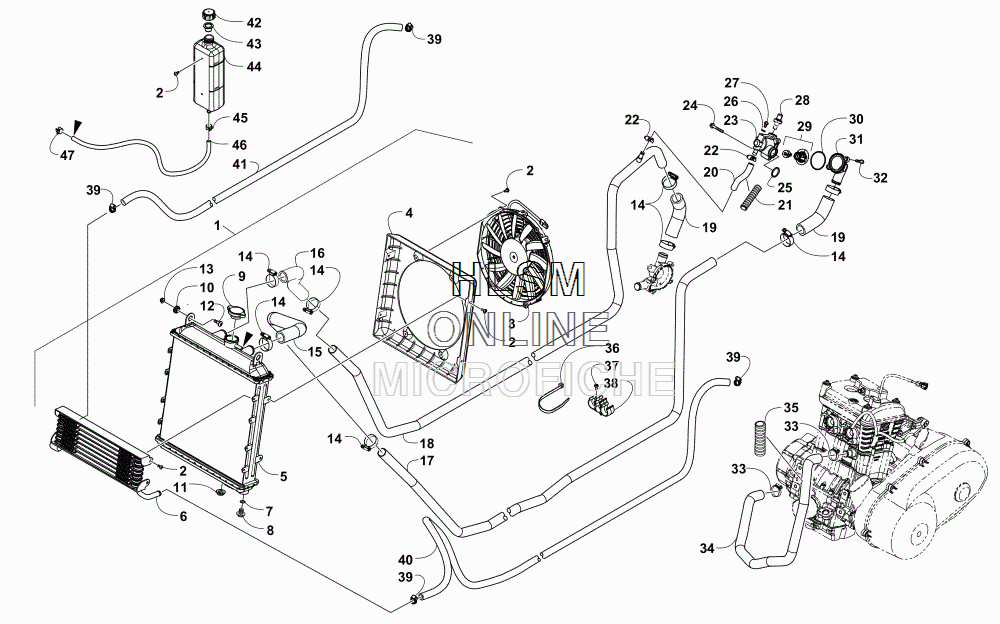

COOLING ASSEMBLY для Arctic Cat WILDCAT SPORT XT EPS GREEN [U2016W7T2PUSX] - 2016 года выпуска
-
№АртикулНазвание
-
10513-056 COOLER, RADIATOR - W/OIL - ASSEMBLY (INC. 2-10)COOLER, RADIATOR - W/OIL - ASSEMBLY (INC. 2-10)
-
28475-512 ...SCREW, MACHINE...SCREW, MACHINE
-
30413-123 ...FAN, RADIATOR...FAN, RADIATOR
-
40413-327 ...SHROUD, FAN...SHROUD, FAN
-
50513-057 ...RADIATOR...RADIATOR
-
60413-322 ...COOLER, OIL...COOLER, OIL
-
71602-213 ...O-RING...O-RING
-
80413-195 ...PLUG, RADIATOR...PLUG, RADIATOR
-
90413-255 ...CAP, RADIATOR...CAP, RADIATOR
-
100423-030 ...GROMMET...GROMMET
-
110423-028 BUSHINGBUSHING
-
120423-356 SCREW, SHOULDERSCREW, SHOULDER
-
138427-602 NUT, LOCKNUT, LOCK
-
140423-496 CLAMP, HOSECLAMP, HOSE
-
150410-264 HOSE, COOLANT - COOLANT/RADIATORHOSE, COOLANT - COOLANT/RADIATOR
-
160410-265 HOSE, COOLANT - RADIATOR/COOLANTHOSE, COOLANT - RADIATOR/COOLANT
-
170413-309 PIPE, COOLANTPIPE, COOLANT
-
180513-055 PIPE, COOLANT - THERMOSTAT/RADIATORPIPE, COOLANT - THERMOSTAT/RADIATOR
-
190410-263 HOSE, COOLANTHOSE, COOLANT
-
200410-262 HOSE, BYPASSHOSE, BYPASS
-
210610-790 LOOM, COOLANT HOSE - 5 FTLOOM, COOLANT HOSE - 5 FT
-
220423-632 CLAMP, HOSECLAMP, HOSE
-
230513-052 HOUSING, THERMOSTATHOUSING, THERMOSTAT
-
248408-640 SCREW, CAPSCREW, CAP
-
253304-104 O-RINGO-RING
-
263304-049 WASHERWASHER
-
273304-186 BOLT FLANGE SH 6X10BOLT FLANGE SH 6X10
-
280824-051 SENSOR, ENGINE COOLANT TEMPERATURESENSOR, ENGINE COOLANT TEMPERATURE
-
290813-050 THERMOSTATTHERMOSTAT
-
300830-205 O-RINGO-RING
-
310808-202 COVER, HOUSING - THERMOSTATCOVER, HOUSING - THERMOSTAT
-
323303-383 BOLTBOLT
-
332623-088 CLAMP, HOSECLAMP, HOSE
-
340410-271 HOSE, COOLANTHOSE, COOLANT
-
350610-734 LOOM, COOLANT HOSELOOM, COOLANT HOSE
-
360123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
-
378061-686 RIVETRIVET
-
380413-346 CLIP, COOLANTCLIP, COOLANT
-
392623-062 CLAMP, HOSECLAMP, HOSE
-
400410-273 HOSE, OIL - #2HOSE, OIL - #2
-
410410-319 HOSE, OIL - #1HOSE, OIL - #1
-
420413-328 CAPCAP
-
430413-329 SPACERSPACER
-
440413-320 BOTTLE, OVERFLOWBOTTLE, OVERFLOW
-
451623-351 CLAMP, HOSECLAMP, HOSE
-
460410-274 HOSE, COOLANT - OVERFLOWHOSE, COOLANT - OVERFLOW
-
470124-045 CLAMP, HOSECLAMP, HOSE
