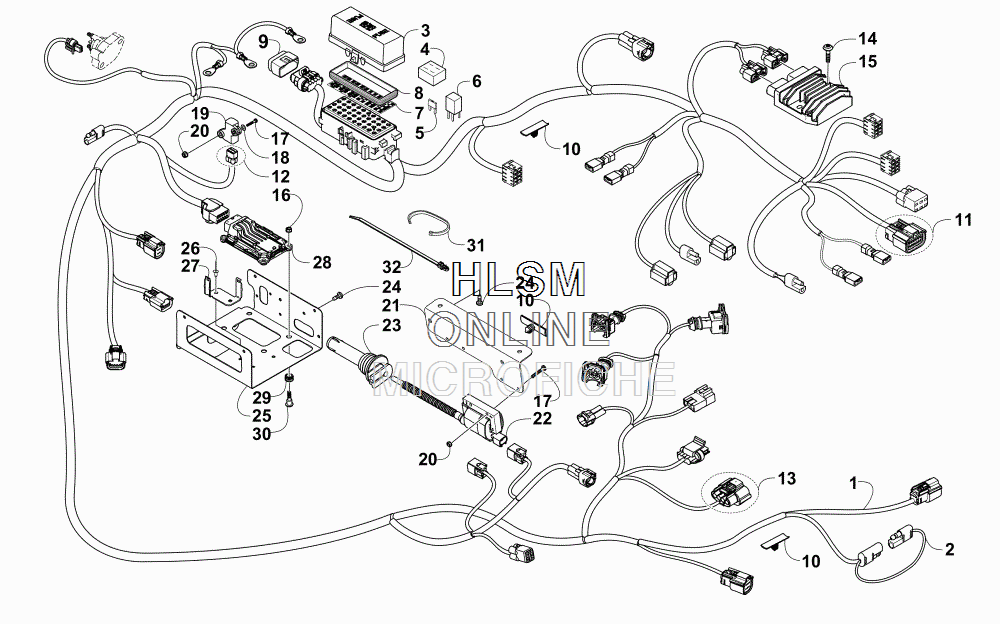

WIRING HARNESS ASSEMBLY для Arctic Cat WILDCAT TRAIL XT EPS GREEN [U2016WCT2PUSX] - 2016 года выпуска
-
№АртикулНазвание
-
10486-493 HARNESS, MAIN (INC. 2-10)HARNESS, MAIN (INC. 2-10)
-
20486-164 ...TETHER, ACCESSORY CONNECTOR...TETHER, ACCESSORY CONNECTOR
-
30430-085 ...COVER, FUSE BLOCK...COVER, FUSE BLOCK
-
40430-037 ...HOLDER, FUSE...HOLDER, FUSE
-
50430-032 ...FUSE - 10 AMP...FUSE - 10 AMP
-
50430-031 ...FUSE - 15 AMP...FUSE - 15 AMP
-
50430-030 ...FUSE - 30 AMP...FUSE - 30 AMP
-
60430-045 ...RELAY (4-PIN) - 20 AMP...RELAY (4-PIN) - 20 AMP
-
73411-964 ...DECAL, FUSE BLOCK...DECAL, FUSE BLOCK
-
80430-086 ...SEAL...SEAL
-
90430-103 ...COVER, DIAGNOSTICS CONNECTOR...COVER, DIAGNOSTICS CONNECTOR
-
100430-102 ...CLIP, ROUTING...CLIP, ROUTING
-
111436-818 REPAIR KIT, CONNECTOR - CAN GAUGEREPAIR KIT, CONNECTOR - CAN GAUGE
-
121436-416 REPAIR KIT, CONNECTOR - TILT SENSORREPAIR KIT, CONNECTOR - TILT SENSOR
-
131436-484 REPAIR KIT, CONNECTOR - 4P - MAPREPAIR KIT, CONNECTOR - 4P - MAP
-
148476-625 SCREW, MACHINESCREW, MACHINE
-
150824-072 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
160623-038 NUT W/WASHERNUT W/WASHER
-
178468-425 SCREW, MACHINESCREW, MACHINE
-
180123-802 WASHERWASHER
-
190409-064 SENSOR, TILTSENSOR, TILT
-
200423-493 NUT W/WASHERNUT W/WASHER
-
214406-315 BRACKET, COILBRACKET, COIL
-
220824-079 COIL, IGNITION - ASSEMBLY (INC. 23)COIL, IGNITION - ASSEMBLY (INC. 23)
-
230824-075 ...CAP, SPARK PLUG...CAP, SPARK PLUG
-
240423-538 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
255506-240 TRAY, ELECTRICALTRAY, ELECTRICAL
-
268060-686 RIVET - ZINCRIVET - ZINC
-
270745-388 BRACKET, MOUNTING - PDMBRACKET, MOUNTING - PDM
-
280530-142 ECMECM
-
290423-086 GROMMETGROMMET
-
301423-217 BOLT, SHOULDERBOLT, SHOULDER
-
310123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
320423-075 TIE, CABLE - PUSH-MOUNTTIE, CABLE - PUSH-MOUNT
