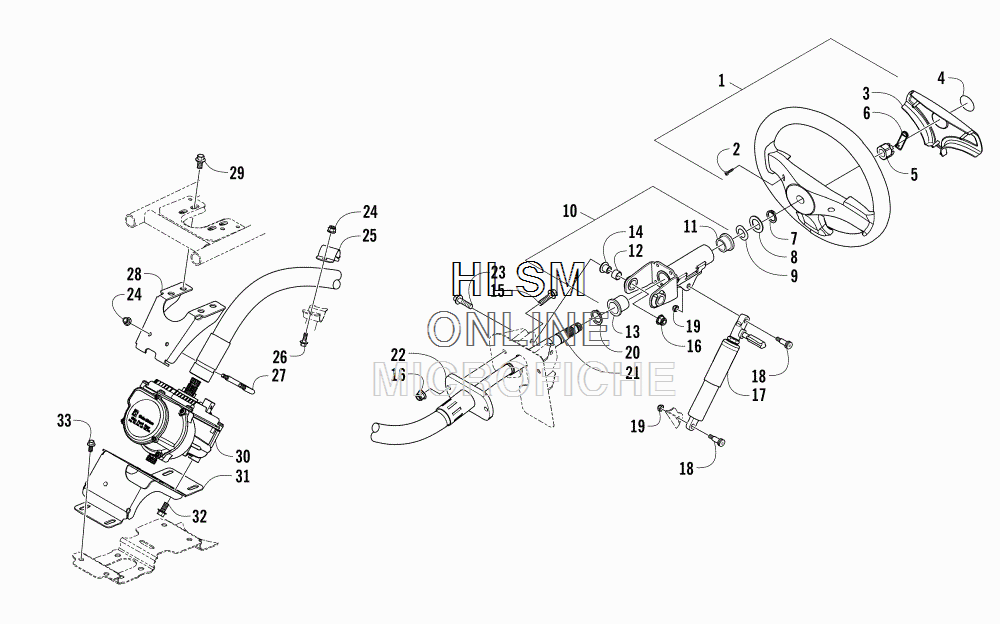

STEERING ASSEMBLY для Arctic Cat WILDCAT X INTERNATIONAL WHITE [U2016WSW1POSW] - 2016 года выпуска
-
№АртикулНазвание
-
10502-884 WHEEL, STEERING - ASSEMBLY (INC. 2-3)WHEEL, STEERING - ASSEMBLY (INC. 2-3)
-
20423-613 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
30405-239 ...CAP, STEERING WHEEL...CAP, STEERING WHEEL
-
41411-798 DECAL, CATDECAL, CAT
-
50423-884 NUTNUT
-
61423-045 CLIP, RETAININGCLIP, RETAINING
-
71423-110 RING, RETAININGRING, RETAINING
-
80828-071 WASHERWASHER
-
90423-558 WASHERWASHER
-
100505-721 BRACKET, MOUNTING - TILT STEERING (INC. 11-13)BRACKET, MOUNTING - TILT STEERING (INC. 11-13)
-
110405-472 ...BUSHING...BUSHING
-
120405-405 ...BUSHING...BUSHING
-
130405-473 ...BUSHING...BUSHING
-
140423-669 SPACERSPACER
-
158408-831 SCREW, CAPSCREW, CAP
-
168427-802 NUT, LOCKNUT, LOCK
-
170405-468 LIFT, SUPPORTLIFT, SUPPORT
-
181423-250 SCREW, SHOULDERSCREW, SHOULDER
-
190623-056 NUT, LOCKNUT, LOCK
-
201423-111 RING, RETAININGRING, RETAINING
-
210405-403 SHAFT, STEERINGSHAFT, STEERING
-
220405-506 BRACKET, MOUNTING - STEERINGBRACKET, MOUNTING - STEERING
-
238408-825 SCREW, CAPSCREW, CAP
-
248427-602 NUT, LOCKNUT, LOCK
-
250505-765 BRACKET, RETAININGBRACKET, RETAINING
-
268408-617 SCREW, CAPSCREW, CAP
-
271423-203 U-CLAMPU-CLAMP
-
280505-835 BRACKET, MOUNTINGBRACKET, MOUNTING
-
298408-816 SCREW, CAPSCREW, CAP
-
300505-956 ASSEMBLY, ELECTRONIC POWER STEERINGASSEMBLY, ELECTRONIC POWER STEERING
-
314506-619 BRACKET, MOUNTINGBRACKET, MOUNTING
-
328409-020 SCREW, CAPSCREW, CAP
-
338408-818 SCREW, CAPSCREW, CAP
