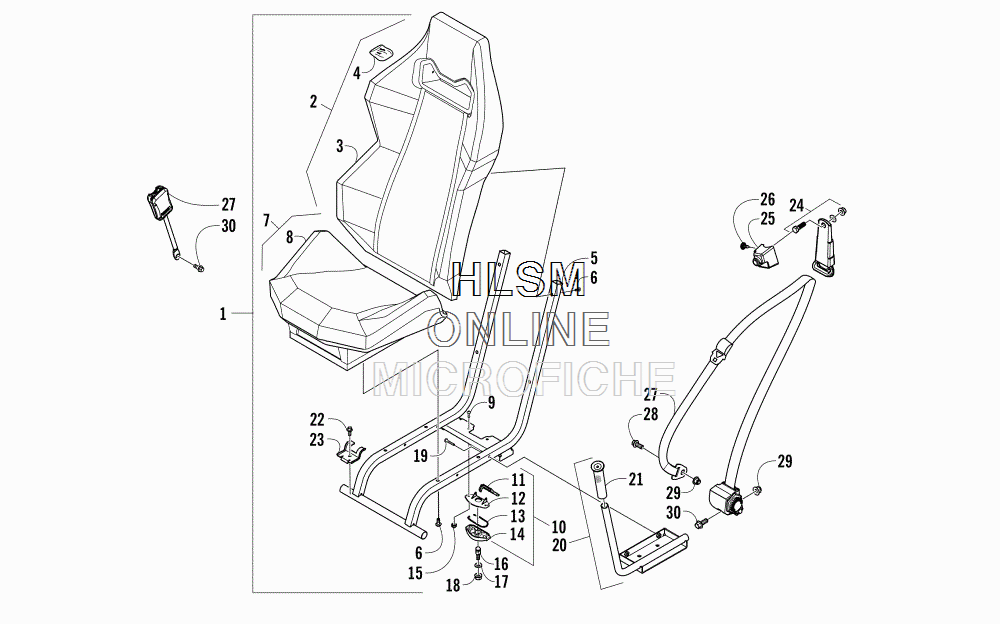

SEAT ASSEMBLY для Arctic Cat WILDCAT X LTD EPS BLACK [U2016WTW1PUSJ] - 2016 года выпуска
-
№АртикулНазвание
-
15506-070 SEAT - ASSEMBLY - BLACK (INC. 2-15)SEAT - ASSEMBLY - BLACK (INC. 2-15)
-
25506-075 ...BACK, SEAT (INC. 3-4)...BACK, SEAT (INC. 3-4)
-
35506-637 ......COVER, SEAT BACK - BLACK......COVER, SEAT BACK - BLACK
-
41423-265 ......KIT, SEAT HARDWARE......KIT, SEAT HARDWARE
-
55506-069 ...FRAME, SEAT - BLACK...FRAME, SEAT - BLACK
-
68468-617 ...SCREW, MACHINE...SCREW, MACHINE
-
75506-074 ...BASE, SEAT (INC. 8)...BASE, SEAT (INC. 8)
-
85506-636 ......COVER, BASE SEAT - BLACK......COVER, BASE SEAT - BLACK
-
98468-620 ...SCREW, MACHINE...SCREW, MACHINE
-
102706-164 ...LATCH, SEAT - ASSEMBLY (INC. 11-14)...LATCH, SEAT - ASSEMBLY (INC. 11-14)
-
112606-854 ......LEVER, SEAT LATCH......LEVER, SEAT LATCH
-
121673-635 ......COVER, LATCH......COVER, LATCH
-
130673-023 ......CLIP, SPRING......CLIP, SPRING
-
141673-634 ......BACK, LATCH......BACK, LATCH
-
150623-038 ...NUT W/WASHER...NUT W/WASHER
-
161423-254 STUD, LATCH - SEATSTUD, LATCH - SEAT
-
170423-073 WASHERWASHER
-
188424-002 NUTNUT
-
198477-635 SCREW, MACHINESCREW, MACHINE
-
205506-173 HANDLE ASSEMBLY (INC. 21)HANDLE ASSEMBLY (INC. 21)
-
214606-945 ...GRIP, HANDLEBAR...GRIP, HANDLEBAR
-
228408-821 SCREW, CAPSCREW, CAP
-
235506-078 BRACKET, HOLD-DOWNBRACKET, HOLD-DOWN
-
241423-305 SCREW, SHOULDER - ASSEMBLYSCREW, SHOULDER - ASSEMBLY
-
254406-922 COVER, SEAT BELT - RIGHTCOVER, SEAT BELT - RIGHT
-
254406-923 COVER, SEAT BELT - LEFTCOVER, SEAT BELT - LEFT
-
260623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
275506-890 BELT, SEAT - ASSEMBLYBELT, SEAT - ASSEMBLY
-
281423-182 SCREW, CAPSCREW, CAP
-
291423-184 NUT, LOCKNUT, LOCK
-
301423-183 SCREW, CAPSCREW, CAP
