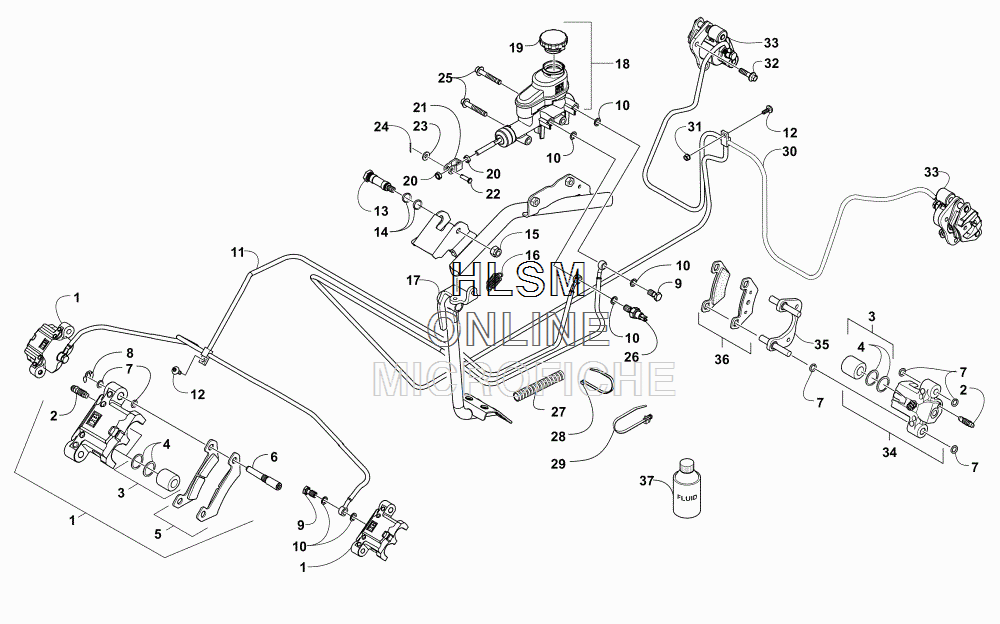

HYDRAULIC BRAKE ASSEMBLY для Arctic Cat WILDCAT X RED [U2016WSW1PUSE] - 2016 года выпуска
-
№АртикулНазвание
-
12502-030 CALIPER, BRAKE (FRONT RIGHT) (INC. 2-4)CALIPER, BRAKE (FRONT RIGHT) (INC. 2-4)
-
12502-031 CALIPER, BRAKE (FRONT LEFT) (INC. 2-4)CALIPER, BRAKE (FRONT LEFT) (INC. 2-4)
-
20502-609 ...VALVE, BLEED...VALVE, BLEED
-
30502-606 ...PISTON/SEAL SET (INC. 4)...PISTON/SEAL SET (INC. 4)
-
40502-607 ......SEAL SET......SEAL SET
-
52502-034 PAD, BRAKE - SET (BOTH FRONT)PAD, BRAKE - SET (BOTH FRONT)
-
62402-106 PIN, RETAININGPIN, RETAINING
-
70502-608 O-RING, GUIDE - SETO-RING, GUIDE - SET
-
82402-107 RING, RETAININGRING, RETAINING
-
90423-413 BOLT, BANJO-FITTINGBOLT, BANJO-FITTING
-
100423-178 WASHER, CRUSHWASHER, CRUSH
-
112402-118 HOSE, BRAKE - FRONTHOSE, BRAKE - FRONT
-
128476-616 SCREW, MACHINESCREW, MACHINE
-
130402-872 AXLEAXLE
-
141602-213 O-RINGO-RING
-
158422-002 NUT, LOCKNUT, LOCK
-
161612-178 SPRING, EXHAUSTSPRING, EXHAUST
-
172502-075 LEVER, BRAKELEVER, BRAKE
-
182502-043 CYLINDER, MASTER BRAKE - ASSEMBLY (INC. 19-21)CYLINDER, MASTER BRAKE - ASSEMBLY (INC. 19-21)
-
192502-044 ...CAP, RESERVOIR...CAP, RESERVOIR
-
200402-592 ...NUT...NUT
-
211402-520 ...CLEVIS...CLEVIS
-
221402-377 PIN, CLEVISPIN, CLEVIS
-
238050-217 WASHERWASHER
-
240117-868 PIN, COTTERPIN, COTTER
-
258408-850 SCREW, CAPSCREW, CAP
-
263313-239 SWITCH, BRAKE PRESSURESWITCH, BRAKE PRESSURE
-
270619-776 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
-
280123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
280123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
-
290423-075 TIE, CABLE - PUSH-MOUNTTIE, CABLE - PUSH-MOUNT
-
301402-955 HOSE, BRAKE - REARHOSE, BRAKE - REAR
-
310623-038 NUT W/WASHERNUT W/WASHER
-
328408-831 SCREW, CAPSCREW, CAP
-
331436-423 CALIPER, BRAKE (REAR RIGHT) (INC. 2-4, 7, AND 34-36)CALIPER, BRAKE (REAR RIGHT) (INC. 2-4, 7, AND 34-36)
-
331436-422 CALIPER, BRAKE (REAR LEFT) (INC. 2-4, 7, AND 34-36)CALIPER, BRAKE (REAR LEFT) (INC. 2-4, 7, AND 34-36)
-
341436-161 HOUSING, CALIPER - ASSEMBLY (REAR RIGHT) (INC. 2-4)HOUSING, CALIPER - ASSEMBLY (REAR RIGHT) (INC. 2-4)
-
341436-160 HOUSING, CALIPER - ASSEMBLY (REAR LEFT) (INC. 2-4)HOUSING, CALIPER - ASSEMBLY (REAR LEFT) (INC. 2-4)
-
350502-605 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
361436-420 PAD, BRAKE - SET (BOTH REAR)PAD, BRAKE - SET (BOTH REAR)
-
375639-848 FLUID, BRAKE - 12 OZFLUID, BRAKE - 12 OZ
