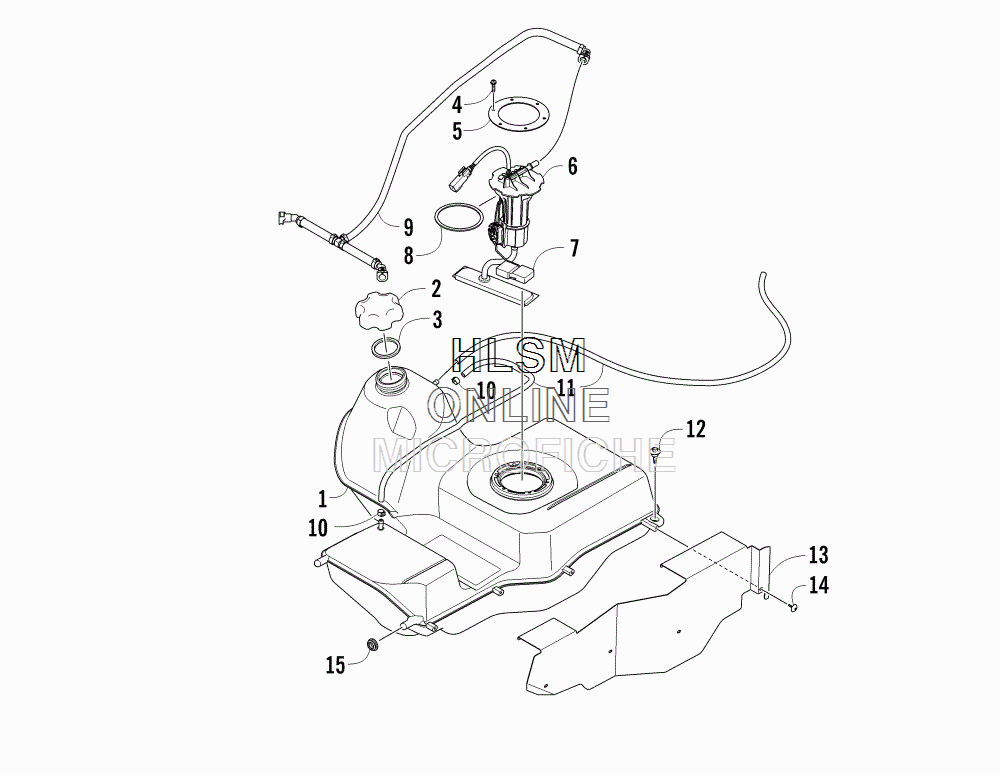

GAS TANK ASSEMBLY для Arctic Cat 1000 MUD PRO LTD EPS BLACK - 2017 года выпуска
-
№АртикулНазвание
-
10570-308 TANK, GAS - ASSEMBLY (INC. 2-5)TANK, GAS - ASSEMBLY (INC. 2-5)
-
20470-438 ...CAP, GAS TANK - ASSEMBLY (INC. 3)...CAP, GAS TANK - ASSEMBLY (INC. 3)
-
30109-733 ......SEAL, GAS TANK CAP......SEAL, GAS TANK CAP
-
40423-898 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
52670-042 ...PLATE, RETAINING - FUEL PUMP...PLATE, RETAINING - FUEL PUMP
-
60570-433 FUEL PUMP - ASSEMBLY (INC. 7-8)FUEL PUMP - ASSEMBLY (INC. 7-8)
-
72670-235 ...FLOAT...FLOAT
-
80470-838 ...SEAL...SEAL
-
90570-282 HOSE, FUEL - ASSEMBLYHOSE, FUEL - ASSEMBLY
-
100423-688 CLAMP, HOSECLAMP, HOSE
-
110410-070 HOSE - 25 FTHOSE - 25 FT
-
120423-732 SCREW, SHOULDERSCREW, SHOULDER
-
130470-822 SHIELD, HEATSHIELD, HEAT
-
140623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
150423-460 GROMMETGROMMET
