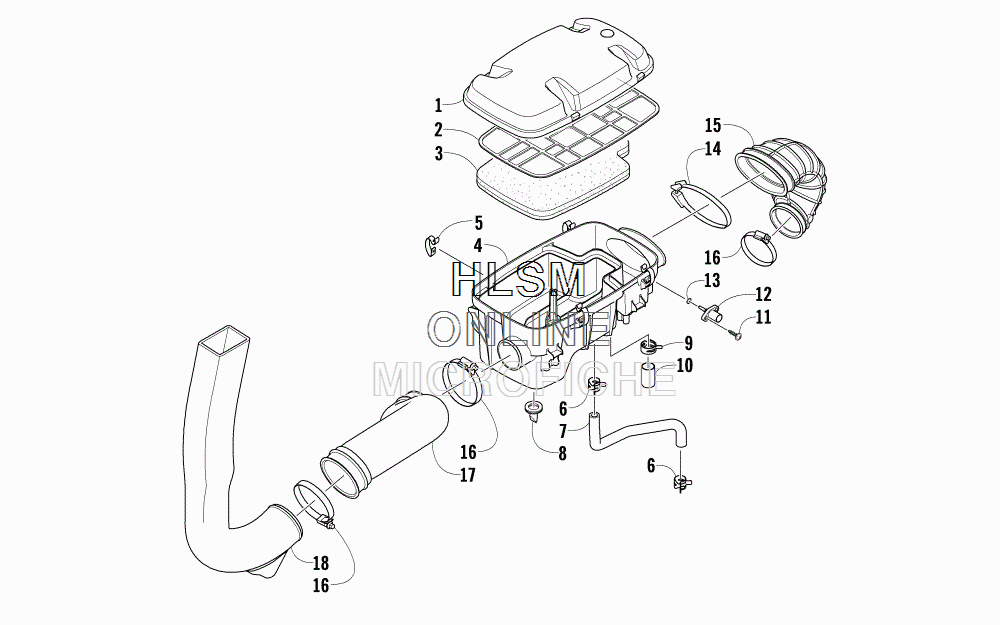

AIR INTAKE ASSEMBLY для Arctic Cat 700 MUD PRO LTD EPS BLACK - 2017 года выпуска
-
№АртикулНазвание
-
10470-877 AIR BOX, TOPAIR BOX, TOP
-
20470-560 SCREEN, AIR FILTERSCREEN, AIR FILTER
-
30470-558 FILTER, AIRFILTER, AIR
-
40470-728 HOUSING, AIR INTAKEHOUSING, AIR INTAKE
-
50423-455 CLIP, SPRINGCLIP, SPRING
-
61623-281 CLAMP, HOSECLAMP, HOSE
-
70410-172 HOSE, VENT - CRANKCASEHOSE, VENT - CRANKCASE
-
80470-858 VALVE, DRAINVALVE, DRAIN
-
91623-287 CLAMP, HOSECLAMP, HOSE
-
100423-766 CAP, DRAINCAP, DRAIN
-
110423-342 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
120430-055 SENSOR, AIR TEMPERATURE (INC. 13)SENSOR, AIR TEMPERATURE (INC. 13)
-
135507-224 ...O-RING...O-RING
-
140423-554 CLAMPCLAMP
-
150470-511 BOOT, INTAKEBOOT, INTAKE
-
160423-019 CLAMPCLAMP
-
170470-529 DUCT, AIR INTAKEDUCT, AIR INTAKE
-
180413-210 DUCT, AIR-INDUCT, AIR-IN
