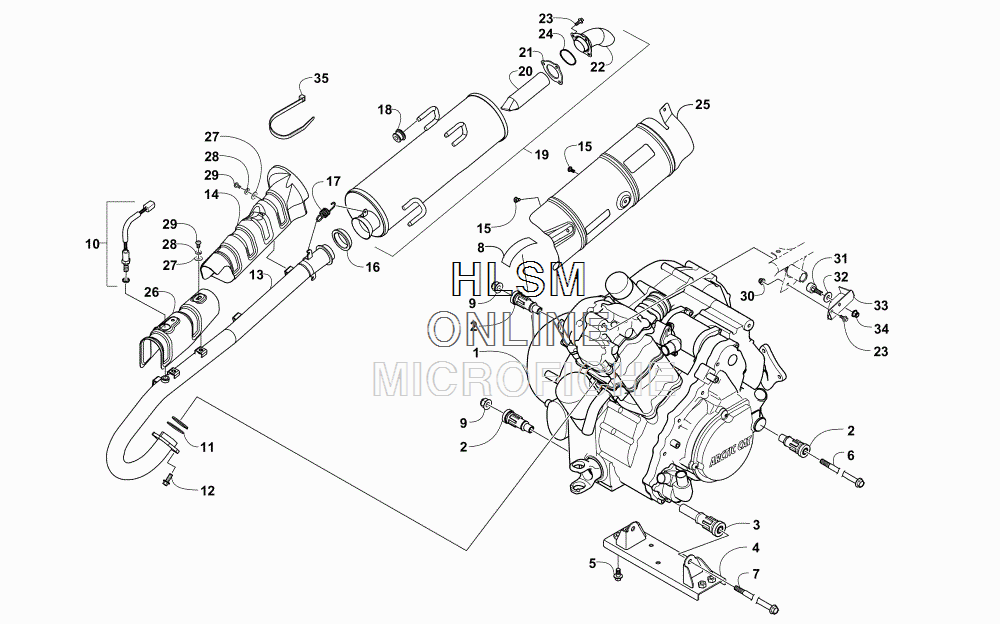

ENGINE AND EXHAUST для Arctic Cat ALTERRA 700 RED - 2017 года выпуска
-
№АртикулНазвание
-
10800-205 ENGINE (INC. 2-3)ENGINE (INC. 2-3)
-
20801-129 ...MOUNT, RUBBER - ENGINE...MOUNT, RUBBER - ENGINE
-
30801-122 ...MOUNT, RUBBER - ENGINE...MOUNT, RUBBER - ENGINE
-
40508-032 BRACKET, ENGINE - FRONTBRACKET, ENGINE - FRONT
-
58408-816 SCREW, CAPSCREW, CAP
-
60423-451 SCREW, CAPSCREW, CAP
-
70423-405 SCREW, CAPSCREW, CAP
-
80411-426 DECAL, WARNINGDECAL, WARNING
-
91423-335 NUT, LOCKNUT, LOCK
-
100430-135 SENSOR, OXYGENSENSOR, OXYGEN
-
110412-338 GASKET, EXHAUSTGASKET, EXHAUST
-
128408-820 SCREW, CAPSCREW, CAP
-
130512-748 PIPE, EXHAUST - PAINTED BLACKPIPE, EXHAUST - PAINTED BLACK
-
140412-949 SHIELD, PIPESHIELD, PIPE
-
151623-490 SCREW, CAPSCREW, CAP
-
160412-375 SEAL, EXHAUSTSEAL, EXHAUST
-
170612-668 SPRINGSPRING
-
180412-544 BUSHINGBUSHING
-
190512-735 MUFFLER - ASSEMBLY (INC. 20-24)MUFFLER - ASSEMBLY (INC. 20-24)
-
200512-647 ...SPARK ARRESTER ASSEMBLY...SPARK ARRESTER ASSEMBLY
-
210412-675 ...GASKET, SPARK ARRESTER...GASKET, SPARK ARRESTER
-
220512-739 ...PIPE, TAIL - BLACK...PIPE, TAIL - BLACK
-
238408-616 ...SCREW, CAP...SCREW, CAP
-
241423-246 ...WASHER, WAVE...WASHER, WAVE
-
250412-788 SHIELD, PIPE - MUFFLERSHIELD, PIPE - MUFFLER
-
260412-951 SHIELD, EXHAUSTSHIELD, EXHAUST
-
278050-223 WASHER, FLATWASHER, FLAT
-
288053-212 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
298477-610 SCREW, MACHINESCREW, MACHINE
-
308427-603 NUT, LOCKNUT, LOCK
-
311423-299 BUMPERBUMPER
-
328450-127 WASHERWASHER
-
330408-062 BRACKET, HEAD MOUNTBRACKET, HEAD MOUNT
-
348427-802 NUTNUT
-
350123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
