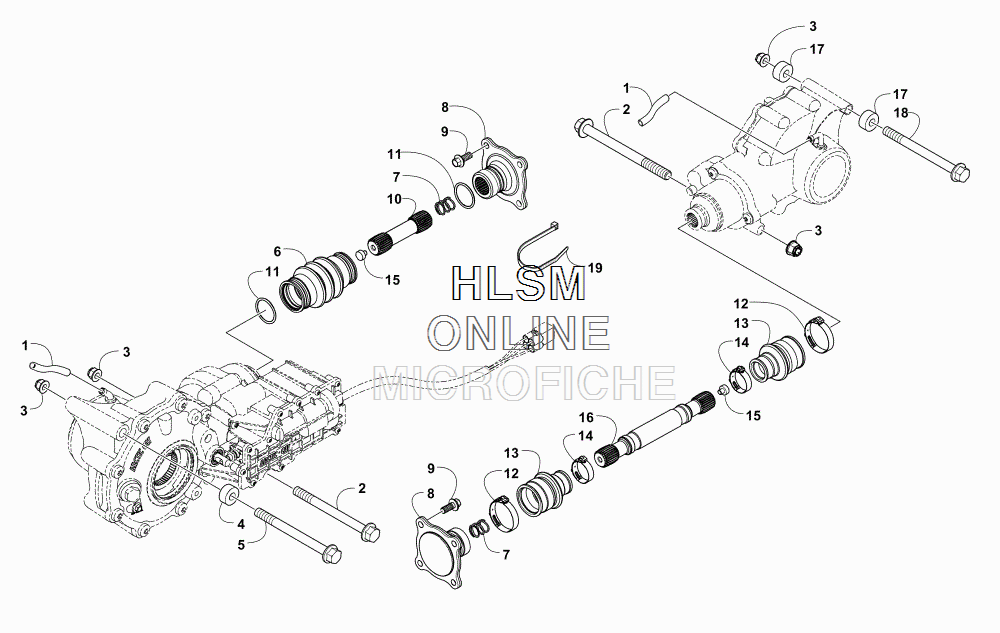

DRIVE TRAIN ASSEMBLY для Arctic Cat ALTERRA 700 XT EPS GREEN - 2017 года выпуска
-
№АртикулНазвание
-
10410-070 HOSE - 25 FTHOSE - 25 FT
-
20423-404 SCREW, CAPSCREW, CAP
-
38428-002 NUT, LOCKNUT, LOCK
-
41423-255 SPACER, GEARCASE - FRONTSPACER, GEARCASE - FRONT
-
50423-576 SCREW, CAPSCREW, CAP
-
62402-200 BOOT, SHAFTBOOT, SHAFT
-
71402-026 SPRINGSPRING
-
82402-193 FLANGE, OUTPUTFLANGE, OUTPUT
-
98408-820 SCREW, CAPSCREW, CAP
-
102402-175 SHAFT, PROPELLER - FRONTSHAFT, PROPELLER - FRONT
-
110830-240 O-RINGO-RING
-
120423-393 CLAMPCLAMP
-
130402-985 BOOTBOOT
-
140423-411 CLAMPCLAMP
-
150673-618 BUMPER, DRIVESHAFTBUMPER, DRIVESHAFT
-
162402-173 SHAFT, PROPELLER - REARSHAFT, PROPELLER - REAR
-
171423-179 SPACERSPACER
-
181423-266 SCREW, CAPSCREW, CAP
-
190123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
