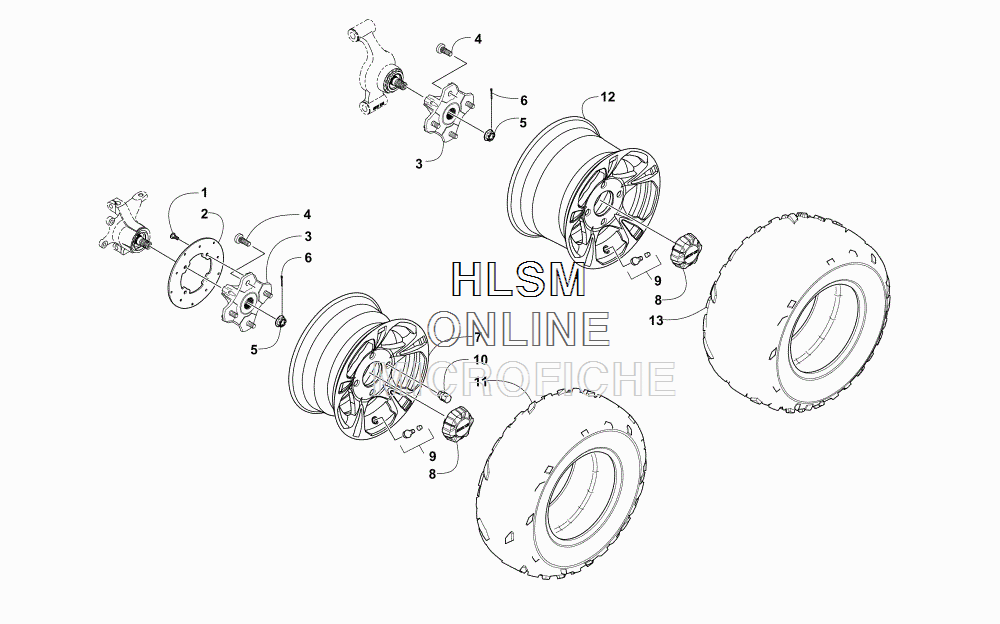

WHEEL AND TIRE ASSEMBLY для Arctic Cat ALTERRA TRV 1000 XT EPS RED - 2017 года выпуска
-
№АртикулНазвание
-
10423-557 SCREW, SHOULDERSCREW, SHOULDER
-
21436-808 KIT, BRAKE DISC (INC. 1)KIT, BRAKE DISC (INC. 1)
-
31502-437 HUB - ASSEMBLY (INC. 4)HUB - ASSEMBLY (INC. 4)
-
40402-974 ...STUD...STUD
-
50423-607 NUT, CASTLENUT, CASTLE
-
60423-407 PIN, COTTERPIN, COTTER
-
72402-195 WHEEL - FRONT - ALUMINUM - BLACK (INC. 8)WHEEL - FRONT - ALUMINUM - BLACK (INC. 8)
-
82402-197 ...CAP, WHEEL...CAP, WHEEL
-
90402-064 STEM, VALVE - W/CAPSTEM, VALVE - W/CAP
-
101423-260 NUT, LUG - BLACKNUT, LUG - BLACK
-
112402-111 TIRE - FRONT - CARLISLE, TPRO - 25X8R12TIRE - FRONT - CARLISLE, TPRO - 25X8R12
-
122402-196 WHEEL - REAR - ALUMINUM - BLACK (INC. 8)WHEEL - REAR - ALUMINUM - BLACK (INC. 8)
-
132402-112 TIRE - REAR - CARLISLE, TPRO - 25X10R12TIRE - REAR - CARLISLE, TPRO - 25X10R12
