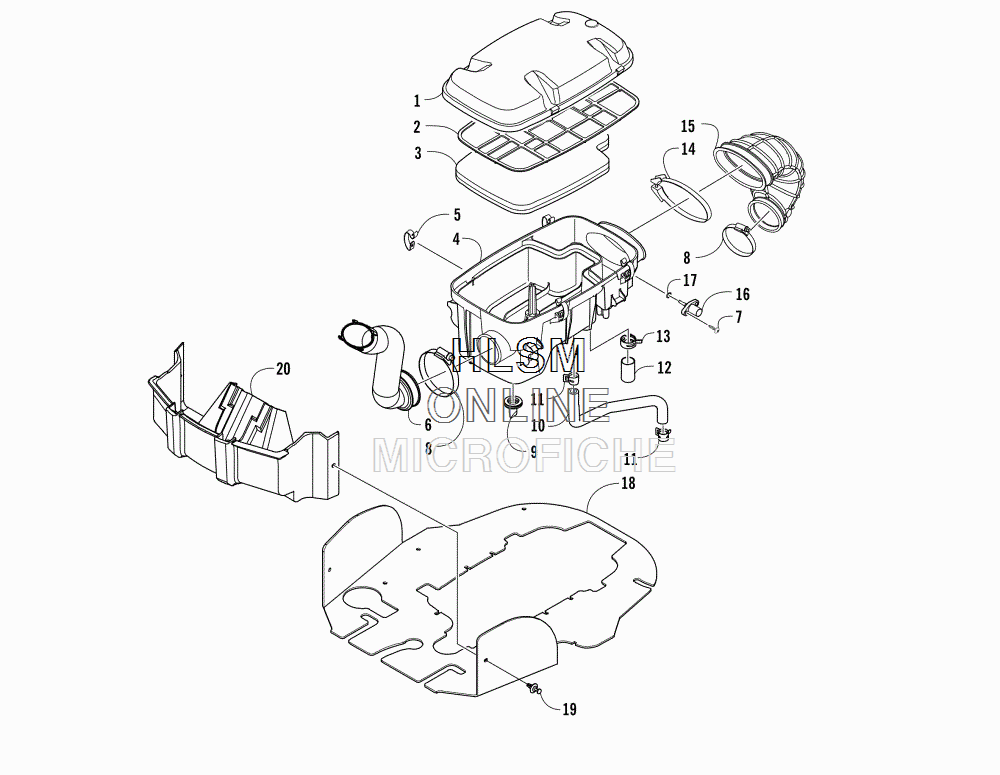

AIR INTAKE ASSEMBLY для Arctic Cat ALTERRA TRV 550 XT EPS WHITE - 2017 года выпуска
-
№АртикулНазвание
-
10470-877 AIR BOX, TOPAIR BOX, TOP
-
20470-560 SCREEN, AIR FILTERSCREEN, AIR FILTER
-
30470-558 FILTER, AIRFILTER, AIR
-
40470-728 HOUSING, AIR INTAKEHOUSING, AIR INTAKE
-
50423-455 CLIP, SPRINGCLIP, SPRING
-
61470-127 DUCT, ENGINE INTAKEDUCT, ENGINE INTAKE
-
70423-342 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
80423-019 CLAMPCLAMP
-
90470-442 VALVE, DRAINVALVE, DRAIN
-
100410-172 HOSE, VENT - CRANKCASEHOSE, VENT - CRANKCASE
-
111623-281 CLAMP, HOSECLAMP, HOSE
-
120423-766 CAP, DRAINCAP, DRAIN
-
131623-287 CLAMP, HOSECLAMP, HOSE
-
140423-554 CLAMPCLAMP
-
150470-511 BOOT, INTAKEBOOT, INTAKE
-
160430-055 SENSOR, AIR TEMPERATURE (INC. 17)SENSOR, AIR TEMPERATURE (INC. 17)
-
175507-224 ...O-RING...O-RING
-
185406-383 PANEL, SHIELDPANEL, SHIELD
-
190623-362 CLIP, RETAININGCLIP, RETAINING
-
205406-385 PANEL, AIRBOX SHIELDPANEL, AIRBOX SHIELD
