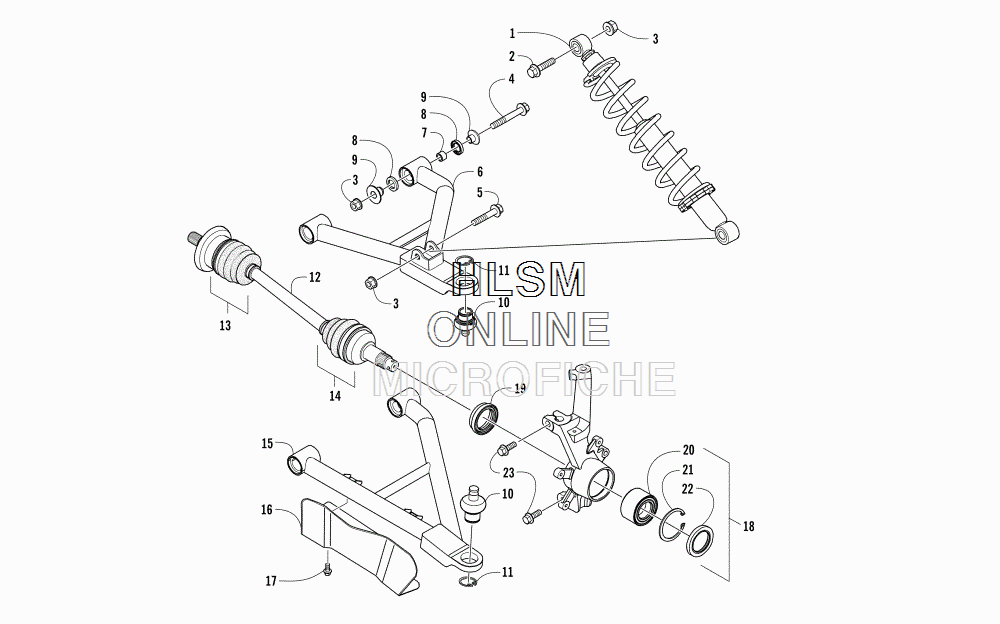

FRONT SUSPENSION ASSEMBLY для Arctic Cat PROWLER 500 RED - 2017 года выпуска
-
№АртикулНазвание
-
13307-400 SHOCK/SPRING ASSEMBLYSHOCK/SPRING ASSEMBLY
-
23307-426 BOLT, FLANGEBOLT, FLANGE
-
33304-031 NUT, LOCKNUT, LOCK
-
43307-427 BOLT, FLANGEBOLT, FLANGE
-
53304-595 BOLT, FLANGEBOLT, FLANGE
-
63307-414 A-ARM, UPPER - FRONT - RIGHT (INC. 7-11)A-ARM, UPPER - FRONT - RIGHT (INC. 7-11)
-
63307-419 A-ARM, UPPER - FRONT - LEFT (INC. 7-11)A-ARM, UPPER - FRONT - LEFT (INC. 7-11)
-
73307-415 ...BEARING...BEARING
-
83307-417 ...SEAL, DUST...SEAL, DUST
-
93307-416 ...COLLAR...COLLAR
-
100405-483 ...BALL JOINT...BALL JOINT
-
110423-009 ...RING, RETAINING...RING, RETAINING
-
123307-428 HALFSHAFT - FRONT - RIGHTHALFSHAFT - FRONT - RIGHT
-
123307-429 HALFSHAFT - FRONT - LEFTHALFSHAFT - FRONT - LEFT
-
133313-560 SERVICE KIT, DIFFERENTIAL SIDE BOOT (IN BOARD)SERVICE KIT, DIFFERENTIAL SIDE BOOT (IN BOARD)
-
143313-558 REPAIR KIT, BOOT - DRIVE AXLE - OUTBOUNDREPAIR KIT, BOOT - DRIVE AXLE - OUTBOUND
-
153307-418 A-ARM, LOWER - FRONT - RIGHT (INC. 7-11)A-ARM, LOWER - FRONT - RIGHT (INC. 7-11)
-
153307-420 A-ARM, LOWER - FRONT - LEFT (INC. 7-11)A-ARM, LOWER - FRONT - LEFT (INC. 7-11)
-
163306-486 MUDGUARD - RIGHTMUDGUARD - RIGHT
-
163306-487 MUDGUARD - LEFTMUDGUARD - LEFT
-
173304-587 BOLT WASHER 6X16BOLT WASHER 6X16
-
183307-398 KNUCKLE, STEERING ASSEMBLY - RIGHT (INC. 20-22)KNUCKLE, STEERING ASSEMBLY - RIGHT (INC. 20-22)
-
183307-399 KNUCKLE, STEERING ASSEMBLY - LEFT (INC. 20-22)KNUCKLE, STEERING ASSEMBLY - LEFT (INC. 20-22)
-
193307-422 SEAL, DUSTSEAL, DUST
-
201402-809 BEARINGBEARING
-
210423-423 RING, RETAININGRING, RETAINING
-
223307-423 SEAL, DUSTSEAL, DUST
-
233307-425 BOLT, FLANGEBOLT, FLANGE
