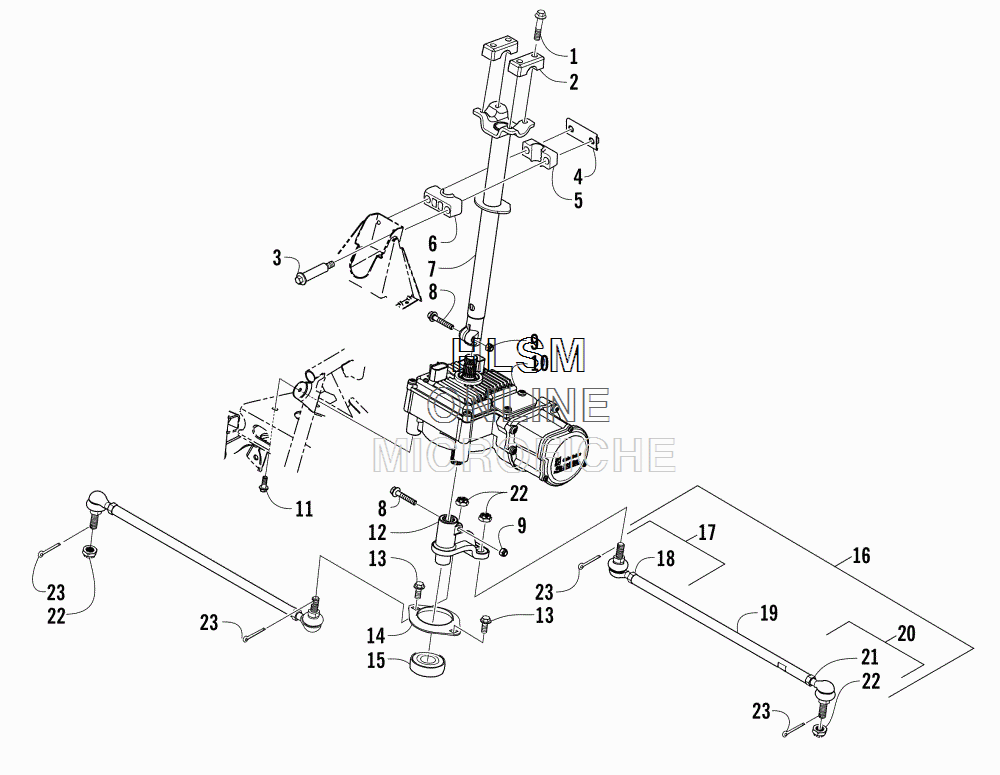

STEERING ASSEMBLY для Arctic Cat TBX 700 EPS RED - 2017 года выпуска
-
№АртикулНазвание
-
18408-835 SCREW, CAPSCREW, CAP
-
20405-035 CAP, STEERING ADJUSTERCAP, STEERING ADJUSTER
-
30423-505 SCREW, SHOULDERSCREW, SHOULDER
-
40505-484 CAP, HOUSINGCAP, HOUSING
-
50405-260 BLOCK, MOUNTINGBLOCK, MOUNTING
-
60405-259 BLOCK, MOUNTINGBLOCK, MOUNTING
-
70505-642 POST, STEERINGPOST, STEERING
-
88020-045 SCREW, CAPSCREW, CAP
-
98040-366 NUT, LOCKNUT, LOCK
-
100505-962 ASSEMBLY, ELECTRONIC POWER STEERINGASSEMBLY, ELECTRONIC POWER STEERING
-
118409-020 SCREW, CAPSCREW, CAP
-
120505-664 ARM, STEERINGARM, STEERING
-
138408-816 SCREW, CAPSCREW, CAP
-
140602-233 FLANGE, BEARINGFLANGE, BEARING
-
150405-052 BEARING W/INVERTED OIL SEALBEARING W/INVERTED OIL SEAL
-
160505-872 TIE ROD - ASSEMBLY (INC. 18, 19, 21 AND BOTH TIE ROD ENDS)TIE ROD - ASSEMBLY (INC. 18, 19, 21 AND BOTH TIE ROD ENDS)
-
170505-875 ...END, TIE ROD - LEFT-HAND THREAD - KIT (INC. 18 AND 22-23)...END, TIE ROD - LEFT-HAND THREAD - KIT (INC. 18 AND 22-23)
-
180423-013 ......NUT - LEFT-HAND THREAD......NUT - LEFT-HAND THREAD
-
190405-281 ...TIE ROD...TIE ROD
-
200505-874 ...END, TIE ROD - RIGHT-HAND THREAD - KIT (INC. 21-23)...END, TIE ROD - RIGHT-HAND THREAD - KIT (INC. 21-23)
-
218420-002 ......NUT - RIGHT-HAND THREAD......NUT - RIGHT-HAND THREAD
-
220423-157 ......NUT......NUT
-
230623-175 ......PIN, COTTER......PIN, COTTER
