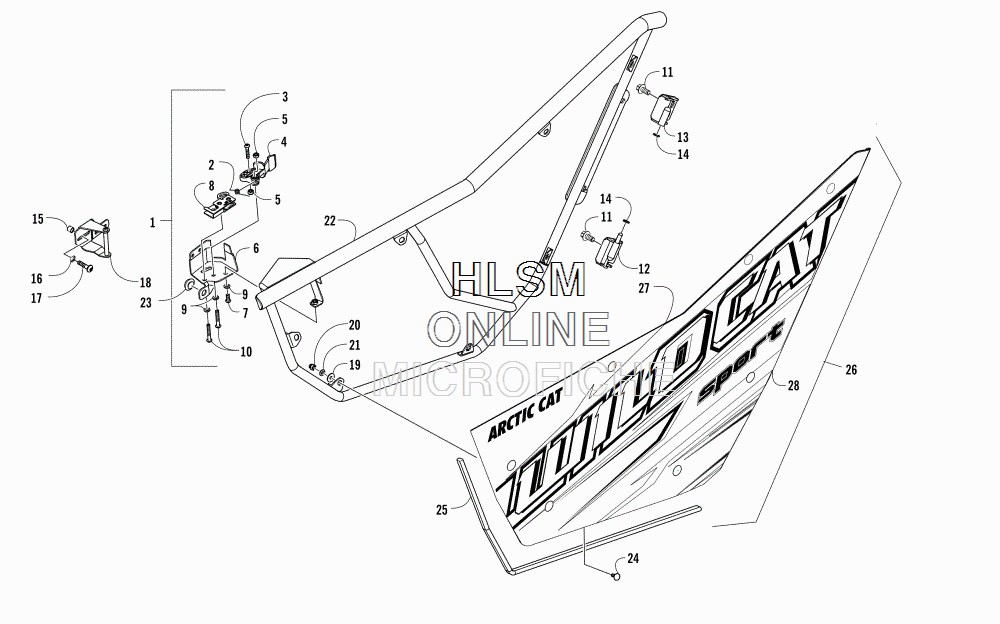

DOOR ASSEMBLY для Arctic Cat WILDCAT SPORT LTD EPS GRAY - 2017 года выпуска
-
№АртикулНазвание
-
12436-262 LATCH, DOOR - RIGHT - ASSEMBLY (INC. 2-6 AND 8-10)LATCH, DOOR - RIGHT - ASSEMBLY (INC. 2-6 AND 8-10)
-
12436-263 LATCH, DOOR - LEFT - ASSEMBLY (INC. 2-6 AND 8-10)LATCH, DOOR - LEFT - ASSEMBLY (INC. 2-6 AND 8-10)
-
21423-235 ...SPRING...SPRING
-
31423-231 ...SCREW...SCREW
-
44406-999 ...HANDLE, DOOR...HANDLE, DOOR
-
51423-153 ...NUT, LOCK...NUT, LOCK
-
64406-730 ...BRACKET - RIGHT...BRACKET - RIGHT
-
64406-731 ...BRACKET - LEFT...BRACKET - LEFT
-
71423-114 SCREW, CAPSCREW, CAP
-
84406-908 LATCH, ROTARY (RIGHT)LATCH, ROTARY (RIGHT)
-
84406-909 LATCH, ROTARY (LEFT)LATCH, ROTARY (LEFT)
-
91423-120 WASHERWASHER
-
101423-232 SCREW, MACHINESCREW, MACHINE
-
118408-818 SCREW, CAPSCREW, CAP
-
124406-424 HINGE, DOOR - LOWER RIGHTHINGE, DOOR - LOWER RIGHT
-
124406-425 HINGE, DOOR - LOWER LEFTHINGE, DOOR - LOWER LEFT
-
134406-426 HINGE, DOOR - UPPER RIGHTHINGE, DOOR - UPPER RIGHT
-
134406-427 HINGE, DOOR - UPPER LEFTHINGE, DOOR - UPPER LEFT
-
141423-224 BUSHING, DOOR HINGEBUSHING, DOOR HINGE
-
154406-777 DOOR STRIKERDOOR STRIKER
-
168050-223 WASHER, FLATWASHER, FLAT
-
178468-626 SCREW, MACHINESCREW, MACHINE
-
184406-728 STRIKER, DOOR - RIGHTSTRIKER, DOOR - RIGHT
-
184406-729 STRIKER, DOOR - LEFTSTRIKER, DOOR - LEFT
-
191423-264 WASHER, LOCKWASHER, LOCK
-
201423-263 NUT, CAPNUT, CAP
-
211423-312 WASHER, LOCKWASHER, LOCK
-
225506-838 FRAME, DOOR - RIGHTFRAME, DOOR - RIGHT
-
225506-839 FRAME, DOOR - LEFTFRAME, DOOR - LEFT
-
234406-776 PLUG, BUMPERPLUG, BUMPER
-
241423-233 BOLT, CARRIAGEBOLT, CARRIAGE
-
254406-724 SEAL, TRIMSEAL, TRIM
-
260518-296 DOOR W/DECALS - RIGHT (INC. 27-28)DOOR W/DECALS - RIGHT (INC. 27-28)
-
260518-297 DOOR W/DECALS - LEFT (INC. 27-28)DOOR W/DECALS - LEFT (INC. 27-28)
-
274406-726 ...DOOR W/O DECALS - RIGHT - BLACK...DOOR W/O DECALS - RIGHT - BLACK
-
274406-727 ...DOOR W/O DECALS - LEFT - BLACK...DOOR W/O DECALS - LEFT - BLACK
-
285411-834 ...DECAL, DOOR - RIGHT...DECAL, DOOR - RIGHT
-
285411-835 ...DECAL, DOOR - LEFT...DECAL, DOOR - LEFT
