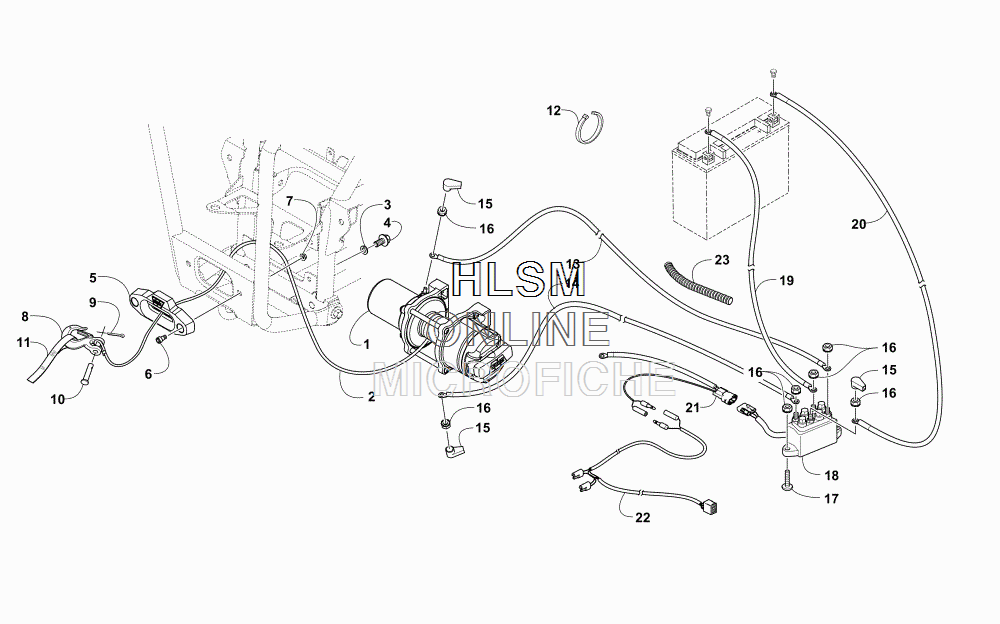

WINCH ASSEMBLY для Arctic Cat WILDCAT TRAIL SE EPS BLACK - 2017 года выпуска
-
№АртикулНазвание
-
13441-134 WINCHWINCH
-
20436-962 KIT, WINCH SYNTHETIC ROPEKIT, WINCH SYNTHETIC ROPE
-
38051-246 WASHER, LOCKWASHER, LOCK
-
48408-820 SCREW, CAPSCREW, CAP
-
53441-132 FAIRLEAD, ROLLERFAIRLEAD, ROLLER
-
61423-150 SCREW, CAPSCREW, CAP
-
71423-334 NUT, LOCKNUT, LOCK
-
83441-133 HOOK, WINCHHOOK, WINCH
-
90623-175 PIN, COTTERPIN, COTTER
-
101441-834 PINPIN
-
111441-781 STRAPSTRAP
-
120123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
131441-348 CABLE, WINCH/SOLENOID - BLUECABLE, WINCH/SOLENOID - BLUE
-
141441-347 CABLE, WINCH/SOLENOID - YELLOWCABLE, WINCH/SOLENOID - YELLOW
-
150645-019 BOOT, TERMINAL - BATTERYBOOT, TERMINAL - BATTERY
-
160623-038 NUT W/WASHERNUT W/WASHER
-
178476-625 SCREW, CAPSCREW, CAP
-
180409-066 SOLENOIDSOLENOID
-
190441-416 CABLE, SOLENOID/BATTERY - BLACKCABLE, SOLENOID/BATTERY - BLACK
-
200445-089 CABLE, BATTERY/SOLENOID - REDCABLE, BATTERY/SOLENOID - RED
-
210486-276 HARNESS, ADAPTER - SOLENOIDHARNESS, ADAPTER - SOLENOID
-
220486-550 HARNESS, WINCH - BACKLITHARNESS, WINCH - BACKLIT
-
233706-134 LOOM,17-CTL (0619-139)LOOM,17-CTL (0619-139)
