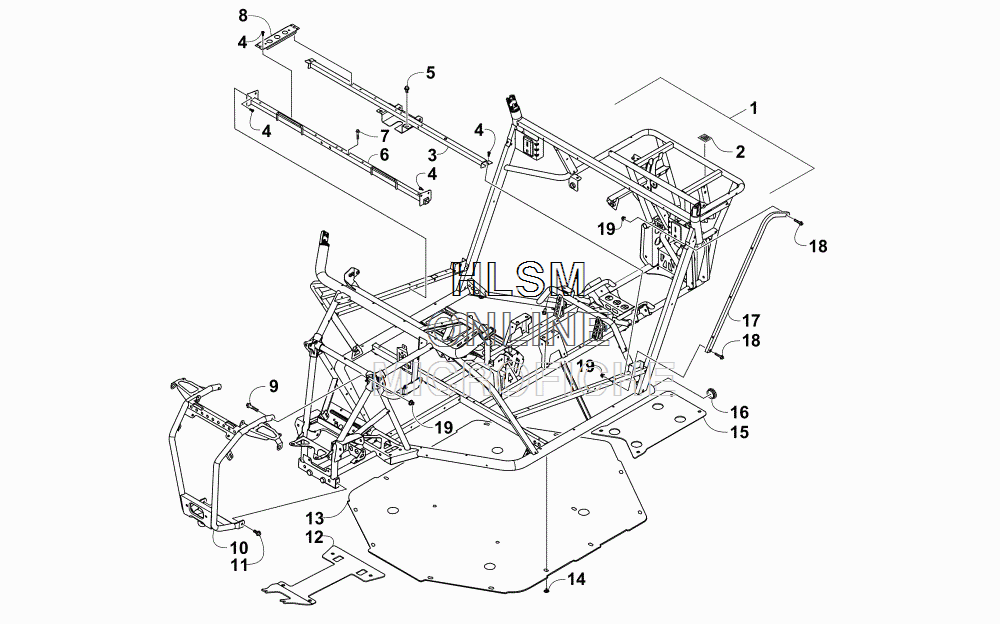

FRAME AND RELATED PARTS для Arctic Cat WILDCAT TRAIL XT EPS RED - 2017 года выпуска
-
№АртикулНазвание
-
18506-070 FRAME, MAIN (INC. 2)FRAME, MAIN (INC. 2)
-
24411-110 ...DECAL, WARNING - TOWING...DECAL, WARNING - TOWING
-
35506-218 TUBE, SUPPORT - REARTUBE, SUPPORT - REAR
-
40423-538 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
58411-021 SCREW, CAPSCREW, CAP
-
65506-414 TUBE, SEAT SUPPORT - FRONTTUBE, SEAT SUPPORT - FRONT
-
78411-841 SCREW, CAPSCREW, CAP
-
85506-398 BRACKET, SUPPORTBRACKET, SUPPORT
-
98408-845 SCREW, CAPSCREW, CAP
-
105506-235 BUMPERBUMPER
-
118409-820 SCREW, CAPSCREW, CAP
-
124406-347 PLATE, SKID - FRONTPLATE, SKID - FRONT
-
134406-348 PLATE, SKID - CENTERPLATE, SKID - CENTER
-
141423-109 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
154406-349 PLATE, SKID - REARPLATE, SKID - REAR
-
162416-962 PLUG, HOLEPLUG, HOLE
-
175506-396 TUBE, DOOR SUPPORT - RIGHTTUBE, DOOR SUPPORT - RIGHT
-
175506-397 TUBE, DOOR SUPPORT - LEFTTUBE, DOOR SUPPORT - LEFT
-
188408-840 SCREW, CAPSCREW, CAP
-
198427-802 NUTNUT
