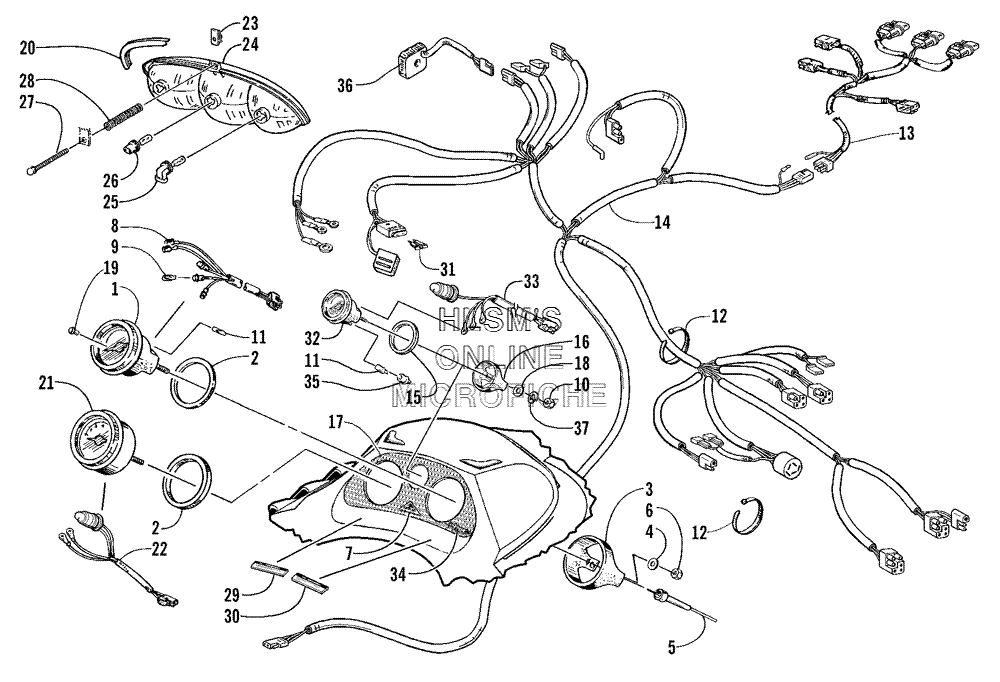

HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLY для Arctic Cat Pantera 580 EFI (USA) - 2000 года выпуска
-
№АртикулНазвание
-
10620-238 SPEEDOMETER (INC 8, 11 AND 19)SPEEDOMETER (INC 8, 11 AND 19)
-
10620-239 SPEEDOMETER (INC 8, 11 AND 19) (INTERNATIONAL)SPEEDOMETER (INC 8, 11 AND 19) (INTERNATIONAL)
-
20620-135 RING, RUBBER CUSHIONRING, RUBBER CUSHION
-
30620-134 RING, RETAINING BRACKETRING, RETAINING BRACKET
-
48050-212 WASHERWASHER
-
50620-113 CABLE, SPEEDOMETERCABLE, SPEEDOMETER
-
60623-038 NUT W/WASHERNUT W/WASHER
-
73611-611 DECAL - ''''MADE IN U.S.A.''''DECAL - ''''MADE IN U.S.A.''''
-
80620-151 HARNESS, BULB - SPEEDOMETERHARNESS, BULB - SPEEDOMETER
-
90620-149 BULB, INDICATORBULB, INDICATOR
-
100623-839 NUTNUT
-
110230-020 BULB, INSTRUMENTBULB, INSTRUMENT
-
120123-788 TIE, CABLETIE, CABLE
-
130686-588 HARNESS, HOODHARNESS, HOOD
-
140686-638 HARNESS, MAINHARNESS, MAIN
-
150620-139 RING, RUBBER CUSHIONRING, RUBBER CUSHION
-
160620-138 BACK-CLAMP, FUEL GAUGEBACK-CLAMP, FUEL GAUGE
-
173611-523 DECAL, INSTRUMENT - HOODDECAL, INSTRUMENT - HOOD
-
188050-122 WASHERWASHER
-
190620-073 KNOB, TRIPMETERKNOB, TRIPMETER
-
200617-309 SEAL, HEADLIGHT 24 IN.SEAL, HEADLIGHT 24 IN.
-
200617-310 SEAL, HEADLIGHT 14 IN.SEAL, HEADLIGHT 14 IN.
-
210620-237 TACHOMETER (INC 22)TACHOMETER (INC 22)
-
220620-215 HARNESS, TACHOMETERHARNESS, TACHOMETER
-
230623-757 NUT, UNUT, U
-
240609-250 LENS/REFLECTOR - HEADLIGHTLENS/REFLECTOR - HEADLIGHT
-
250609-251 BULB, HEADLIGHT - HIGH BEAMBULB, HEADLIGHT - HIGH BEAM
-
260609-252 BULB, HEADLIGHT - LOW BEAMBULB, HEADLIGHT - LOW BEAM
-
270623-467 SCREW, THUMBSCREW, THUMB
-
280623-466 SPRING, ADJUSTERSPRING, ADJUSTER
-
293611-361 DECAL, CAUTION - ENGINE - ENGLISHDECAL, CAUTION - ENGINE - ENGLISH
-
303611-363 DECAL, CAUTION - ENGINE - FRENCHDECAL, CAUTION - ENGINE - FRENCH
-
310630-100 FUSE, 7.5 AMPFUSE, 7.5 AMP
-
320620-240 FUEL GAUGE (INC 33-35)FUEL GAUGE (INC 33-35)
-
330620-218 HARNESSHARNESS
-
343611-581 DECAL, ''''ESR''''DECAL, ''''ESR''''
-
350620-106 SOCKET, INSTRUMENT BULBSOCKET, INSTRUMENT BULB
-
360630-105 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
378051-122 WASHER, LOCKWASHER, LOCK
