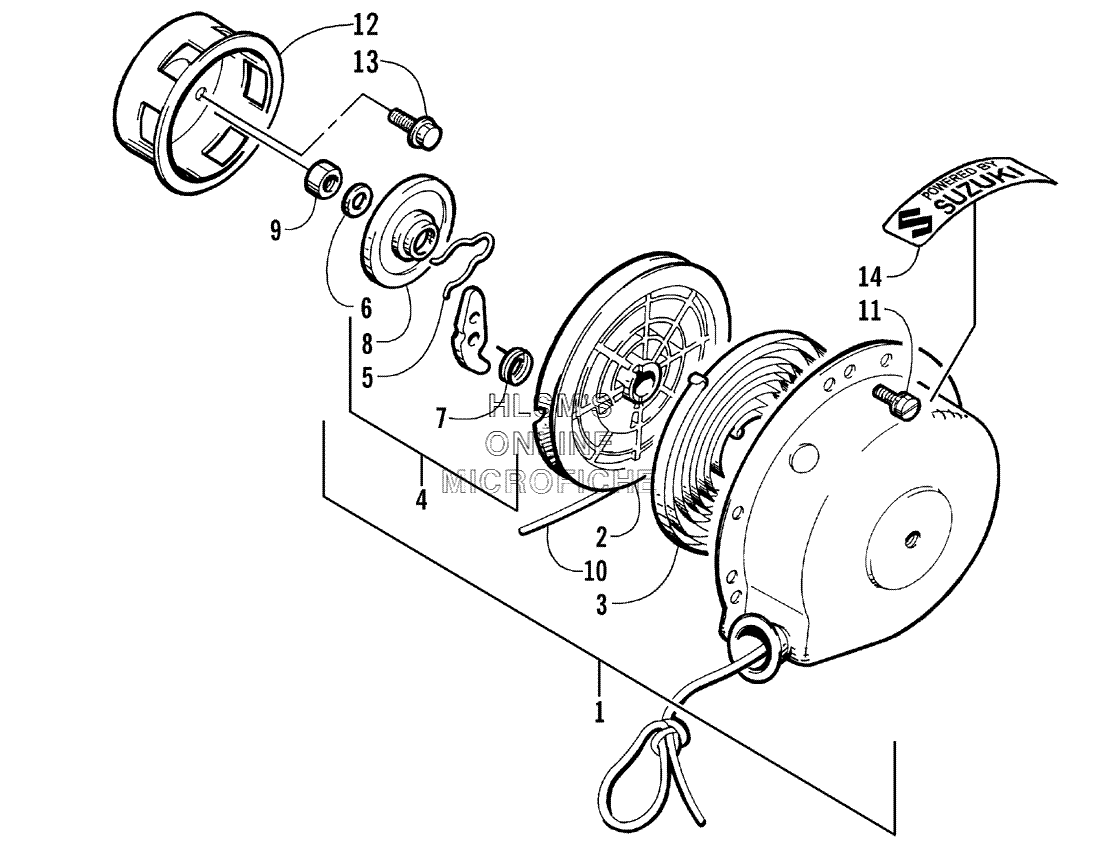

RECOIL STARTER для Arctic Cat Powder Spcial 600 EFI - 2000 года выпуска
-
№АртикулНазвание
-
13005-520 STARTER ASSEMBLY (INC. 2-10)STARTER ASSEMBLY (INC. 2-10)
-
23003-179 . ROLLER, STARTER. ROLLER, STARTER
-
33002-921 . SPRING. SPRING
-
43004-729 . RATCHET SET (INC. 5-8). RATCHET SET (INC. 5-8)
-
63003-397 WASHERWASHER
-
83005-128 PLATE, FRICTIONPLATE, FRICTION
-
93004-488 . NUT. NUT
-
103003-327 . ROPE, STARTER. ROPE, STARTER
-
113004-383 SCREW, CAPSCREW, CAP
-
123005-531 PULLEY, STARTERPULLEY, STARTER
-
133004-338 SCREW, CAPSCREW, CAP
-
141611-588 DECAL, ''POWERED BY''DECAL, ''POWERED BY''
