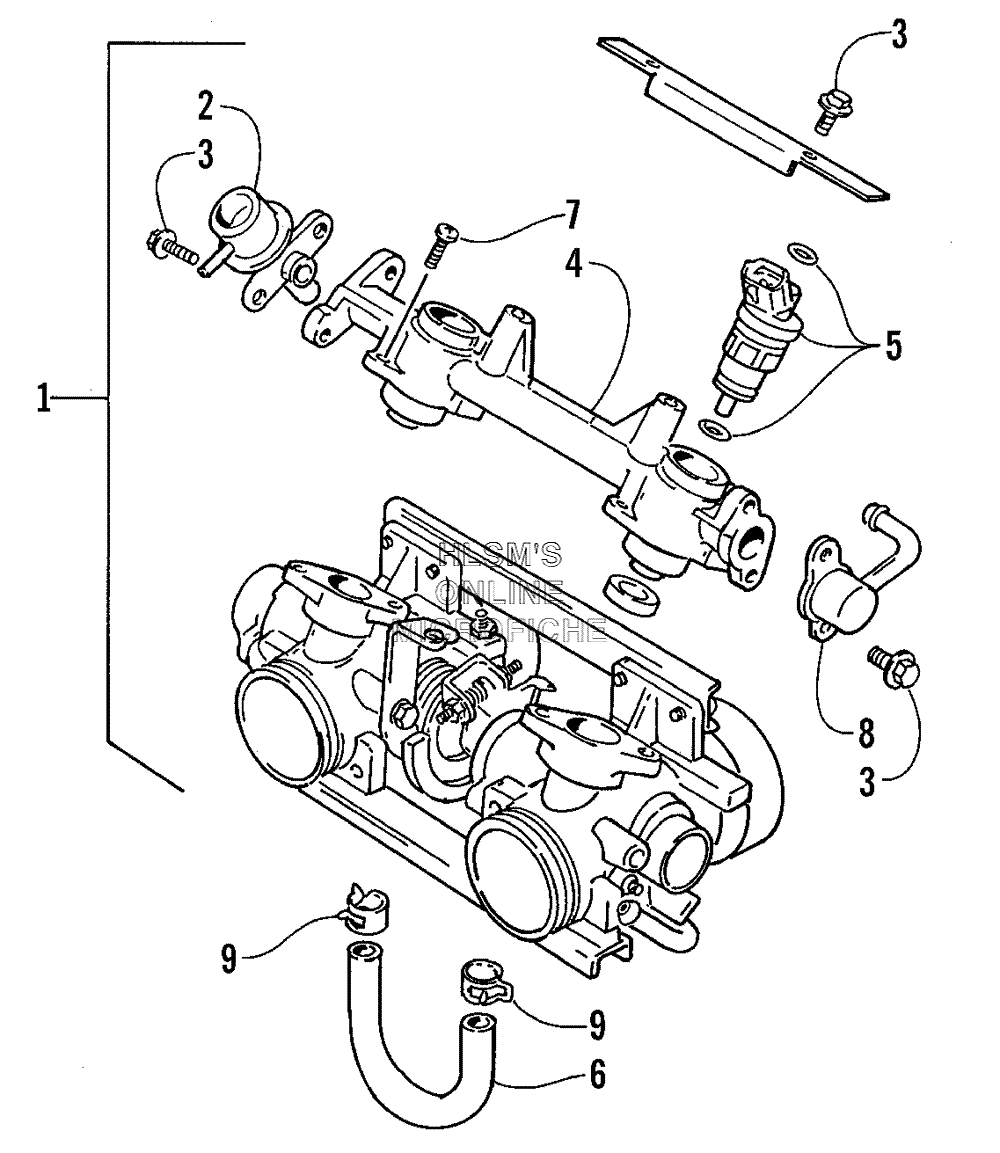

THROTTLE BODY ASSEMBLY для Arctic Cat Powder Special 500 EFI LE (Green) - 2000 года выпуска
-
№АртикулНазвание
-
13005-611 THROTTLE BODY - ASSEMBLY BT - CIRCLETHROTTLE BODY - ASSEMBLY BT - CIRCLE
-
13005-608 THROTTLE BODY - ASSEMBLY BT - SQUARETHROTTLE BODY - ASSEMBLY BT - SQUARE
-
13005-612 THROTTLE BODY - ASSEMBLY BT - TRIANGLETHROTTLE BODY - ASSEMBLY BT - TRIANGLE
-
23005-074 REGULATOR, FUELREGULATOR, FUEL
-
33004-436 SCREW, CAPSCREW, CAP
-
43005-269 PIPE, DELIVERYPIPE, DELIVERY
-
53005-075 INJECTOR, FUEL - ASSEMBLY BT - CIRCLEINJECTOR, FUEL - ASSEMBLY BT - CIRCLE
-
53005-076 INJECTOR, FUEL - ASSEMBLY BT - SQUAREINJECTOR, FUEL - ASSEMBLY BT - SQUARE
-
53005-077 INJECTOR, FUEL - ASSEMBLY BT - TRIANGLEINJECTOR, FUEL - ASSEMBLY BT - TRIANGLE
-
63005-103 HOSEHOSE
-
73005-320 SCREWSCREW
-
83005-079 PIPE, FUEL INLETPIPE, FUEL INLET
-
93004-193 CLAMP, HOSECLAMP, HOSE
