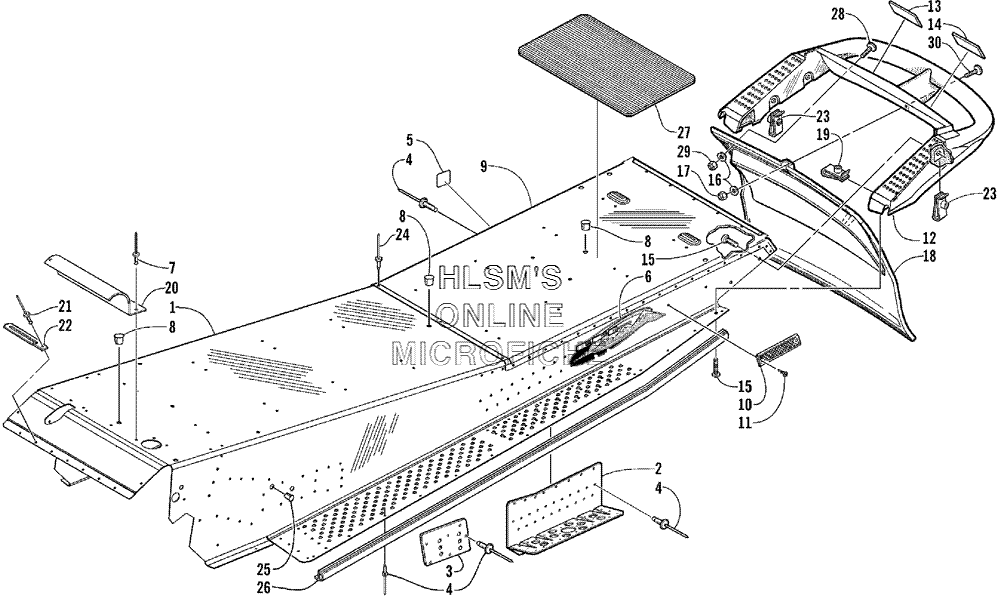

TUNNEL AND REAR BUMPER для Arctic Cat Powder Special 500 EFI - 2000 года выпуска
-
№АртикулНазвание
-
10718-878 TUNNEL ASSEMBLY (INC. 2-4 AND 9)TUNNEL ASSEMBLY (INC. 2-4 AND 9)
-
20716-970 . BRACKET, SUSPENSION MOUNTING - RIGHT REAR. BRACKET, SUSPENSION MOUNTING - RIGHT REAR
-
20716-971 . BRACKET, SUSPENSION MOUNTING - LEFT REAR. BRACKET, SUSPENSION MOUNTING - LEFT REAR
-
31606-161 . PLATE, SUSPENSION MOUNTING - FRONT. PLATE, SUSPENSION MOUNTING - FRONT
-
48060-506 . RIVET. RIVET
-
50411-053 DECAL, CEDECAL, CE
-
63611-602 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
63611-603 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
-
70623-166 RIVETRIVET
-
80623-562 PLUG, HOLEPLUG, HOLE
-
91606-929 PLATE, END - REAR TUNNELPLATE, END - REAR TUNNEL
-
100606-029 REFLECTOR, REAR - REDREFLECTOR, REAR - RED
-
110623-269 CLIP, RETAININGCLIP, RETAINING
-
121606-200 BUMPER, REARBUMPER, REAR
-
131611-567 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
141611-566 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
158017-581 SCREW, MACHINESCREW, MACHINE
-
168050-217 WASHERWASHER
-
178040-366 NUT, LOCKNUT, LOCK
-
181606-202 SNOWFLAPSNOWFLAP
-
181606-507 SNOWFLAP, REVERSESNOWFLAP, REVERSE
-
190623-427 NUT, UNUT, U
-
200607-598 BRACKET, MAIN HARNESS PROTECTORBRACKET, MAIN HARNESS PROTECTOR
-
218060-504 RIVETRIVET
-
223002-964 CLAMP, WIRECLAMP, WIRE
-
230623-771 NUT, UNUT, U
-
248060-484 RIVETRIVET
-
250606-983 PLUG, BODYPLUG, BODY
-
261606-932 ROLL, TUNNEL - RIGHTROLL, TUNNEL - RIGHT
-
261606-933 ROLL, TUNNEL - LEFTROLL, TUNNEL - LEFT
-
271606-444 PAD, RUBBERPAD, RUBBER
-
288007-577 SCREW, MACHINESCREW, MACHINE
-
298041-366 NUT, LOCKNUT, LOCK
-
308017-580 SCREW, MACHINESCREW, MACHINE
