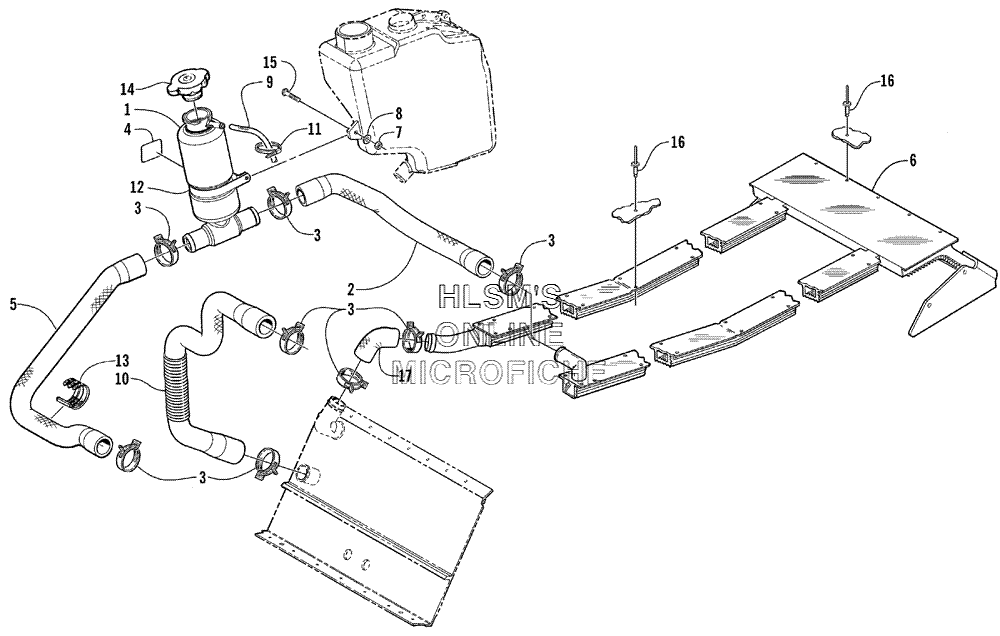

COOLING ASSEMBLY для Arctic Cat Powder Special 600 LE (Black) - 2000 года выпуска
-
№АртикулНазвание
-
11606-396 TANK, COOLANTTANK, COOLANT
-
20610-379 HOSE, COOLANT TANK/HEAT EXCHANGERHOSE, COOLANT TANK/HEAT EXCHANGER
-
30623-736 CLAMP, HOSECLAMP, HOSE
-
42611-758 DECAL, FILL LEVEL, COOLANT TANKDECAL, FILL LEVEL, COOLANT TANK
-
50610-384 HOSE, COOLANT, ENGINE/COOLANT TANKHOSE, COOLANT, ENGINE/COOLANT TANK
-
61706-089 HEAT EXCHANGERHEAT EXCHANGER
-
78040-366 NUT, LOCKNUT, LOCK
-
88050-217 WASHERWASHER
-
90610-015 HOSE, VENT (100 FT)HOSE, VENT (100 FT)
-
90610-016 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
-
100610-418 HOSE, COOLANT, ENGINE/HEAT EXCHANGER W/PROTECTORHOSE, COOLANT, ENGINE/HEAT EXCHANGER W/PROTECTOR
-
110123-788 CABLE TIE, 7 IN.CABLE TIE, 7 IN.
-
120623-761 CLAMP, COOLANT TANKCLAMP, COOLANT TANK
-
130623-540 CABLE TIE, TRIPLECABLE TIE, TRIPLE
-
140606-268 CAP, FILLER NECKCAP, FILLER NECK
-
158017-580 SCREW, MACHINESCREW, MACHINE
-
168060-686 RIVETRIVET
-
170610-244 HOSE, COOLANT HEAT EXCHANGER (FRONT)/ HEAT EXCHANGERHOSE, COOLANT HEAT EXCHANGER (FRONT)/ HEAT EXCHANGER
