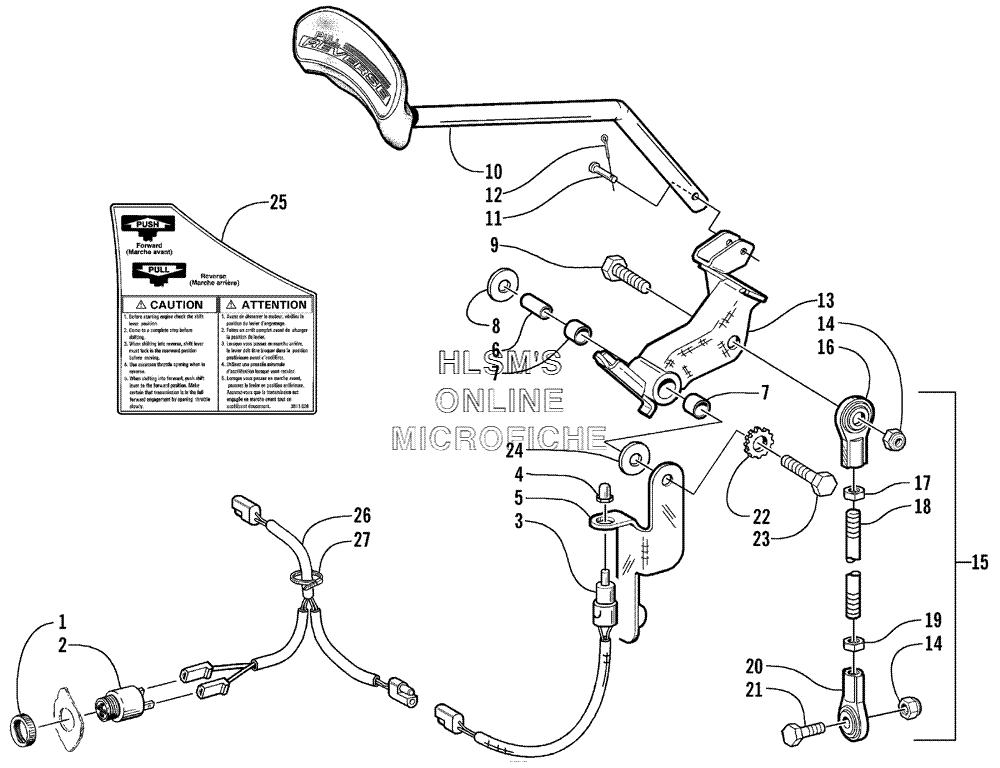

REVERSE SHIFT LEVER ASSEMBLY (OPTIONAL) для Arctic Cat Powder Special 700 LE (Green) - 2000 года выпуска
-
№АртикулНазвание
-
-1639-005 REVERSE OPTIONAL KITREVERSE OPTIONAL KIT
-
10630-017 RING, RETAININGRING, RETAINING
-
20630-010 ALARM, REVERSEALARM, REVERSE
-
30630-011 SWITCH, ALARMSWITCH, ALARM
-
40630-013 BOOT, SWITCHBOOT, SWITCH
-
50602-986 BRACKET, REVERSE SWITCHBRACKET, REVERSE SWITCH
-
60602-853 AXLE, SHIFT PIVOTAXLE, SHIFT PIVOT
-
70602-844 BUSHINGBUSHING
-
88050-252 WASHERWASHER
-
98002-137 SCREW, CAPSCREW, CAP
-
100602-978 LEVER, REVERSELEVER, REVERSE
-
110623-641 PIN, CLEVISPIN, CLEVIS
-
120117-868 PIN, COTTERPIN, COTTER
-
130702-349 SHIFT PIVOTSHIFT PIVOT
-
148040-426 NUT, LOCKNUT, LOCK
-
150702-347 LINKAGE, SHIFT, ASSEMBLY (INC. 16, 20)LINKAGE, SHIFT, ASSEMBLY (INC. 16, 20)
-
160602-305 . ROD END (LEFT). ROD END (LEFT)
-
170623-260 . NUT, JAM (LEFT). NUT, JAM (LEFT)
-
180602-982 . ROD, SHIFT LINKAGE. ROD, SHIFT LINKAGE
-
190123-144 . NUT, JAM (RIGHT). NUT, JAM (RIGHT)
-
200602-322 . ROD END (RIGHT). ROD END (RIGHT)
-
218002-132 SCREW, CAPSCREW, CAP
-
228053-242 WASHER, LOCK, EXTERNAL TOOTHWASHER, LOCK, EXTERNAL TOOTH
-
238002-140 SCREW, CAPSCREW, CAP
-
248050-247 WASHERWASHER
-
253611-026 DECAL REVERSEDECAL REVERSE
-
253611-364 DECAL REVERSEDECAL REVERSE
-
253611-580 DECAL REVERSEDECAL REVERSE
-
260686-120 HARNESS, WIRING, ALARMHARNESS, WIRING, ALARM
-
270123-788 CABLE TIE, 7 IN.CABLE TIE, 7 IN.
