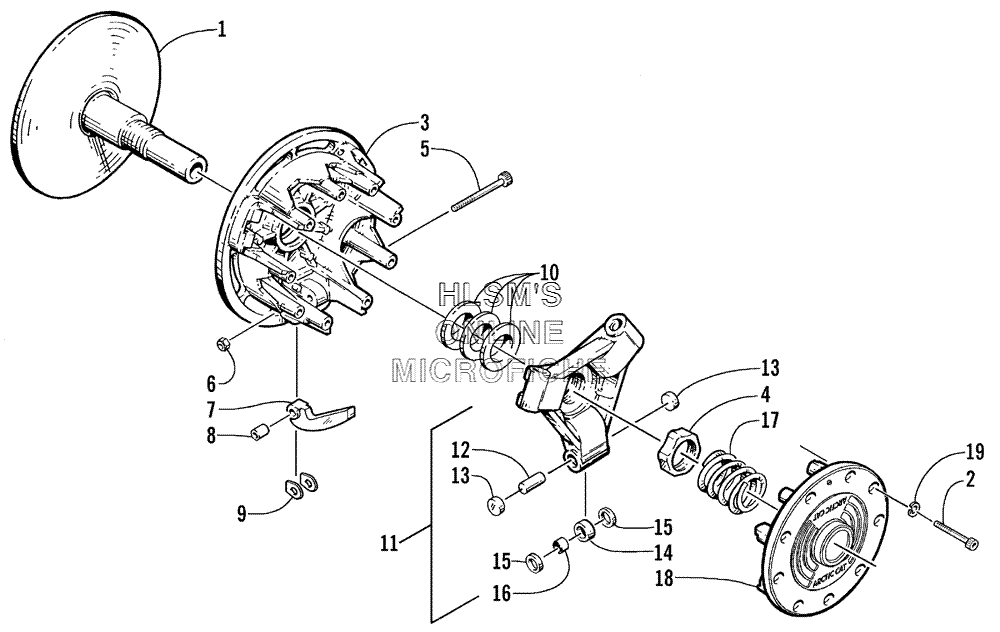

DRIVE CLUTCH для Arctic Cat Thundercat MC Green - 2000 года выпуска
-
№АртикулНазвание
-
-0725-309 CLUTCH, DRIVE ASSEMBLY MCCLUTCH, DRIVE ASSEMBLY MC
-
-0725-308 CLUTCH, DRIVE ASSEMBLY THCCLUTCH, DRIVE ASSEMBLY THC
-
10646-274 SHEAVE, STATIONARYSHEAVE, STATIONARY
-
20623-596 SCREW, MACHINESCREW, MACHINE
-
30746-074 SHEAVE, MOVABLESHEAVE, MOVABLE
-
40646-140 NUTNUT
-
50646-295 PIN, CAM ARMPIN, CAM ARM
-
60623-392 NUT, LOCKNUT, LOCK
-
70746-588 ARM, CAM (INC. 8) (MC)ARM, CAM (INC. 8) (MC)
-
70746-600 ARM, CAM (INC. 8) (5, 9, 000 FT ALT./MC)ARM, CAM (INC. 8) (5, 9, 000 FT ALT./MC)
-
70746-608 ARM, CAM (INC. 8) (OVER 9, 000 FT ALT./MC)ARM, CAM (INC. 8) (OVER 9, 000 FT ALT./MC)
-
80646-160 BEARING, CAM ARMBEARING, CAM ARM
-
90646-101 WASHER, CAM ARMWASHER, CAM ARM
-
100646-265 WASHER, SPACERWASHER, SPACER
-
110746-090 SPIDER ASSEMBLY (INC. 12, 16)SPIDER ASSEMBLY (INC. 12, 16)
-
120646-270 PIN, SPIDERPIN, SPIDER
-
130646-293 BUTTON, SPIDERBUTTON, SPIDER
-
140746-067 ROLLER, SPIDER (INC. 16)ROLLER, SPIDER (INC. 16)
-
150646-294 WASHER, ROLLERWASHER, ROLLER
-
160646-272 BEARING, ROLLERBEARING, ROLLER
-
170646-150 SPRING, DRIVE CLUTCH (SILVER)SPRING, DRIVE CLUTCH (SILVER)
-
170646-149 SPRING, DRIVE CLUTCH (RED) (OVER 5, 000 FT ALT.)SPRING, DRIVE CLUTCH (RED) (OVER 5, 000 FT ALT.)
-
180746-086 COVERCOVER
-
198051-212 WASHER, LOCKWASHER, LOCK
