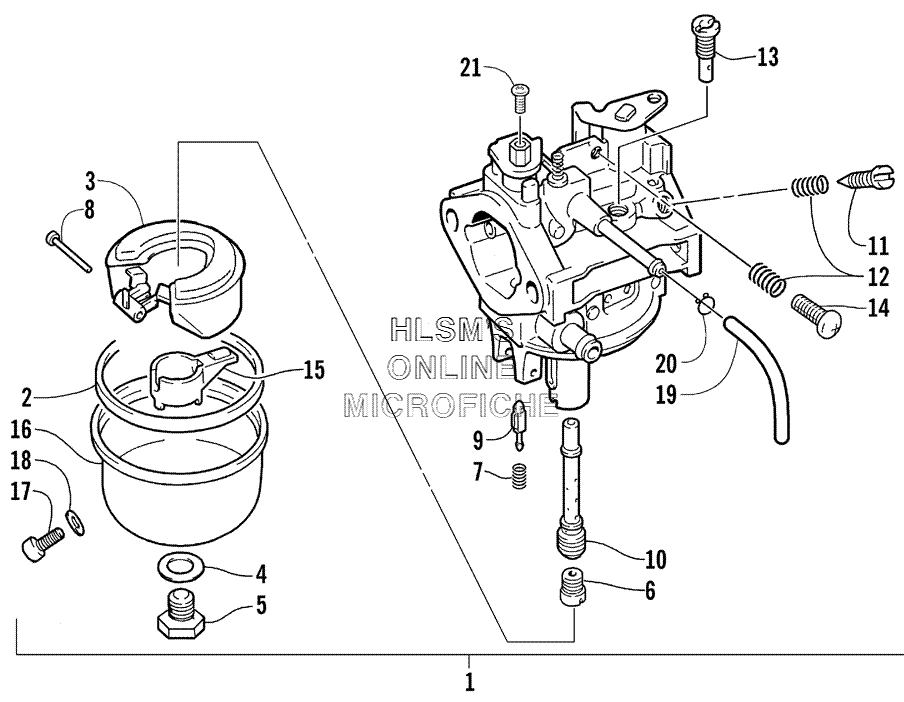

CARBURETOR для Arctic Cat Z 120 - 2000 года выпуска
-
№АртикулНазвание
-
10694-010 CARBURETOR ASSEMBLY (INC. 2, 21)CARBURETOR ASSEMBLY (INC. 2, 21)
-
20691-423 . GASKET, FLOAT CHAMBER. GASKET, FLOAT CHAMBER
-
30691-424 . FLOAT. FLOAT
-
40691-422 . GASKET, DRAIN PLUG. GASKET, DRAIN PLUG
-
50691-421 . PLUG, DRAIN. PLUG, DRAIN
-
63003-189 . MAIN JET (72.5). MAIN JET (72.5)
-
70691-428 . SPRING, NEEDLE JET. SPRING, NEEDLE JET
-
80693-536 . PIN, FLOAT. PIN, FLOAT
-
90693-055 . NEEDLE JET. NEEDLE JET
-
100693-056 . NOZZLE. NOZZLE
-
110691-102 . ADJUSTER. ADJUSTER
-
120691-272 . SPRING. SPRING
-
130693-538 . PILOT JET (37.5). PILOT JET (37.5)
-
136506-263 . PILOT JET, OPTIONAL. PILOT JET, OPTIONAL
-
136506-262 . PILOT JET (47.5) OPTIONAL. PILOT JET (47.5) OPTIONAL
-
136506-261 . PILOT JET (45) OPTIONAL. PILOT JET (45) OPTIONAL
-
140693-315 . SCREW. SCREW
-
150691-426 . RING. RING
-
160693-283 . CHAMBER, FLOAT. CHAMBER, FLOAT
-
170693-284 . SCREW, DRAIN. SCREW, DRAIN
-
180693-285 . GASKET, DRAIN SCREW. GASKET, DRAIN SCREW
-
190694-012 . HOSE, GASLINE. HOSE, GASLINE
-
200694-011 . CLAMP, HOSE. CLAMP, HOSE
-
210694-025 . SCREW. SCREW
