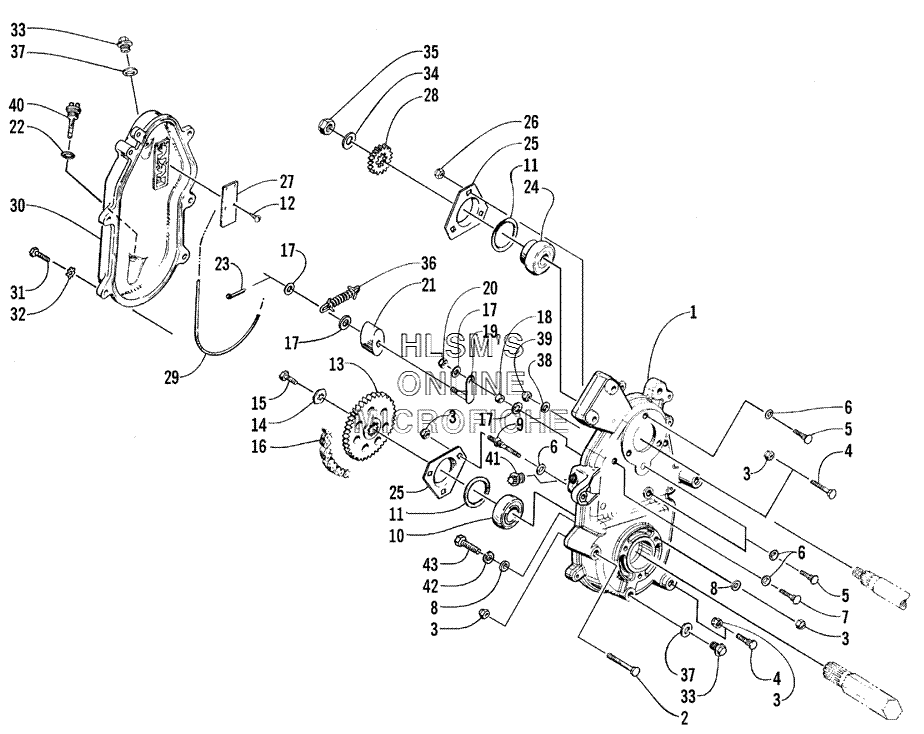

DRIVE/DROPCASE ASSEMBLY для Arctic Cat Z 370 ES - 2000 года выпуска
-
№АртикулНазвание
-
10702-308 DROPCASE W/PLUGS (INC. 5, 7, AND 9)DROPCASE W/PLUGS (INC. 5, 7, AND 9)
-
28011-143 BOLT, CARRIAGEBOLT, CARRIAGE
-
38040-426 NUT, LOCKNUT, LOCK
-
48011-139 BOLT, CARRIAGEBOLT, CARRIAGE
-
50123-523 BOLT, RIBBEDBOLT, RIBBED
-
60607-025 O-RING, STUDO-RING, STUD
-
70623-117 BOLT, RIBBEDBOLT, RIBBED
-
88050-247 WASHERWASHER
-
90623-317 STUDSTUD
-
101602-051 BEARING, 1 IN.BEARING, 1 IN.
-
110107-003 SEAL, O-RINGSEAL, O-RING
-
120623-081 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
130602-938 SPROCKET (44 TEETH)SPROCKET (44 TEETH)
-
140124-091 WASHER, PYRAMIDALWASHER, PYRAMIDAL
-
158012-222 SCREW, CAPSCREW, CAP
-
160107-372 CHAIN, 72PCHAIN, 72P
-
178050-212 WASHERWASHER
-
180107-234 BUSHING, TIGHTENER ARMBUSHING, TIGHTENER ARM
-
190107-226 ARM, TIGHTENERARM, TIGHTENER
-
200623-122 NUT, LOCKNUT, LOCK
-
210107-411 PAD, TIGHTENERPAD, TIGHTENER
-
220670-183 O, O-RINGIL LEVEL STICKO, O-RINGIL LEVEL STICK
-
230123-082 PIN, COTTERPIN, COTTER
-
241602-052 BEARING, 7/8 IN.BEARING, 7/8 IN.
-
250602-198 PLATE, FLANGEPLATE, FLANGE
-
268041-426 NUT, LOCKNUT, LOCK
-
270602-971 COVER, OIL VENTCOVER, OIL VENT
-
280107-341 SPROCKET (18 TEETH)SPROCKET (18 TEETH)
-
290602-437 SEAL, DROPCASESEAL, DROPCASE
-
300602-989 COVER, DROPCASECOVER, DROPCASE
-
318002-134 SCREW, CAPSCREW, CAP
-
328053-242 WASHER, LOCK, EXTERNAL TOOTHWASHER, LOCK, EXTERNAL TOOTH
-
330623-293 PLUG, DROPCASEPLUG, DROPCASE
-
340623-231 WASHER, SPRINGWASHER, SPRING
-
350123-310 NUT, LOCKNUT, LOCK
-
360707-026 SPRING ASSEMBLYSPRING ASSEMBLY
-
370123-641 WASHER, FIBERWASHER, FIBER
-
380623-094 WASHERWASHER
-
398042-426 NUTNUT
-
400602-462 STICK, OIL LEVELSTICK, OIL LEVEL
-
410602-857 PLUG, DROPCASEPLUG, DROPCASE
-
428051-247 WASHER, LOCKWASHER, LOCK
-
438002-136 SCREW, CAPSCREW, CAP
