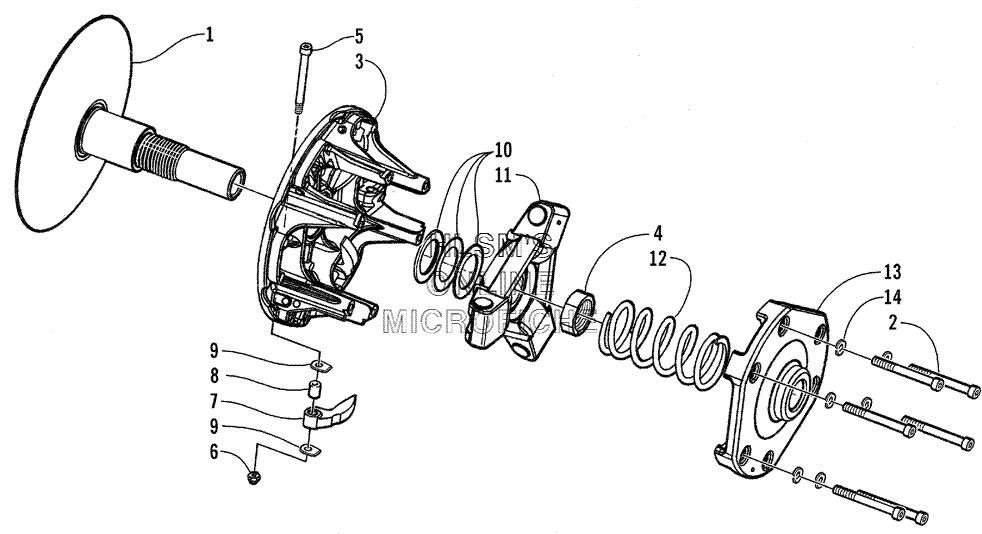

DRIVE CLUTCH для Arctic Cat Z 440 Sno Pro (International) - 2000 года выпуска
-
№АртикулНазвание
-
-0725-314 DRIVE CLUTCH ASSEMBLYDRIVE CLUTCH ASSEMBLY
-
10646-319 SHEAVE, STATIONARYSHEAVE, STATIONARY
-
20623-596 SCREW, CAPSCREW, CAP
-
30646-289 SHEAVE, MOVABLE (INC. 2)SHEAVE, MOVABLE (INC. 2)
-
40646-140 NUTNUT
-
50646-295 PIN, CAM ARMPIN, CAM ARM
-
60623-392 NUT, LOCKNUT, LOCK
-
70746-588 ARM, CAM (INC. 8)ARM, CAM (INC. 8)
-
70746-534 ARM, CAM (INC. 8) (5, 000, 9, 000 FT ALT.)ARM, CAM (INC. 8) (5, 000, 9, 000 FT ALT.)
-
70746-529 ARM, CAM (INC. 8) (OVER 9, 000 FT ALT.)ARM, CAM (INC. 8) (OVER 9, 000 FT ALT.)
-
80646-160 BEARING, CAM ARMBEARING, CAM ARM
-
90646-101 WASHER, CAM ARMWASHER, CAM ARM
-
100646-265 WASHER, SPACERWASHER, SPACER
-
110746-092 SPIDER ASSEMBLYSPIDER ASSEMBLY
-
120646-229 SPRING, DRIVE CLUTCH (YELLOW/WHITE)SPRING, DRIVE CLUTCH (YELLOW/WHITE)
-
130646-290 COVERCOVER
-
148051-212 WASHER, LOCKWASHER, LOCK
