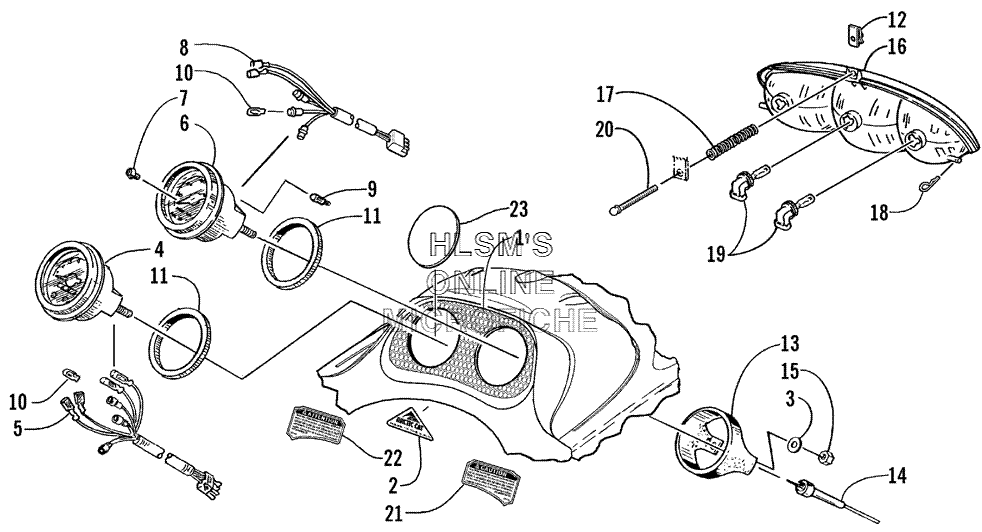

HEADLIGHT AND INSTRUMENTS для Arctic Cat Z 440 Sno Pro (USA) - 2000 года выпуска
-
№АртикулНазвание
-
13611-490 DECAL, INSTRUMENT, HOODDECAL, INSTRUMENT, HOOD
-
23611-611 DECAL, "MADE IN U.S.A.", DOMEDDECAL, "MADE IN U.S.A.", DOMED
-
38050-212 WASHERWASHER
-
40620-236 TACHOMETER (INC. 5)TACHOMETER (INC. 5)
-
50620-215 HARNESS, TACHOMETER BULBHARNESS, TACHOMETER BULB
-
60620-238 SPEEDOMETER (INC. 7, 10)SPEEDOMETER (INC. 7, 10)
-
70620-073 KNOB, TRIPMETERKNOB, TRIPMETER
-
80620-151 HARNESS, SPEEDOMETER BULBHARNESS, SPEEDOMETER BULB
-
90620-149 BULB, WARNING/INDICATORBULB, WARNING/INDICATOR
-
100230-020 BULB, INSTRUMENTBULB, INSTRUMENT
-
110620-135 RING, RUBBER CUSHIONRING, RUBBER CUSHION
-
120623-757 NUT, UNUT, U
-
130620-134 BACKCLAMP, TACHOMETER/SPEEDOMETERBACKCLAMP, TACHOMETER/SPEEDOMETER
-
140620-113 CABLE, SPEEDOMETERCABLE, SPEEDOMETER
-
150623-038 NUT W/LOCK WASHERNUT W/LOCK WASHER
-
160609-487 LENS/REFLECTOR, HEADLIGHTLENS/REFLECTOR, HEADLIGHT
-
170623-466 SPRING, ADJUSTER, HEADLIGHTSPRING, ADJUSTER, HEADLIGHT
-
180623-847 CLIP, HAIRPINCLIP, HAIRPIN
-
190609-251 BULB, HEADLIGHT, HIGH BEAMBULB, HEADLIGHT, HIGH BEAM
-
200623-467 SCREW, THUMBSCREW, THUMB
-
213611-488 DECAL, CAUTION, FUEL (ENGLISH)DECAL, CAUTION, FUEL (ENGLISH)
-
223611-489 DECAL, CAUTION, FUEL (FRENCH)DECAL, CAUTION, FUEL (FRENCH)
-
232606-069 PLUG, GAUGE HOLEPLUG, GAUGE HOLE
