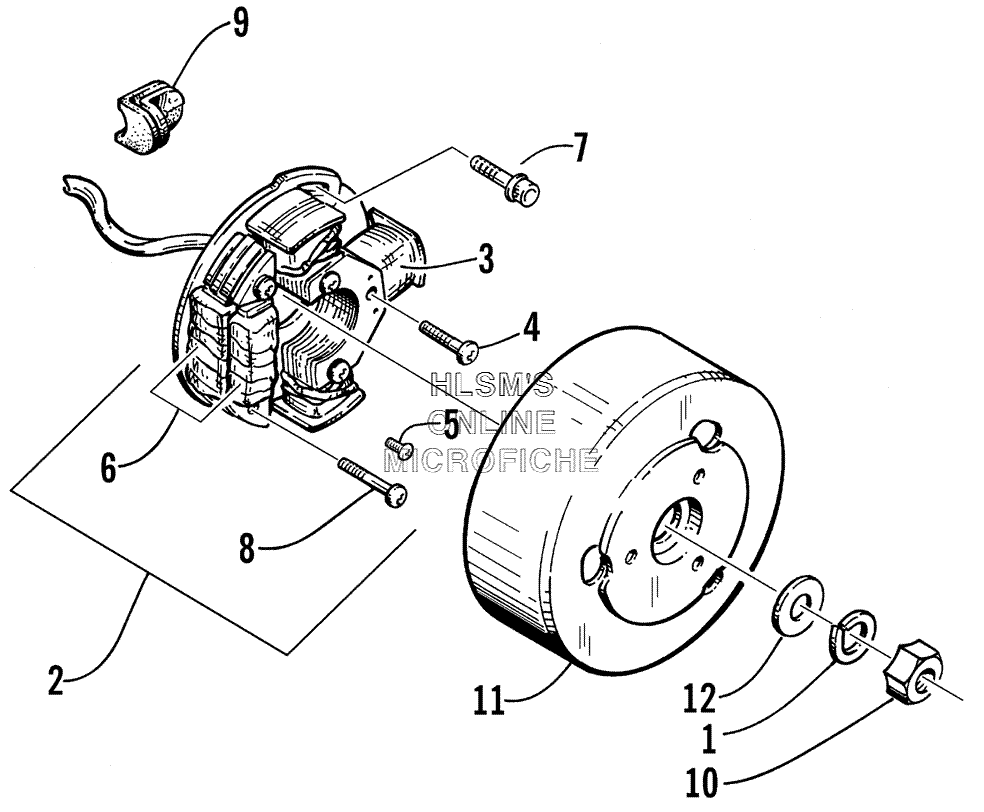

MAGNETO для Arctic Cat Z 440 - 2000 года выпуска
-
№АртикулНазвание
-
13004-345 WASHER, LOCKWASHER, LOCK
-
23005-346 STATOR ASSY. (INC. 3, 8)STATOR ASSY. (INC. 3, 8)
-
33003-013 . COIL, LIGHTING. COIL, LIGHTING
-
43005-535 . SCREW, CAP. SCREW, CAP
-
53004-545 . SCREW. SCREW
-
63005-376 . COIL SET, PRIMARY. COIL SET, PRIMARY
-
73005-171 . SCREW, CAP. SCREW, CAP
-
83004-634 . SCREW, CAP. SCREW, CAP
-
93002-585 GROMMETGROMMET
-
103004-380 NUTNUT
-
113005-555 ROTOR/FLYWHEELROTOR/FLYWHEEL
-
123005-175 WASHERWASHER
