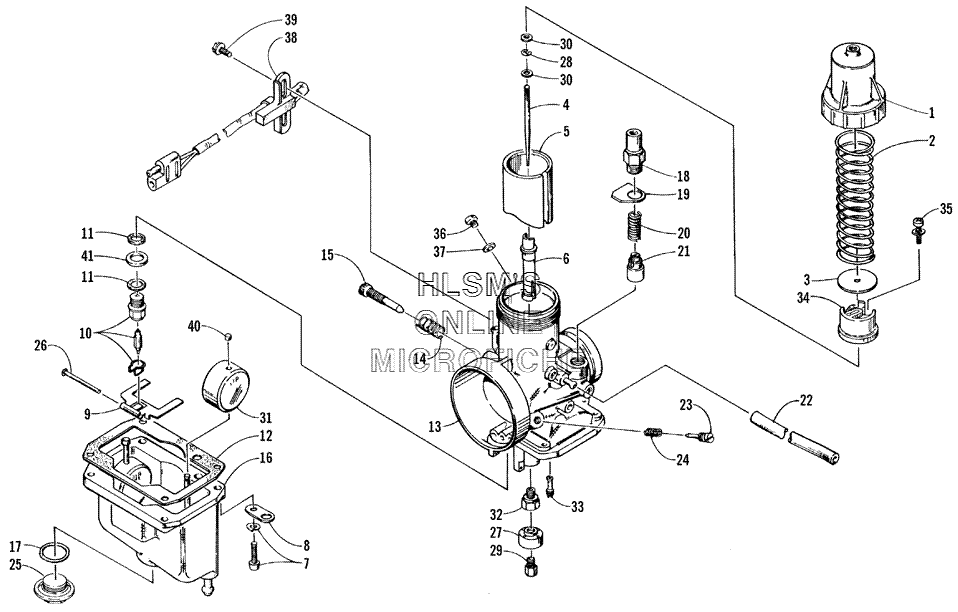

CARBURETOR VM38-424 для Arctic Cat ZL 550 ESR - 2000 года выпуска
-
№АртикулНазвание
-
-0770-379 CARBURETOR ASSY.CARBURETOR ASSY.
-
16505-582 TOP, MIXING CHAMBERTOP, MIXING CHAMBER
-
26505-584 SPRING, THROTTLE VALVESPRING, THROTTLE VALVE
-
36505-588 PLATEPLATE
-
46505-236 JET NEEDLE 6DH8, 3JET NEEDLE 6DH8, 3
-
46505-236 JET NEEDLE 6DH8, 2 (OVER 9, 000 FT ALT.)JET NEEDLE 6DH8, 2 (OVER 9, 000 FT ALT.)
-
56505-643 PISTON VALVE CA 3.0, NICKELPISTON VALVE CA 3.0, NICKEL
-
66505-595 NEEDLE JET P, 2 (480)NEEDLE JET P, 2 (480)
-
66505-598 NEEDLE JET P, 0 (480) (OVER 5, 000 FT ALT.)NEEDLE JET P, 0 (480) (OVER 5, 000 FT ALT.)
-
76505-195 SCREW W/WASHERSCREW W/WASHER
-
86505-094 PLATE, HOSEPLATE, HOSE
-
96505-638 ARM, FLOATARM, FLOAT
-
106505-171 NEEDLE VALVE ASSY.NEEDLE VALVE ASSY.
-
116505-102 WASHER, VALVE SEATWASHER, VALVE SEAT
-
126505-197 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
146505-021 SPRING, THROTTLE STOPSPRING, THROTTLE STOP
-
156505-101 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
166505-637 CHAMBER, FLOATCHAMBER, FLOAT
-
176505-622 O-RINGO-RING
-
186505-188 CAP, STARTER PLUNGERCAP, STARTER PLUNGER
-
196505-193 WASHERWASHER
-
206505-033 SPRING, STARTER PLUNGERSPRING, STARTER PLUNGER
-
216505-035 PLUNGER, STARTERPLUNGER, STARTER
-
226505-280 TUBE, AIR VENTTUBE, AIR VENT
-
236505-019 SCREW, PILOT AIRSCREW, PILOT AIR
-
246505-020 SPRING, PILOT AIR SCREWSPRING, PILOT AIR SCREW
-
256505-617 PLUG, DRAINPLUG, DRAIN
-
266505-153 PIN, FLOAT ARMPIN, FLOAT ARM
-
276505-620 RING, BAFFLERING, BAFFLE
-
286505-610 E, CLIPE, CLIP
-
296505-076 MAIN JET 340MAIN JET 340
-
306505-437 WASHER, E, CLIPWASHER, E, CLIP
-
316505-640 FLOATFLOAT
-
326505-199 SCREW, GUIDESCREW, GUIDE
-
336505-047 PILOT JET 40PILOT JET 40
-
340770-045 BLOCK, MAGNETBLOCK, MAGNET
-
356505-591 SCREW W/WASHERSCREW W/WASHER
-
366505-583 SCREW, CAPSCREW, CAP
-
376505-399 WASHERWASHER
-
380630-076 SWITCH, MAGNETIC, CARBURETORSWITCH, MAGNETIC, CARBURETOR
-
390623-137 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
406505-010 CAPCAP
-
416505-612 WASHERWASHER
