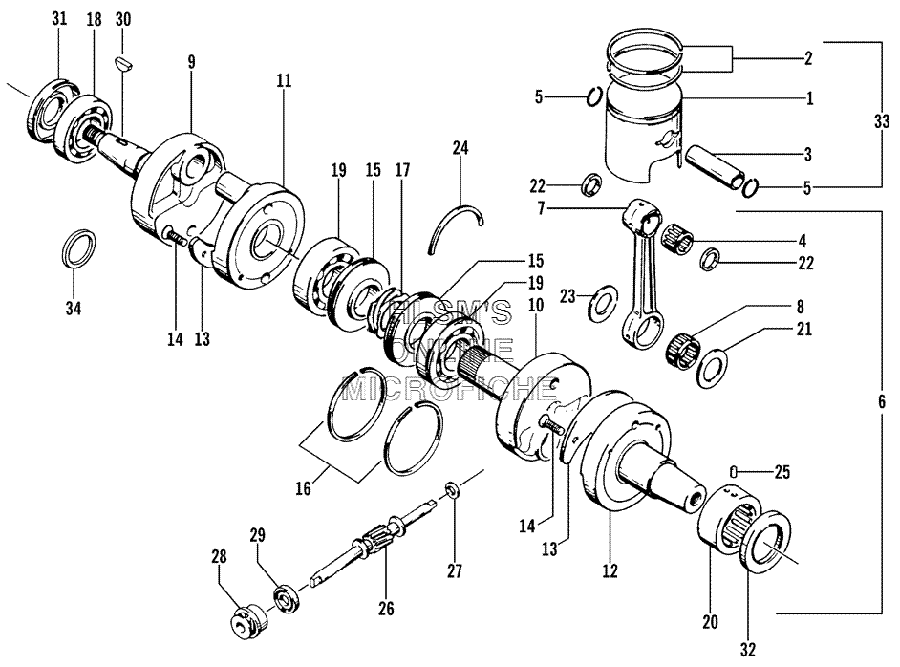

PISTON AND CRANKSHAFT для Arctic Cat ZR 440 Sno Pro (USA) - 2000 года выпуска
-
№АртикулНазвание
-
23004-768 RING ASSY.RING ASSY.
-
33005-363 PIN, PISTONPIN, PISTON
-
43003-107 BEARINGBEARING
-
53003-537 CIRCLIPCIRCLIP
-
63005-725 CRANKSHAFT ASSY. (INC. 7, 21 AND 23)CRANKSHAFT ASSY. (INC. 7, 21 AND 23)
-
73004-955 ROD, CONNECTINGROD, CONNECTING
-
83008-423 BEARINGBEARING
-
93005-726 CRANKSHAFT (RIGHT)CRANKSHAFT (RIGHT)
-
103004-958 CRANKSHAFT (CENTER)CRANKSHAFT (CENTER)
-
113005-260 WHEELWHEEL
-
123005-259 CRANKSHAFT (LEFT)CRANKSHAFT (LEFT)
-
133004-961 BALANCERBALANCER
-
143004-372 SCREW, MACHINESCREW, MACHINE
-
153004-799 RACE (MIDDLE) SEALRACE (MIDDLE) SEAL
-
163004-800 RINGRING
-
173005-362 GEAR, OIL PUMP DRIVEGEAR, OIL PUMP DRIVE
-
183005-412 BEARING (RIGHT)BEARING (RIGHT)
-
193003-164 BEARING (MIDDLE)BEARING (MIDDLE)
-
203003-805 BEARING, CRANKCASE (LEFT)BEARING, CRANKCASE (LEFT)
-
213003-933 WASHERWASHER
-
223004-780 WASHERWASHER
-
233003-782 WASHERWASHER
-
243003-216 C, RINGC, RING
-
253003-658 PIN, ALIGNMENTPIN, ALIGNMENT
-
263005-319 GEAR, OIL PUMP DRIVENGEAR, OIL PUMP DRIVEN
-
273005-049 SHIM, OIL PUMP SHAFT, T:1.3 MMSHIM, OIL PUMP SHAFT, T:1.3 MM
-
283402-360 SEAL, MECHANICAL WATER PUMPSEAL, MECHANICAL WATER PUMP
-
293004-760 SEAL, WATER, OIL PUMPSEAL, WATER, OIL PUMP
-
303010-070 KEYKEY
-
313005-188 SEAL, OIL (RIGHT)SEAL, OIL (RIGHT)
-
323003-759 SEAL, OIL (LEFT)SEAL, OIL (LEFT)
-
333005-724 PISTON ASSY. (INC. 1, 2, AND 5)PISTON ASSY. (INC. 1, 2, AND 5)
-
343005-603 WASHERWASHER
