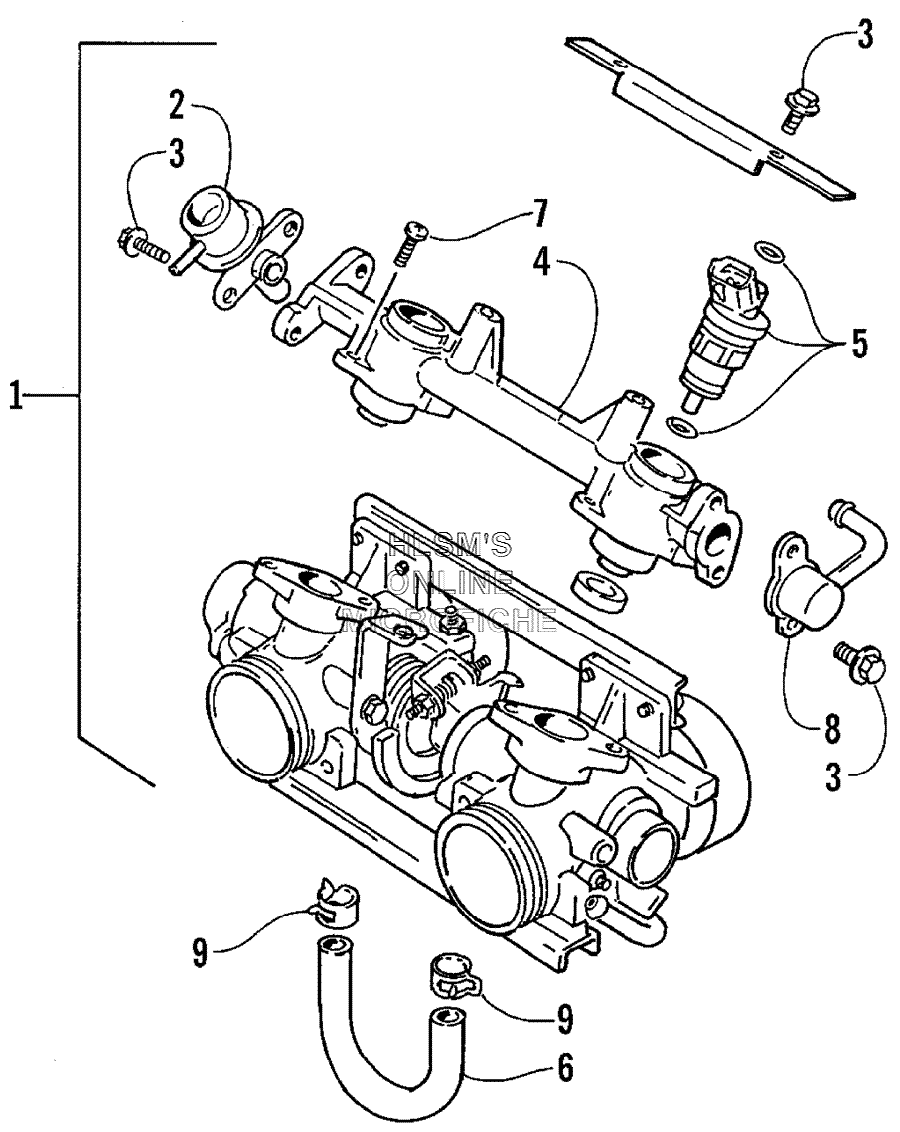

THROTTLE BODY ASSY. для Arctic Cat ZR 500 EFI - 2000 года выпуска
-
№АртикулНазвание
-
13005-611 THROTTLE BODY, ASSY. CIRCLETHROTTLE BODY, ASSY. CIRCLE
-
13005-608 THROTTLE BODY, ASSY. SQUARETHROTTLE BODY, ASSY. SQUARE
-
13005-612 THROTTLE BODY, ASSY. TRIANGLETHROTTLE BODY, ASSY. TRIANGLE
-
23005-074 REGULATOR, FUELREGULATOR, FUEL
-
33004-436 SCREW, CAPSCREW, CAP
-
43005-269 RAIL, FUELRAIL, FUEL
-
53005-075 INJECTOR, FUEL, ASSY. CIRCLEINJECTOR, FUEL, ASSY. CIRCLE
-
53005-076 INJECTOR, FUEL, ASSY. SQUAREINJECTOR, FUEL, ASSY. SQUARE
-
53005-077 INJECTOR, FUEL, ASSY. TRIANGLEINJECTOR, FUEL, ASSY. TRIANGLE
-
63005-103 HOSEHOSE
-
73005-320 SCREWSCREW
-
83005-079 PIPE, FUEL INLETPIPE, FUEL INLET
-
93004-193 CLAMP, HOSECLAMP, HOSE
