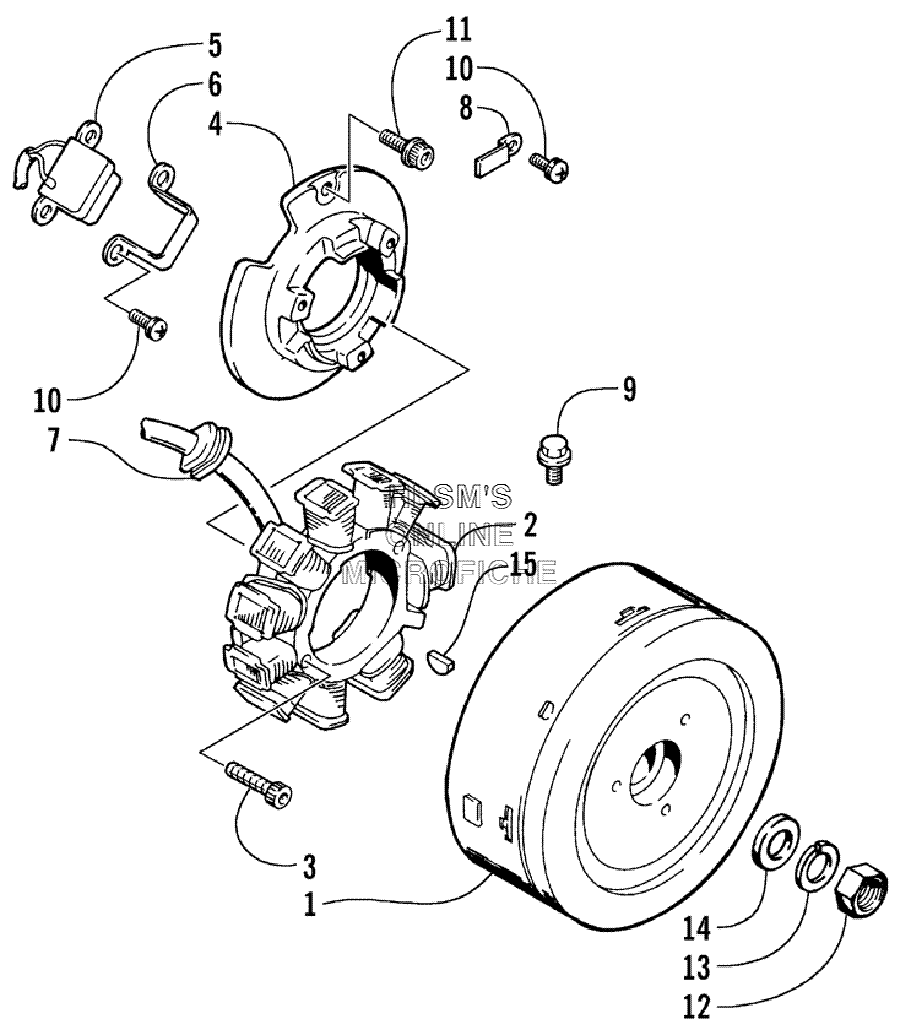

MAGNETO для Arctic Cat ZR 500 - 2000 года выпуска
-
№АртикулНазвание
-
13005-573 ROTOR/FLYWHEELROTOR/FLYWHEEL
-
23005-248 STATOR ASSY.STATOR ASSY.
-
33004-484 BOLT, STATORBOLT, STATOR
-
43004-270 BASE, STATOR, PLATEBASE, STATOR, PLATE
-
53004-141 SENSOR, IGNITION TIMINGSENSOR, IGNITION TIMING
-
63003-972 CLAMPCLAMP
-
73008-034 GROMMETGROMMET
-
83002-317 CLAMPCLAMP
-
93004-338 SCREW, CAPSCREW, CAP
-
103004-706 SCREWSCREW
-
113004-378 SCREW, CAPSCREW, CAP
-
120691-370 NUTNUT
-
133004-345 WASHER, LOCKWASHER, LOCK
-
143005-175 WASHERWASHER
-
153004-540 KEYKEY
