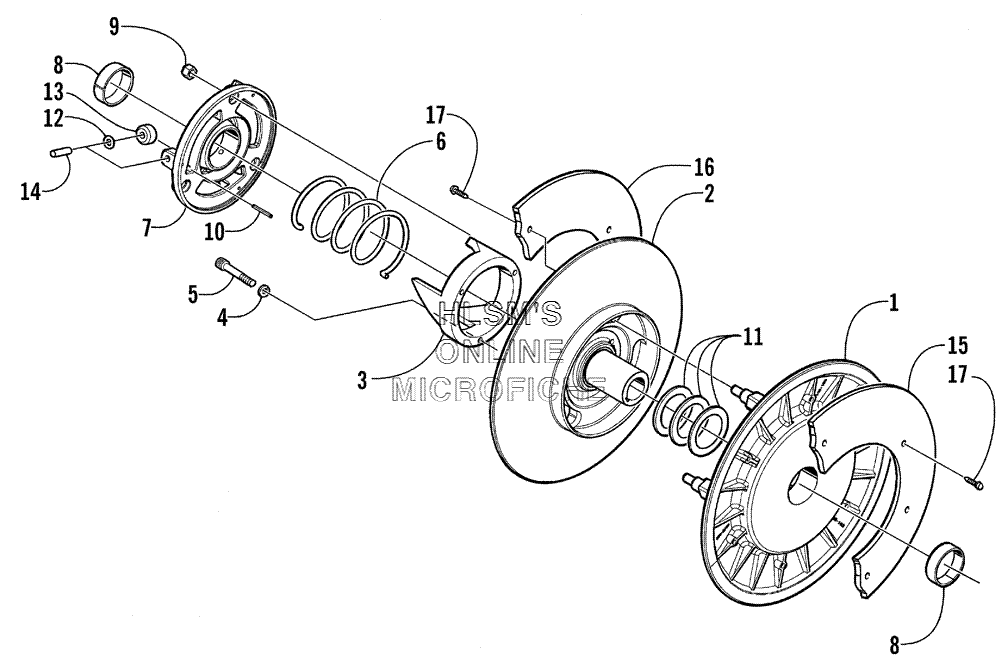

DRIVEN CLUTCH для Arctic Cat ZR 600 EFI - LE - 2000 года выпуска
-
№АртикулНазвание
-
10748-023 SHEAVE, MOVABLE (INC. ONE NO. 8)SHEAVE, MOVABLE (INC. ONE NO. 8)
-
20748-021 SHEAVE, STATIONARYSHEAVE, STATIONARY
-
30648-024 BRACKET, TORQUE 55/53BRACKET, TORQUE 55/53
-
30648-014 BRACKET, TORQUE 49 (OVER 5, 000 FT ALT.)BRACKET, TORQUE 49 (OVER 5, 000 FT ALT.)
-
48051-152 WASHER, LOCKWASHER, LOCK
-
58005-404 SCREW, SOCKET HEADSCREW, SOCKET HEAD
-
60148-227 SPRING, DRIVEN CLUTCH (YELLOW)SPRING, DRIVEN CLUTCH (YELLOW)
-
70748-018 PLATE, ROLLER, ASSEMBLY (INC. 8)PLATE, ROLLER, ASSEMBLY (INC. 8)
-
80648-009 . BEARING. BEARING
-
98040-426 NUT, LOCKNUT, LOCK
-
108070-224 PIN, SPRINGPIN, SPRING
-
110148-198 WASHER, THRUST: 0.030 IN.WASHER, THRUST: 0.030 IN.
-
110148-199 WASHER, THRUST: 0.060 IN.WASHER, THRUST: 0.060 IN.
-
120648-082 WASHER, THRUST, CAM ROLLERWASHER, THRUST, CAM ROLLER
-
130648-123 ROLLER, CAMROLLER, CAM
-
140648-097 PIN, CAM ROLLERPIN, CAM ROLLER
-
150148-224 COVER, SHEAVE, MOVABLECOVER, SHEAVE, MOVABLE
-
160148-225 COVER, SHEAVE, STATIONARYCOVER, SHEAVE, STATIONARY
-
170623-786 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
