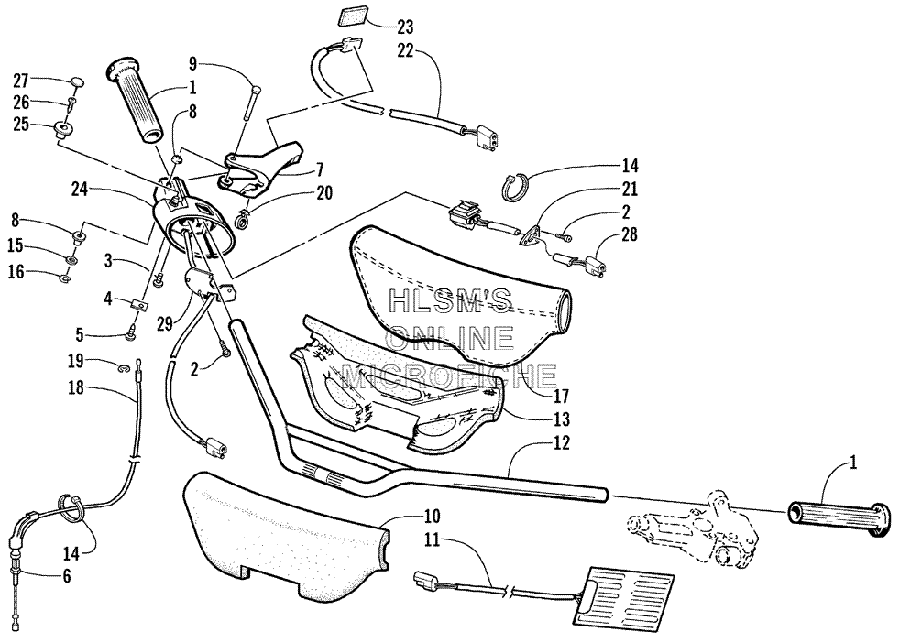

HANDLEBAR AND CONTROLS для Arctic Cat ZR 600 EFI (International) - 2000 года выпуска
-
№АртикулНазвание
-
10117-793 GRIP, HANDLEBARGRIP, HANDLEBAR
-
20609-312 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
30609-085 SCREW, MACHINESCREW, MACHINE
-
40609-319 CLAMP, HARNESS, SINGLECLAMP, HARNESS, SINGLE
-
50609-321 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
60623-464 NUT, LOCKING, THROTTLE CABLENUT, LOCKING, THROTTLE CABLE
-
70609-368 LEVER, THROTTLELEVER, THROTTLE
-
80609-038 SEAL, THROTTLESEAL, THROTTLE
-
90609-317 AXLE, LEVER, THROTTLEAXLE, LEVER, THROTTLE
-
100605-354 PAD, HANDLEBAR (FRONT)PAD, HANDLEBAR (FRONT)
-
110609-375 ELEMENT, HANDWARMERELEMENT, HANDWARMER
-
120705-287 HANDLEBARHANDLEBAR
-
130605-353 PAD, HANDLEBAR (REAR)PAD, HANDLEBAR (REAR)
-
140123-788 CABLE TIE, 7 IN.CABLE TIE, 7 IN.
-
150609-036 WASHERWASHER
-
160609-040 RING, RETAININGRING, RETAINING
-
170705-285 WRAP, HANDLEBARWRAP, HANDLEBAR
-
180687-120 CABLE, THROTTLECABLE, THROTTLE
-
190123-231 RING, RETAININGRING, RETAINING
-
200623-262 CLIP, WIRECLIP, WIRE
-
210609-378 PLATE, COVERPLATE, COVER
-
220609-373 ELEMENT, THUMBWARMERELEMENT, THUMBWARMER
-
230617-248 PAD, INSULATORPAD, INSULATOR
-
240609-390 CONTROL, THROTTLE (INC. 2, 3, 21, AND 25, 29)CONTROL, THROTTLE (INC. 2, 3, 21, AND 25, 29)
-
250609-282 . KNOB, EMERGENCY STOP. KNOB, EMERGENCY STOP
-
260623-215 . SCREW, SELF, TAPPING. SCREW, SELF, TAPPING
-
270609-283 . DECAL, MARK PLATE. DECAL, MARK PLATE
-
280609-382 . CONTROL, THUMBWARMER. CONTROL, THUMBWARMER
-
290609-316 . COVER, THROTTLE SWITCH. COVER, THROTTLE SWITCH
