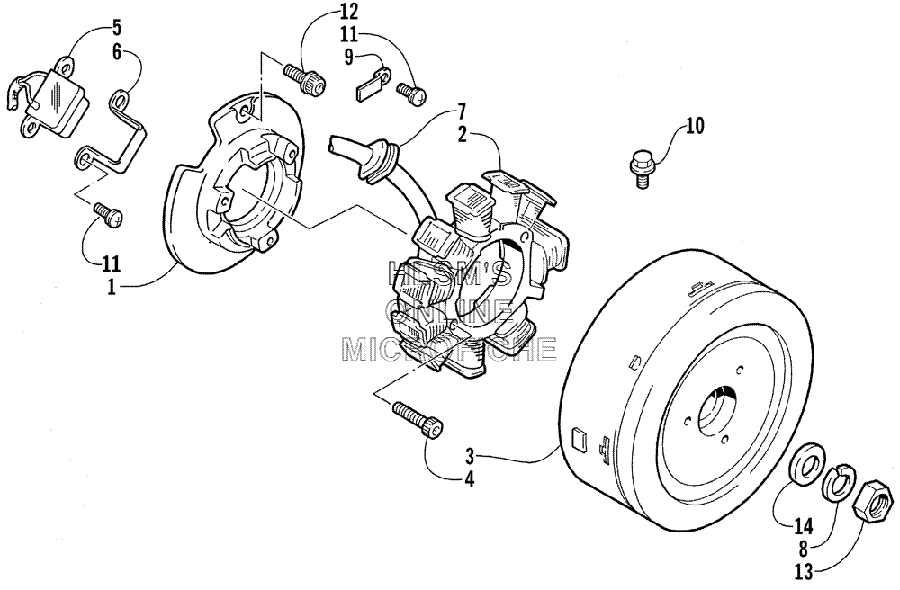

MAGNETO для Arctic Cat ZR 700 - LE - 2000 года выпуска
-
№АртикулНазвание
-
13005-487 BASE, STATOR, PLATEBASE, STATOR, PLATE
-
23005-522 COIL ASSY., STATORCOIL ASSY., STATOR
-
33005-523 ROTOR/FLYWHEELROTOR/FLYWHEEL
-
43005-524 SCREW, CAP, SOCKET HEADSCREW, CAP, SOCKET HEAD
-
53004-141 SENSOR, IGNITION TIMINGSENSOR, IGNITION TIMING
-
63003-972 CLAMP, COILCLAMP, COIL
-
73003-795 GROMMETGROMMET
-
83005-175 WASHER, LOCKWASHER, LOCK
-
93002-317 CLAMP, LEAD WIRECLAMP, LEAD WIRE
-
103004-338 SCREW, CAPSCREW, CAP
-
113004-706 SCREW, PHILLIPS, HEADSCREW, PHILLIPS, HEAD
-
123004-378 SCREW, CAPSCREW, CAP
-
130691-370 NUTNUT
-
143004-345 WASHERWASHER
