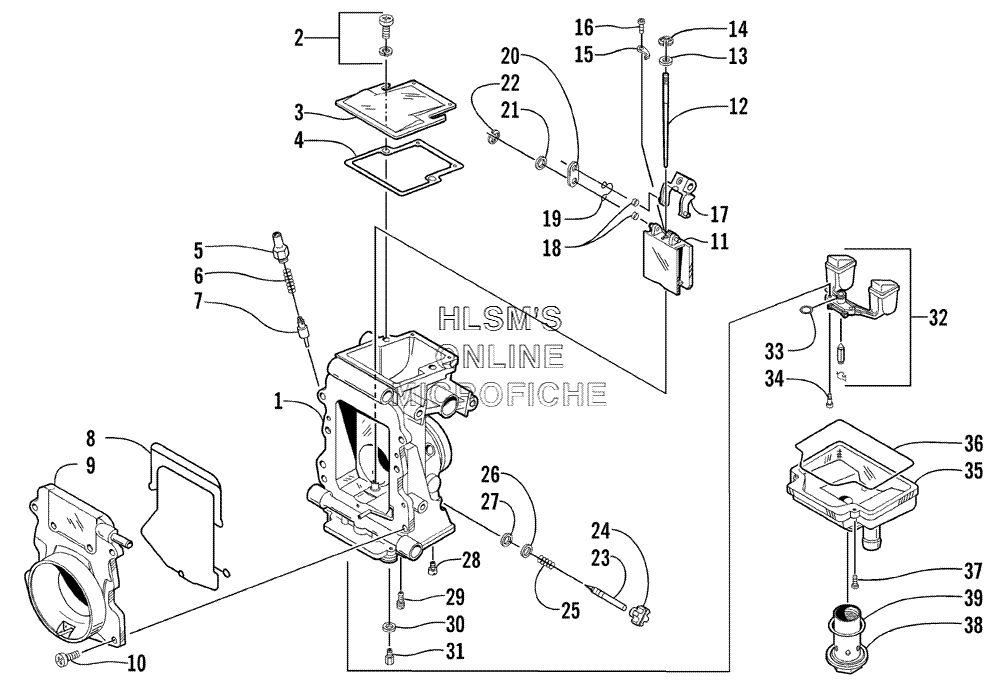

CARBURETOR TM40-B73 - INTERNAL PARTS для Arctic Cat ZR 700 (Black) - 2000 года выпуска
-
№АртикулНазвание
-
-1670-099 CARBURETOR TM40-B73 COMPLETE CARBURETORCARBURETOR TM40-B73 COMPLETE CARBURETOR
-
26505-591 SCREW ASSEMBLYSCREW ASSEMBLY
-
36506-142 CAP, TOPCAP, TOP
-
46506-034 GASKETGASKET
-
56506-137 CAP, STARTER PLUNGERCAP, STARTER PLUNGER
-
66506-138 SPRING, STARTER PLUNGERSPRING, STARTER PLUNGER
-
76506-139 STARTER PLUNGERSTARTER PLUNGER
-
86506-209 GASKETGASKET
-
96506-239 FUNNEL ASSEMBLYFUNNEL ASSEMBLY
-
106505-980 SCREWSCREW
-
116506-119 VALVE, THROTTLE CA 2.0VALVE, THROTTLE CA 2.0
-
126506-114 JET NEEDLE 9DH5-61-3JET NEEDLE 9DH5-61-3
-
126506-113 JET NEEDLE 9EH7-62-3 (5-9,000 FT ALT)JET NEEDLE 9EH7-62-3 (5-9,000 FT ALT)
-
126506-113 JET NEEDLE 9EH7-62-2 (OVER 9,000 FT ALT)JET NEEDLE 9EH7-62-2 (OVER 9,000 FT ALT)
-
136505-552 WASHER, E-CLIPWASHER, E-CLIP
-
146505-628 E-CLIPE-CLIP
-
156506-055 PLATE, JET NEEDLE RETAININGPLATE, JET NEEDLE RETAINING
-
166506-054 SCREW, RETAINING PLATESCREW, RETAINING PLATE
-
176506-047 LEVER ASSEMBLY - LEFTLEVER ASSEMBLY - LEFT
-
176506-043 LEVER ASSEMBLY - RIGHTLEVER ASSEMBLY - RIGHT
-
186506-053 BUSHING, CLIPBUSHING, CLIP
-
196506-040 CLIPCLIP
-
206506-039 PLATEPLATE
-
216506-052 WASHERWASHER
-
226506-051 E-RINGE-RING
-
236506-145 SCREW, FUEL MIXTURE 2.0SCREW, FUEL MIXTURE 2.0
-
246506-076 CAP, FUEL MIXTURE SCREWCAP, FUEL MIXTURE SCREW
-
256506-079 SPRING, FUEL MIXTURE SCREWSPRING, FUEL MIXTURE SCREW
-
266506-078 WASHERWASHER
-
276506-080 WASHER, RUBBERWASHER, RUBBER
-
286506-101 STARTER JET 135STARTER JET 135
-
296505-047 PILOT JET 40PILOT JET 40
-
306506-091 WASHERWASHER
-
316505-074 MAIN JET 320MAIN JET 320
-
326506-208 FLOAT ASSEMBLY 1.8FLOAT ASSEMBLY 1.8
-
336506-100 O-RINGO-RING
-
346506-037 SCREW, FLOAT ARMSCREW, FLOAT ARM
-
356506-036 CHAMBER, FLOATCHAMBER, FLOAT
-
366506-038 O-RINGO-RING
-
376506-072 SCREWSCREW
-
386506-032 PLUG, DRAINPLUG, DRAIN
-
396505-185 O-RINGO-RING
