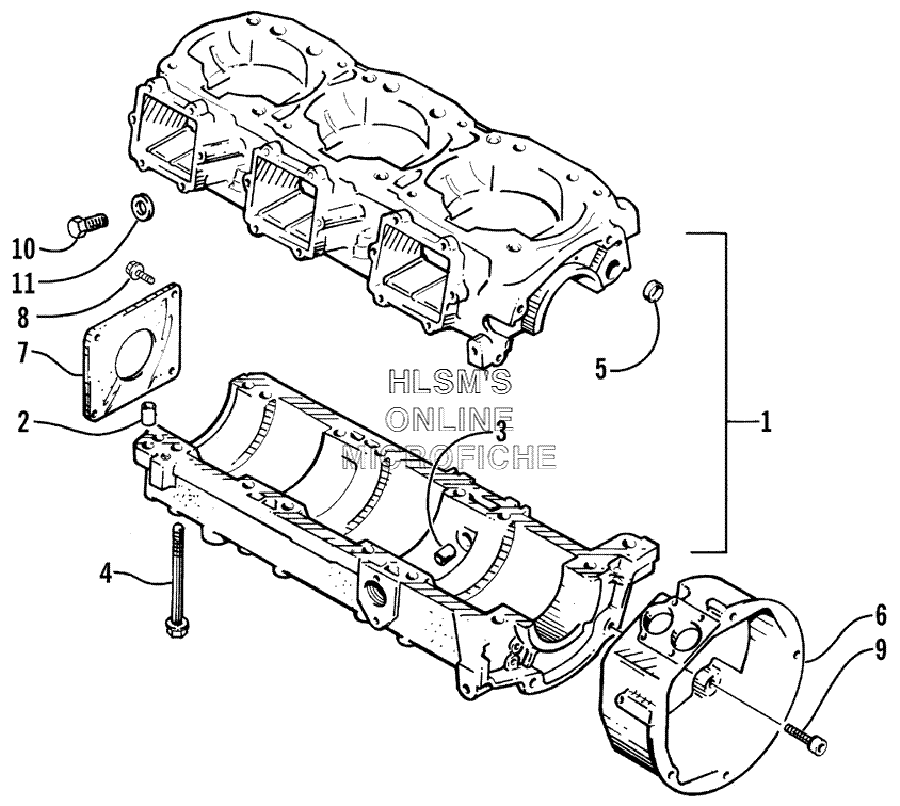

CRANKCASE ASSY. для Arctic Cat ZRT 600 (Black) - 2000 года выпуска
-
№АртикулНазвание
-
13005-017 CRANKCASE ASSY. (INC. 2, 5)CRANKCASE ASSY. (INC. 2, 5)
-
23003-646 . PIN, CRANKCASE. PIN, CRANKCASE
-
33003-647 . BUSHING, OIL PUMP SHAFT. BUSHING, OIL PUMP SHAFT
-
43004-881 . BOLT. BOLT
-
53004-782 PLUGPLUG
-
63003-945 CASE, MAGNETOCASE, MAGNETO
-
73004-775 PLATE, OIL SEALPLATE, OIL SEAL
-
83004-377 BOLTBOLT
-
93004-502 BOLTBOLT
-
103002-028 PLUG, CRANKCASEPLUG, CRANKCASE
-
113002-276 GASKETGASKET
