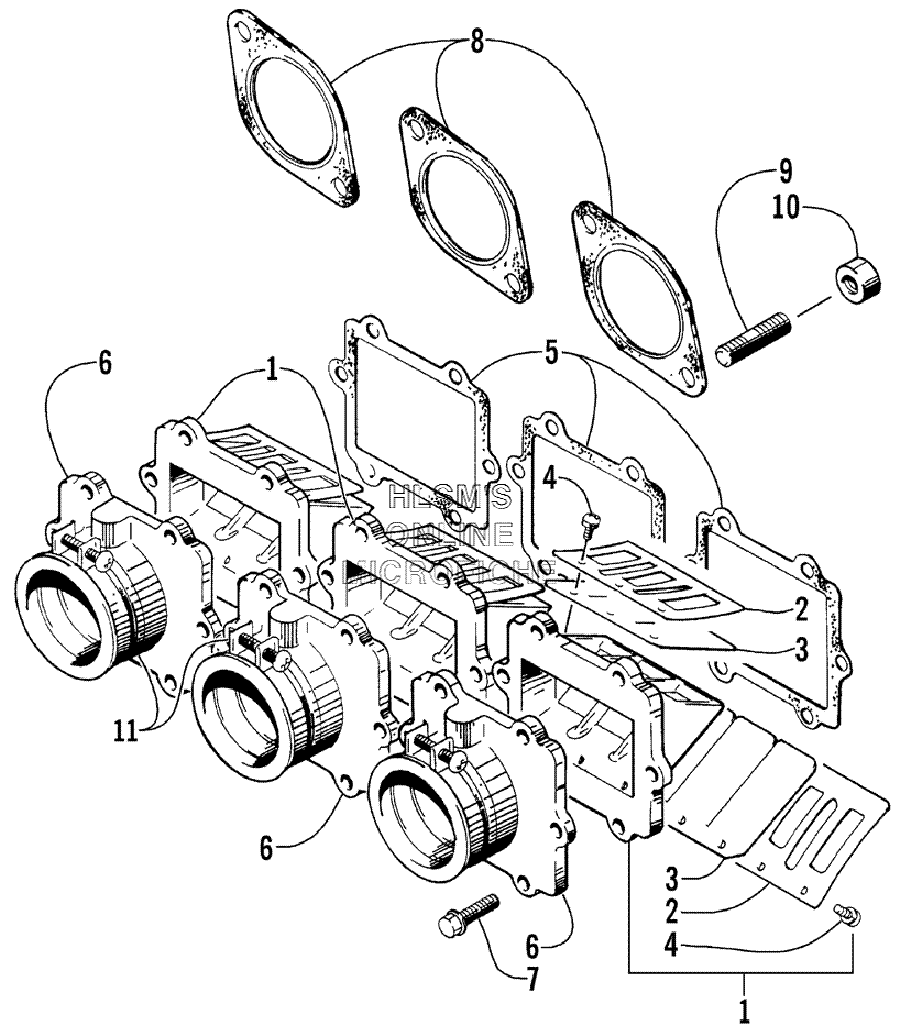

REED VALVE ASSY. для Arctic Cat ZRT 600 (Green) - 2000 года выпуска
-
№АртикулНазвание
-
13005-124 VALVE, REED, ASSY. (INC. 2, 4)VALVE, REED, ASSY. (INC. 2, 4)
-
23004-176 . STOPPER, REED VALVE. STOPPER, REED VALVE
-
33004-177 . VALVE, REED. VALVE, REED
-
43004-506 . SCREW, MACHINE. SCREW, MACHINE
-
53008-076 GASKET, REED VALVEGASKET, REED VALVE
-
63005-147 INTAKE FLANGE ASSY.INTAKE FLANGE ASSY.
-
73004-376 BOLTBOLT
-
83003-503 GASKET, EXHAUSTGASKET, EXHAUST
-
93004-279 BOLT, STUDBOLT, STUD
-
103004-326 NUTNUT
-
113004-212 CLAMP, INTAKECLAMP, INTAKE
