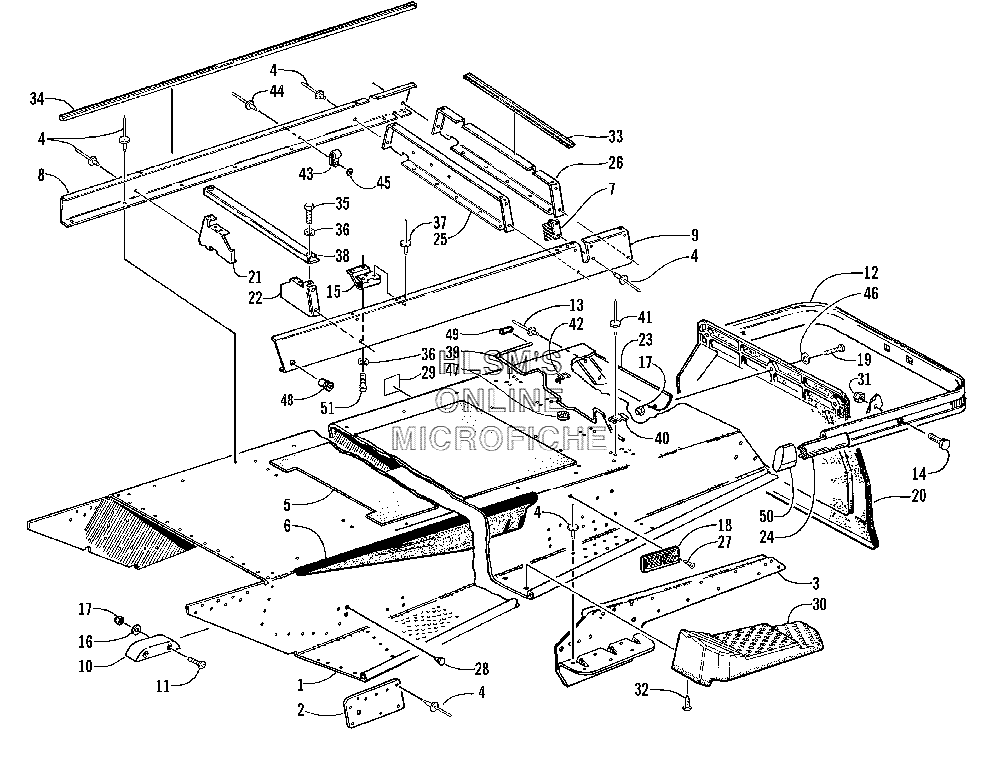

TUNNEL AND REAR BUMPER для Arctic Cat BEARCAT WIDE TRACK (USA) - 2001 года выпуска
-
№АртикулНазвание
-
10718-785 TUNNEL ASSY (INC. 3)TUNNEL ASSY (INC. 3)
-
20606-554 PLATE, SUSPENSION MOUNTING (FRONT)PLATE, SUSPENSION MOUNTING (FRONT)
-
30716-300 BRACKET, SUSPENSION MOUNTING (LEFT)BRACKET, SUSPENSION MOUNTING (LEFT)
-
30716-301 BRACKET, SUSPENSION MOUNTING (RIGHT)BRACKET, SUSPENSION MOUNTING (RIGHT)
-
48060-504 RIVETRIVET
-
50616-869 PAD, TOOLBOXPAD, TOOLBOX
-
63611-852 DECAL, TUNNEL (RIGHT)DECAL, TUNNEL (RIGHT)
-
63611-853 DECAL, TUNNEL (LEFT)DECAL, TUNNEL (LEFT)
-
71606-127 SEAL, SEAT RISERSEAL, SEAT RISER
-
80616-866 PLATE, SEAT RISER (RIGHT)PLATE, SEAT RISER (RIGHT)
-
90616-867 PLATE, SEAT RISER (LEFT)PLATE, SEAT RISER (LEFT)
-
100604-497 GUIDE, TRACKGUIDE, TRACK
-
110623-268 SCREW, MACHINESCREW, MACHINE
-
121606-362 BUMPER (REAR)BUMPER (REAR)
-
138060-484 RIVETRIVET
-
148011-040 BOLT, CARRIAGEBOLT, CARRIAGE
-
150623-579 HINGE, SEATHINGE, SEAT
-
168050-217 WASHERWASHER
-
178040-366 NUT, LOCKNUT, LOCK
-
180606-029 REFLECTOR (REAR) (RED)REFLECTOR (REAR) (RED)
-
198017-584 SCREW, MACHINESCREW, MACHINE
-
200616-884 SNOWFLAP, REVERSESNOWFLAP, REVERSE
-
210616-864 PLATE, SEAT RISER (FRONT/RIGHT)PLATE, SEAT RISER (FRONT/RIGHT)
-
220616-865 PLATE, SEAT RISER (FRONT/LEFT)PLATE, SEAT RISER (FRONT/LEFT)
-
230616-842 PLATE, END, TUNNELPLATE, END, TUNNEL
-
242606-128 INSERT, BUMPERINSERT, BUMPER
-
250616-948 PLATE, SEAT RISER (CENTER)PLATE, SEAT RISER (CENTER)
-
260616-868 PLATE, SEAT RISER (REAR)PLATE, SEAT RISER (REAR)
-
270623-269 CLIP, RETAININGCLIP, RETAINING
-
280606-983 PLUG, BODYPLUG, BODY
-
290411-053 DECAL, CE (STD)DECAL, CE (STD)
-
301606-478 FOOTREST (REAR) (RIGHT)FOOTREST (REAR) (RIGHT)
-
301606-479 FOOTREST (REAR) (LEFT)FOOTREST (REAR) (LEFT)
-
318041-366 NUT, LOCKNUT, LOCK
-
320623-057 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
330616-952 SEAL, SEAT, BASESEAL, SEAT, BASE
-
340616-953 SEAL, SEAT, BASESEAL, SEAT, BASE
-
358002-039 SCREW, CAPSCREW, CAP
-
368051-212 WASHER, LOCKWASHER, LOCK
-
378060-704 RIVETRIVET
-
380616-863 BRACKET, HOLD, DOWN, FUEL TANKBRACKET, HOLD, DOWN, FUEL TANK
-
391606-098 LEVER, SEAT LATCHLEVER, SEAT LATCH
-
400616-945 BRACKET, MOUNTING, SEAT LEVERBRACKET, MOUNTING, SEAT LEVER
-
418060-706 RIVETRIVET
-
420623-610 SPRING, LEVER RETURN (RIGHT)SPRING, LEVER RETURN (RIGHT)
-
430123-397 CLAMP, CABLECLAMP, CABLE
-
448060-428 RIVETRIVET
-
450123-149 WASHERWASHER
-
460623-184 WASHERWASHER
-
470623-078 DISC, VELCRODISC, VELCRO
-
480623-582 INSERTINSERT
-
490623-404 CAP, PROTECTORCAP, PROTECTOR
-
500616-396 CAP, BUMPER, ENDCAP, BUMPER, END
-
500616-397 CAP, BUMPER, ENDCAP, BUMPER, END
-
518002-042 SCREW, CAPSCREW, CAP
