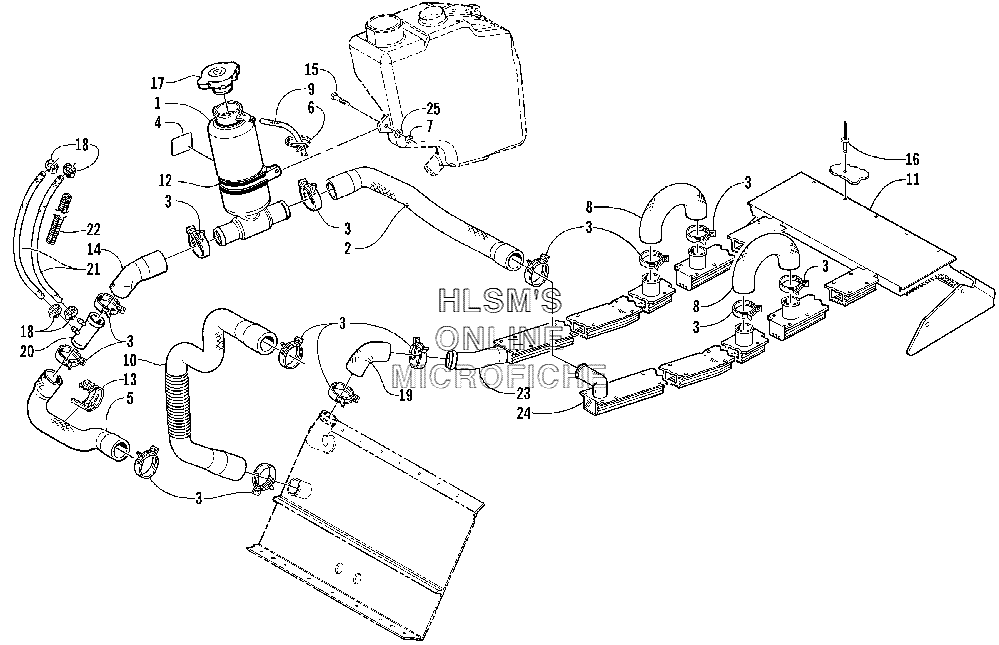

COOLING ASSEMBLY для Arctic Cat MOUNTAIN CAT 500 EFI (INTERNATIONAL) - 2001 года выпуска
-
№АртикулНазвание
-
11606-396 TANK, COOLANTTANK, COOLANT
-
20610-379 HOSE, COOLANT TANK/HEAT EXCHANGERHOSE, COOLANT TANK/HEAT EXCHANGER
-
30623-736 CLAMP, HOSECLAMP, HOSE
-
42611-758 DECAL, FILL LEVEL, COOLANT TANKDECAL, FILL LEVEL, COOLANT TANK
-
50610-386 HOSE, COOLANT, ENGINE/T, FITTINGHOSE, COOLANT, ENGINE/T, FITTING
-
60123-788 CABLE TIE, 7 IN.CABLE TIE, 7 IN.
-
78040-366 NUT, LOCKNUT, LOCK
-
80610-441 HOSE, COOLANT, HEAT EXCHANGERHOSE, COOLANT, HEAT EXCHANGER
-
90610-015 HOSE, VENT (100 FT)HOSE, VENT (100 FT)
-
90610-016 HOSE, VENT (25 FT)HOSE, VENT (25 FT)
-
100610-418 HOSE, COOLANT, ENGINE/HEAT EXCHANGER W/PROTECTORHOSE, COOLANT, ENGINE/HEAT EXCHANGER W/PROTECTOR
-
111706-253 HEAT EXCHANGER (REAR)HEAT EXCHANGER (REAR)
-
120623-761 CLAMP, COOLANT TANKCLAMP, COOLANT TANK
-
130623-540 CABLE TIE, TRIPLECABLE TIE, TRIPLE
-
140610-192 HOSE, COOLANT, COOLANT TANK/T, FITTINGHOSE, COOLANT, COOLANT TANK/T, FITTING
-
158017-580 SCREW, MACHINESCREW, MACHINE
-
168060-686 RIVETRIVET
-
170606-268 CAP, FILLER NECKCAP, FILLER NECK
-
180623-373 CLAMP, HOSECLAMP, HOSE
-
190610-244 HOSE, COOLANT HEAT EXCHANGER FRONT/HEAT EXCHANGERHOSE, COOLANT HEAT EXCHANGER FRONT/HEAT EXCHANGER
-
200616-065 T, FITTING, DOUBLET, FITTING, DOUBLE
-
210610-076 HOSE, COOLANT (10 FT)HOSE, COOLANT (10 FT)
-
220610-082 COVER, HOSECOVER, HOSE
-
231706-826 HEAT EXCHANGER (RIGHT)HEAT EXCHANGER (RIGHT)
-
241706-827 HEAT EXCHANGER (LEFT)HEAT EXCHANGER (LEFT)
-
250623-424 CLAMP, HOSECLAMP, HOSE
-
268050-217 WASHERWASHER
