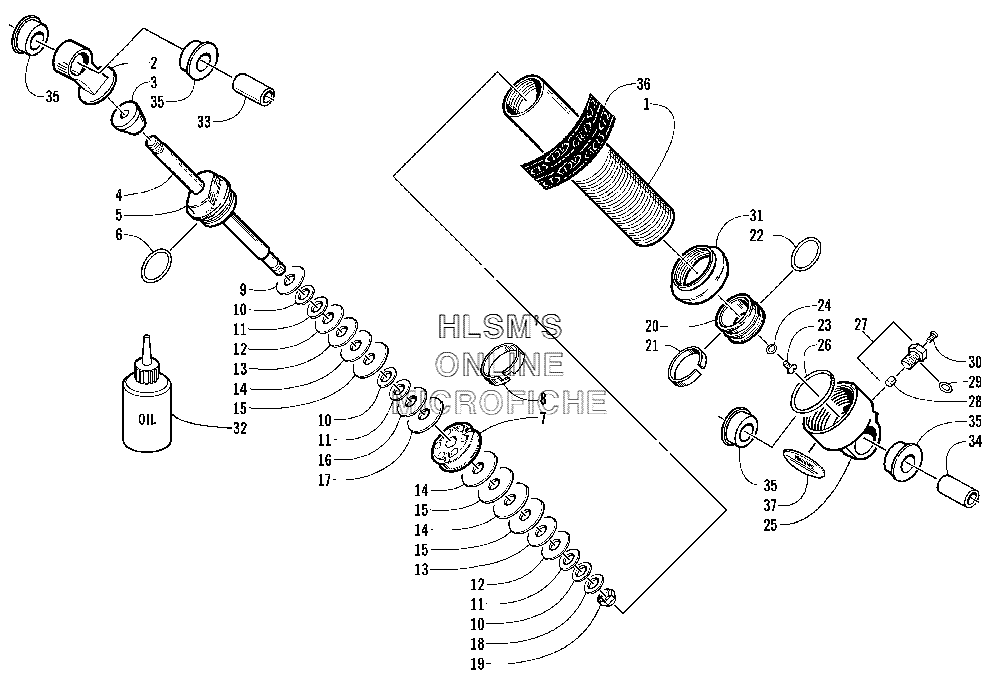

FRONT SUSPENSION SHOCK ABSORBER для Arctic Cat MOUNTAIN CAT 800 (USA) - 2001 года выпуска
-
№АртикулНазвание
-
-0703-756 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
11603-446 BODY, SHOCKBODY, SHOCK
-
21603-502 EYELETEYELET
-
30603-991 BUMPER, SHOCKBUMPER, SHOCK
-
41603-444 ROD, SHOCKROD, SHOCK
-
50704-386 CAP, SHOCK (INC. 6)CAP, SHOCK (INC. 6)
-
61604-271 O-RINGO-RING
-
70603-953 PISTON, 0.093 IN., ORIFICEPISTON, 0.093 IN., ORIFICE
-
81604-274 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
91604-272 WASHER, TOP OUTWASHER, TOP OUT
-
101603-055 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
111603-065 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
121603-075 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
131603-094 VALVE, 1.100 X 0.008 IN.VALVE, 1.100 X 0.008 IN.
-
141603-122 VALVE, 1.250 X 0.006 IN.VALVE, 1.250 X 0.006 IN.
-
151603-124 VALVE, 1.250 X 0.008 IN.VALVE, 1.250 X 0.008 IN.
-
161603-092 VALVE, 1.100 X 0.006 IN.VALVE, 1.100 X 0.006 IN.
-
171603-134 VALVE, 1.300 X 0.008 IN.VALVE, 1.300 X 0.008 IN.
-
181604-273 WASHER, BACKUPWASHER, BACKUP
-
190623-696 NUT, LOCKNUT, LOCK
-
201604-276 PISTON, FLOATINGPISTON, FLOATING
-
211604-278 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
221604-277 O-RINGO-RING
-
230623-697 SCREW, RELIEFSCREW, RELIEF
-
241604-279 O-RINGO-RING
-
251603-426 END CAP, SHOCKEND CAP, SHOCK
-
261604-280 O-RING, END CAPO-RING, END CAP
-
270704-383 VALVE, PRESSURE (INC. 28, 29)VALVE, PRESSURE (INC. 28, 29)
-
291604-284 O-RING, VALVEO-RING, VALVE
-
300624-433 SCREW, VALVESCREW, VALVE
-
310603-960 NUT, ADJUSTERNUT, ADJUSTER
-
321639-245 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
-
331603-209 SLEEVE, EYELETSLEEVE, EYELET
-
341603-219 SLEEVE, EYELETSLEEVE, EYELET
-
350603-955 BUSHING, SHOCKBUSHING, SHOCK
-
363611-691 DECAL, "ACT", SHOCKDECAL, "ACT", SHOCK
-
373611-007 DECAL, WARNINGDECAL, WARNING
