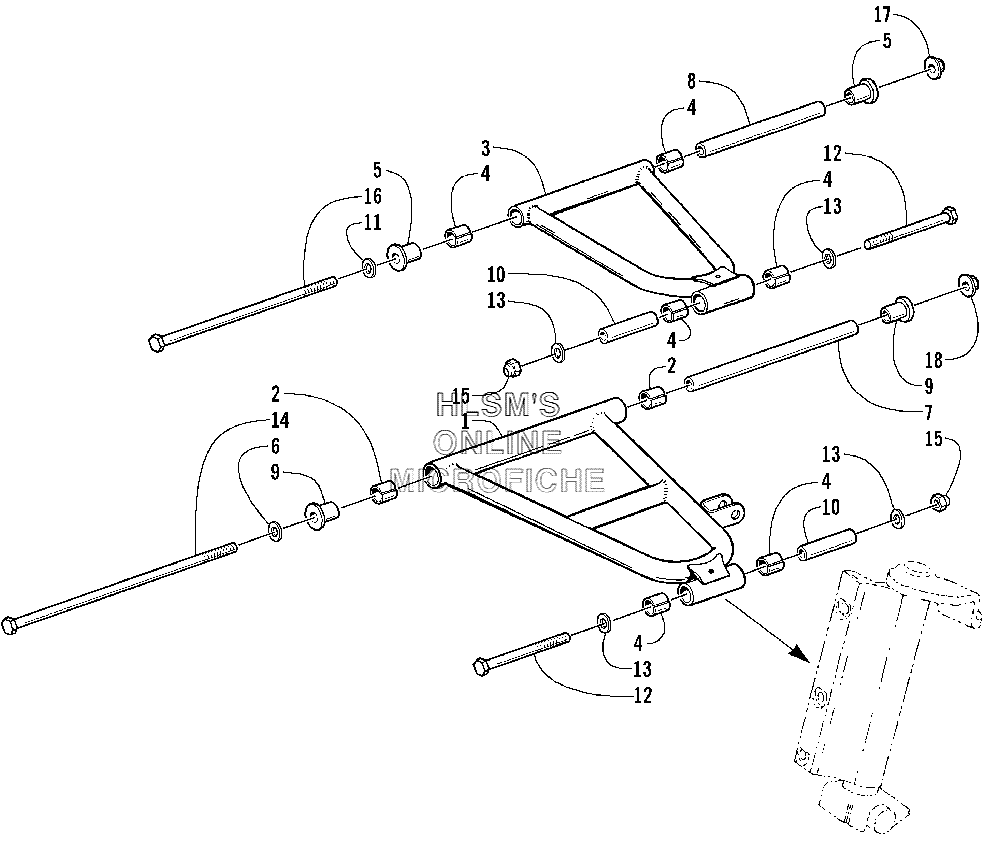

A-ARM ASSEMBLY для Arctic Cat PANTHER 370 (USA) - 2001 года выпуска
-
№АртикулНазвание
-
10703-526 ARM, LOWER - RIGHT (INC 2 AND 4)ARM, LOWER - RIGHT (INC 2 AND 4)
-
10703-527 ARM, LOWER - LEFT (INC 2 AND 4)ARM, LOWER - LEFT (INC 2 AND 4)
-
20603-158 BEARINGBEARING
-
30703-494 ARM, UPPER (INC 4)ARM, UPPER (INC 4)
-
40603-083 BEARINGBEARING
-
51603-244 AXLE, POWDER METALAXLE, POWDER METAL
-
60623-663 WASHERWASHER
-
70603-693 TUBE, AXLETUBE, AXLE
-
80603-692 TUBE, AXLETUBE, AXLE
-
91603-397 AXLE, NON-SERRATEDAXLE, NON-SERRATED
-
100603-830 AXLE, SPINDLE MOUNTAXLE, SPINDLE MOUNT
-
110623-664 WASHERWASHER
-
120623-657 SCREW, CAPSCREW, CAP
-
138050-277 WASHERWASHER
-
140623-508 SCREW, CAPSCREW, CAP
-
158040-486 NUT, LOCKNUT, LOCK
-
160623-509 SCREW, CAPSCREW, CAP
-
170623-661 NUT, LOCKNUT, LOCK
-
180623-660 NUT, LOCKNUT, LOCK
