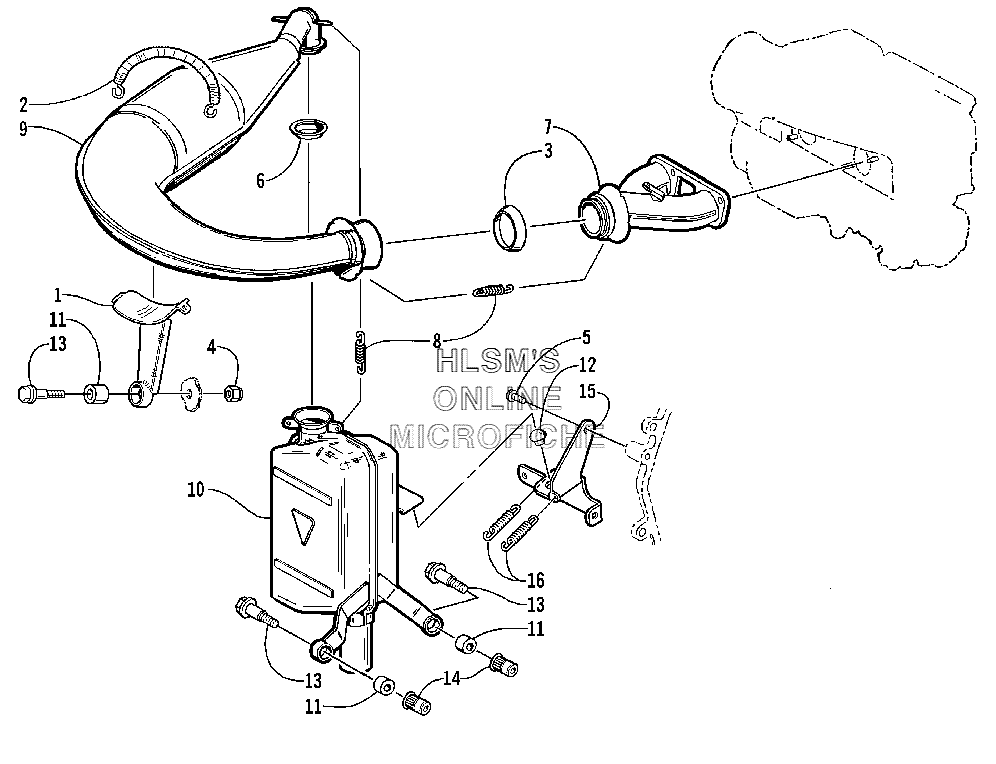

EXHAUST ASSEMBLY для Arctic Cat PANTHER 440 (ESR) - 2001 года выпуска
-
№АртикулНазвание
-
10712-176 BRACKET, SUPPORT - EXPANSION CHAMBERBRACKET, SUPPORT - EXPANSION CHAMBER
-
20612-027 SPRING, EXTENSIONSPRING, EXTENSION
-
30612-131 GASKET, EXHAUSTGASKET, EXHAUST
-
48040-366 NUT, LOCKNUT, LOCK
-
50623-765 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
60612-188 GASKET, EXHAUSTGASKET, EXHAUST
-
70712-375 MANIFOLD, EXHAUSTMANIFOLD, EXHAUST
-
80123-321 SPRING, EXTENSIONSPRING, EXTENSION
-
90712-391 CHAMBER, EXPANSION - ASSEMBLYCHAMBER, EXPANSION - ASSEMBLY
-
100712-436 RESONATORRESONATOR
-
110612-107 BUSHING, RESONATOR - RUBBERBUSHING, RESONATOR - RUBBER
-
120612-111 BUMPER, RUBBER - MOLDEDBUMPER, RUBBER - MOLDED
-
130623-856 SCREW, MACHINE - HEX SHOULDERSCREW, MACHINE - HEX SHOULDER
-
140623-582 INSERTINSERT
-
151612-332 BRACKET, MOUNTING - RESONATORBRACKET, MOUNTING - RESONATOR
-
160612-471 SPRING, EXHAUSTSPRING, EXHAUST
